Air Cleaner Housing: Service and Repair

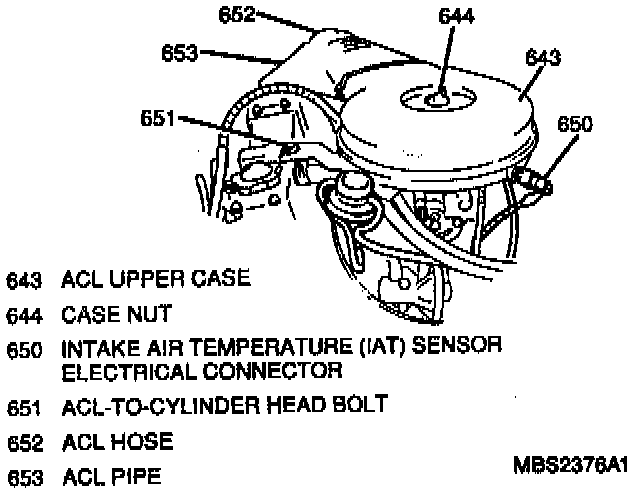

REMOVAL1. Negative (-) battery cable.
2. Intake air temperature sensor electrical connector.
3. Idle speed control solenoid valve hose from ail cleaner lower case.
4. PCV valve hose from air cleaner lower case.
5. Air cleaner assembly-to-cylinder head bolt.
6. Wing nut and air cleaner assembly with air cleaner hose from throttle body.
7. Air cleaner hose from air cleaner pipe.

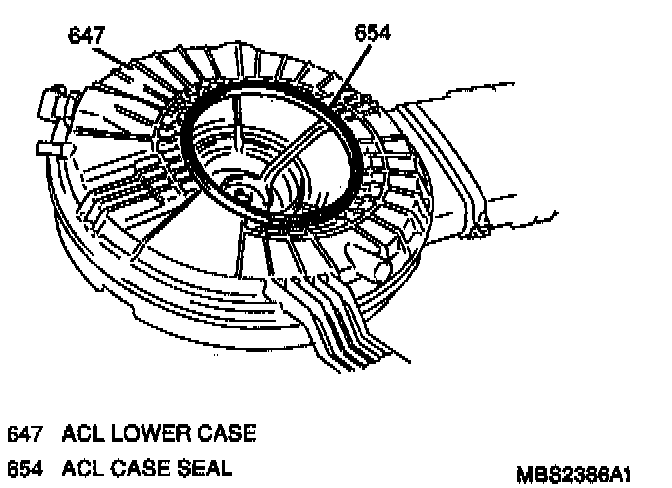

CAUTION: Before installing, make sure that air cleaner case seal is securely installed to air cleaner lower case.
INSTALLATION
1. Air cleaner hose to air cleaner pipe.
2. Air cleaner assembly to throttle body; secure with wing nut.
3. Air cleaner assembly-to-cylinder head bolt. Tighten air cleaner assembly-to-cylinder head bolts to 10 Nm (89 inch lbs.).
4. PCV valve hose to air cleaner lower case.
5. Idle speed control solenoid valve hose to air cleaner lower case.
6. Intake air temperature sensor electrical connector.
7. Negative (-) battery cable.
