Initial Inspection and Diagnostic Overview

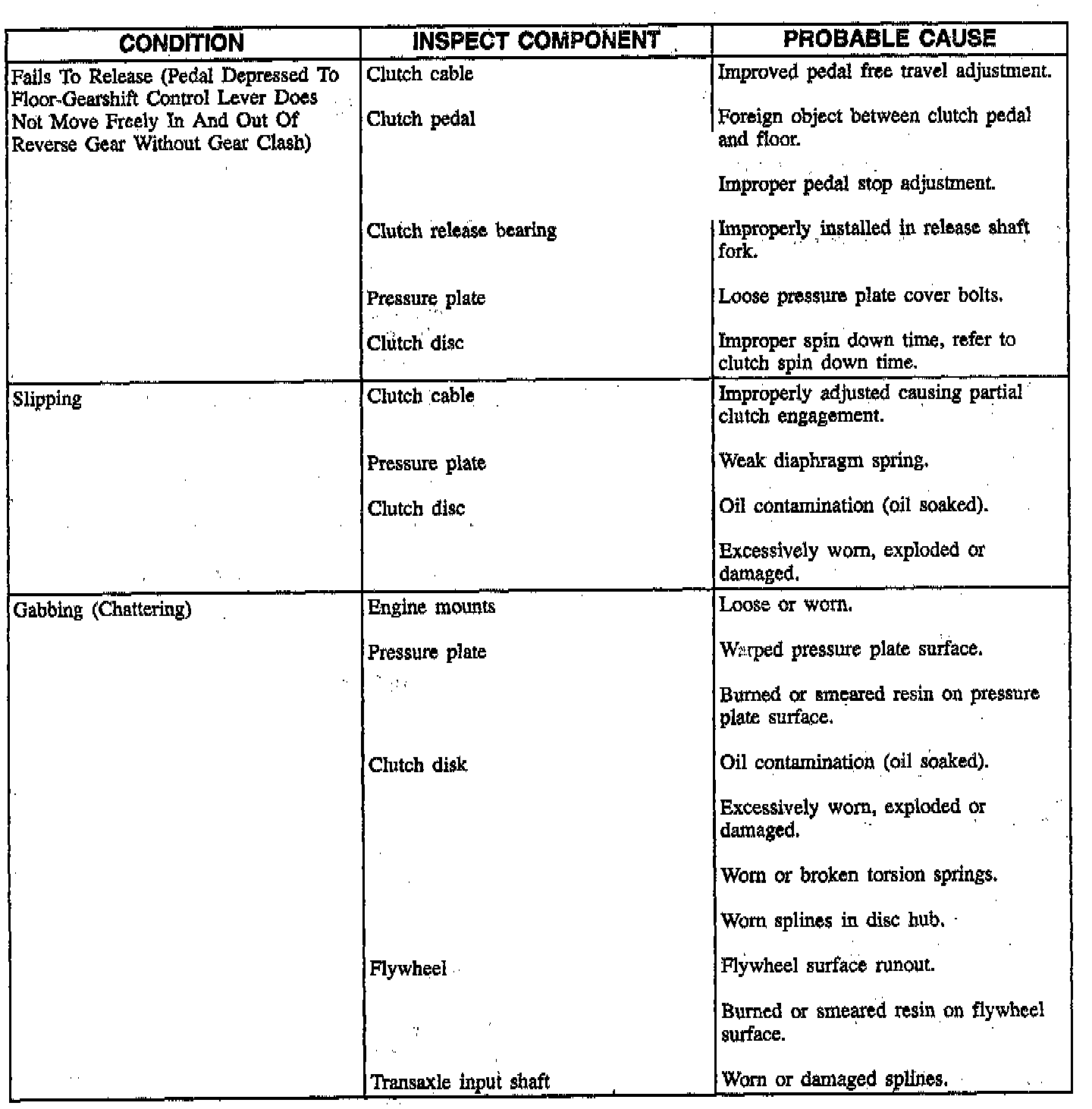

Clutch Diagnosis (Part 1 Of 2):

Clutch Diagnosis (Part 2 Of 2):

Before attempting to repair the clutch, transaxle or related components for any reason other than an obvious fault, the problem and probable cause should be identified. Most clutch and manual transaxle problems are revealed by shifting difficulties such as high shift effort, gear clash or gear grinding. When any of-these problems occur, a careful analysis of these difficulties should be made. Use Clutch Diagnosis to assist in proper diagnosis of clutch problems.
