Design and Clearance Specifications
Design and Clearance SpecificationsService Parts Identification Label:
Reverse Gearshift Lever to Idler Shaft Clearance 5 mm (0.20 in.)
Synchronizer Ring-To-Gear Clearance:
Minimum 1.0-1.4 mm (0.039-0.055 in)
High Speed Gearshift Fork-To-High Speed Synchronizer Sleeve Clearance:
Maximum 1.0 mm (0.039 in.)
Low Speed Gearshift Fork-To-Low Speed Synchronizer Sleeve Clearance:
Maximum 1.0 mm (0.039 in.)
Differential Side Gear End Play:
Left (Standard) 0.05-0.33 mm (0.002-0.013 in.)
Left (Maximum) 0.05 mm (0.002 in.)
Right (Standard) 0.05-0.33 mm (0.002-0.013 in.)
Right (Maximum) 0.05 mm (0.002 in.)
Low Speed Locating Spring:
Standard Length 26.1 mm (1.028 in.)
Service Limit 25.0 mm (0.984 in.)
High Speed Locating Spring:
Standard Length 40.1 mm (1.597 in.)
Service Limit 39.0 mm (1.535 in.)
5th Speed Locating Spring:
Standard Length 26.1 mm (1.028 in.)
Service Limit 25.0 mm (0.984 in.)
Bearing Set Shim Clearance 0.08-0.12 mm (0.0032-0.0047 in.)

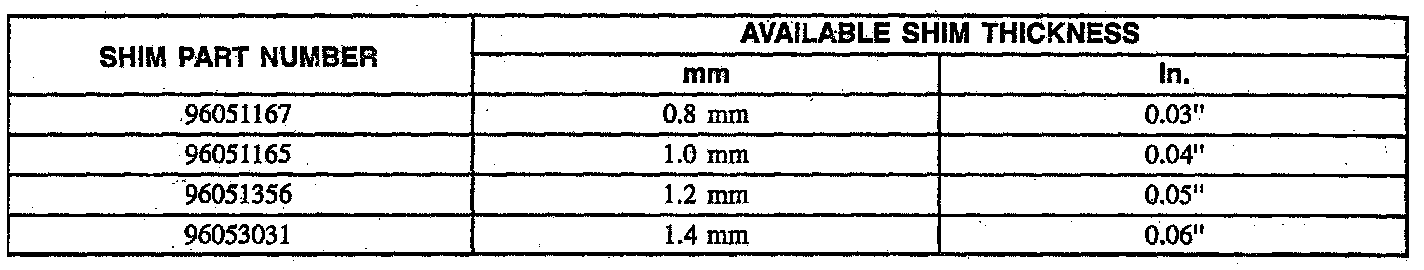

Gear Shift Lever Shim Table:
Manual Transmission Identification Number Location:
