Cruise Control Module: Service and Repair

REMOVE OR DISCONNECT
1. Negative (-) battery cable.
2. Center console from vehicle.

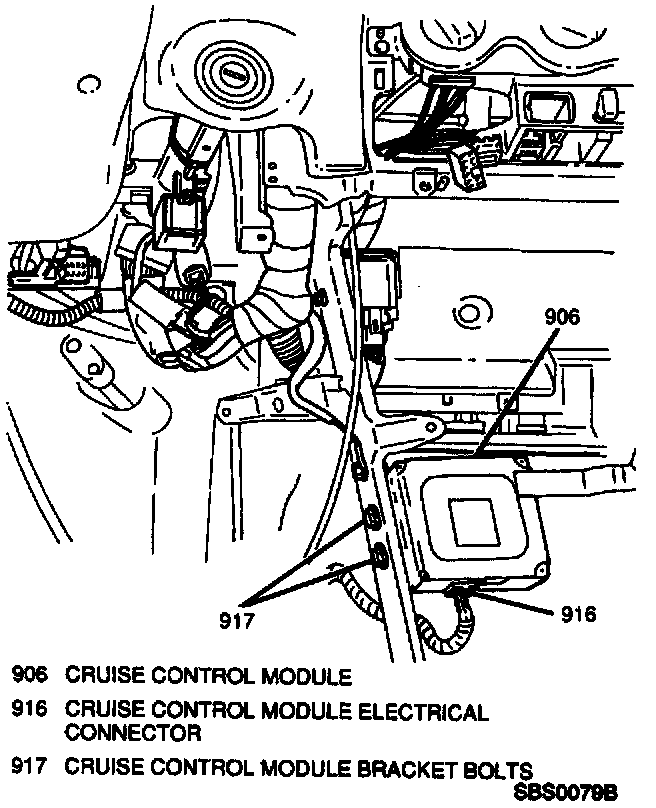

Cruise Control Module:

3. Two bolts and cruise control module from I/P.

Cruise Control Module:

4. Cruise control module electrical connector.

INSTALL OR CONNECT
1. Cruise control module electrical connector.
2. Cruise control module to I/P; secure with two bolts.
Tighten
^ Cruise control module bolts to 10 N.m (89 lb. in.).
3. Center console into vehicle; secure with two screws.
4. Negative (-) battery cable.
