Engine Compartment Harness

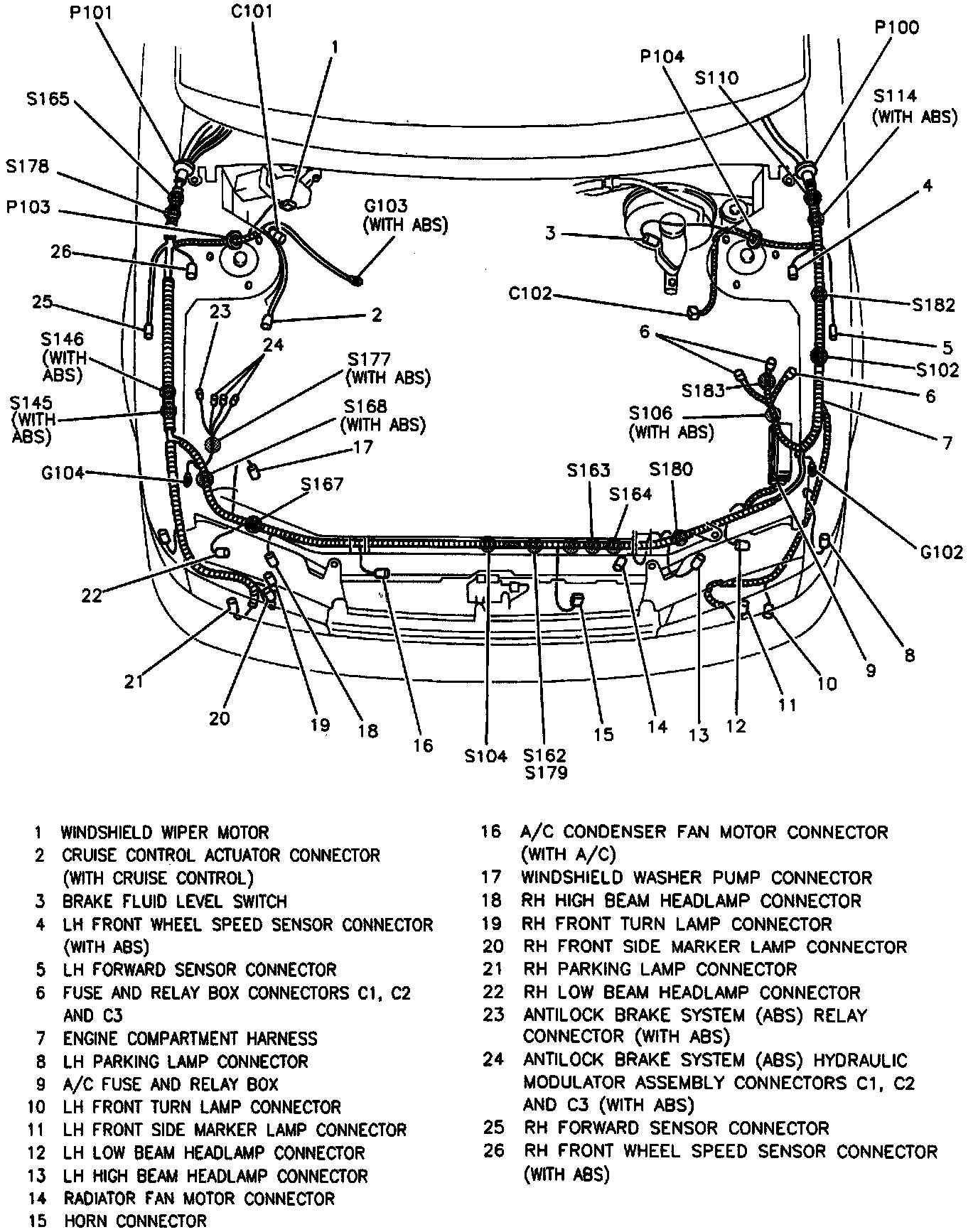

RH Front Engine Compartment:




Engine Compartment Wiring:




LH Cowl Wiring:




LH Kick Panel Wiring:




RH Kick Panel Wiring:
