Data Link Connector

Data Link Connector (DLC):

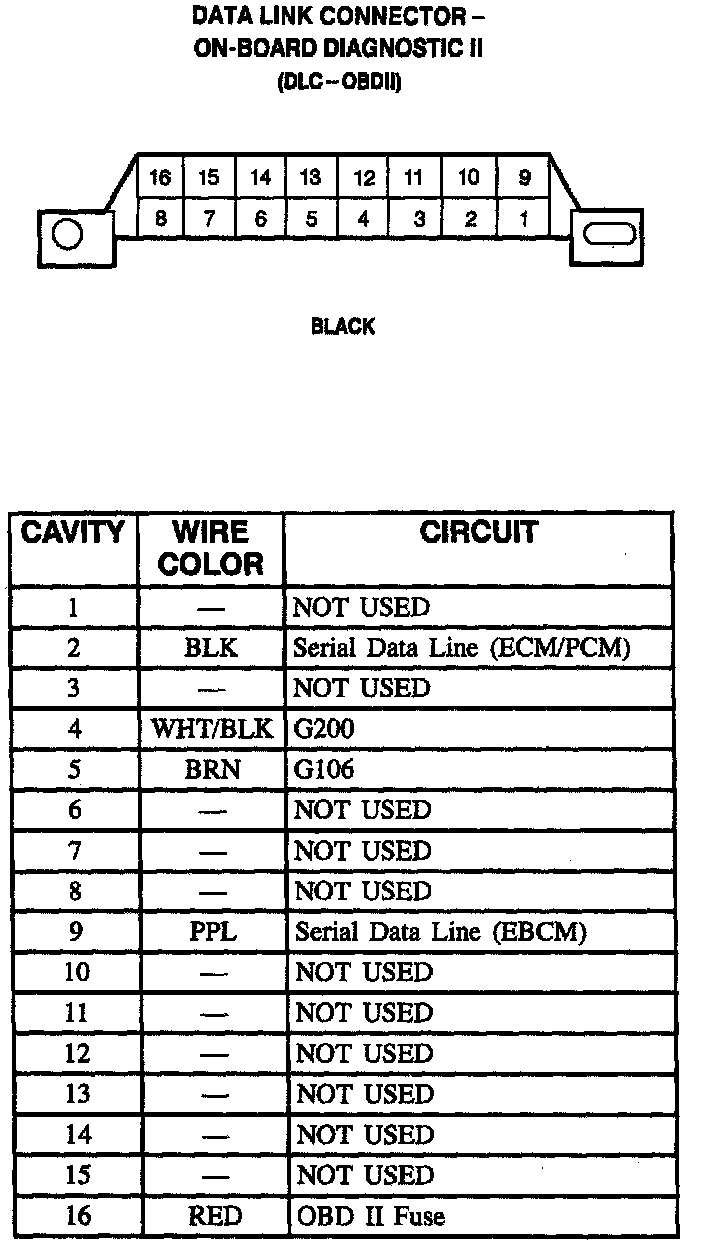

Data Link Connector - On-Board Diagnostic II (DLC-OBDII):
