Power Window/Door Lock Switch Connector, LH Front
Power Window/Door Lock Switch Connector, LH Front

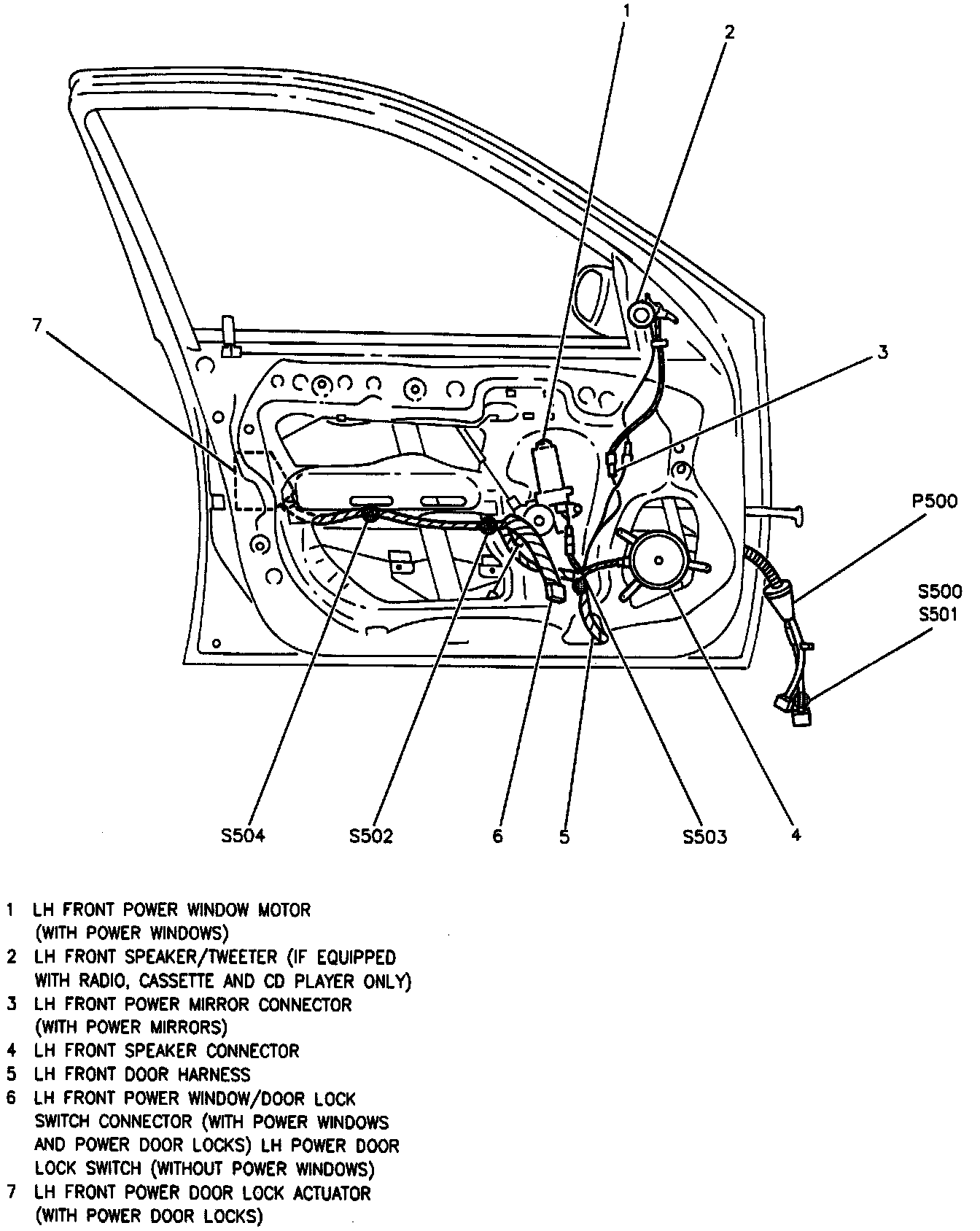

LH Front Door Wiring:
