SIR Wiring Diagrams

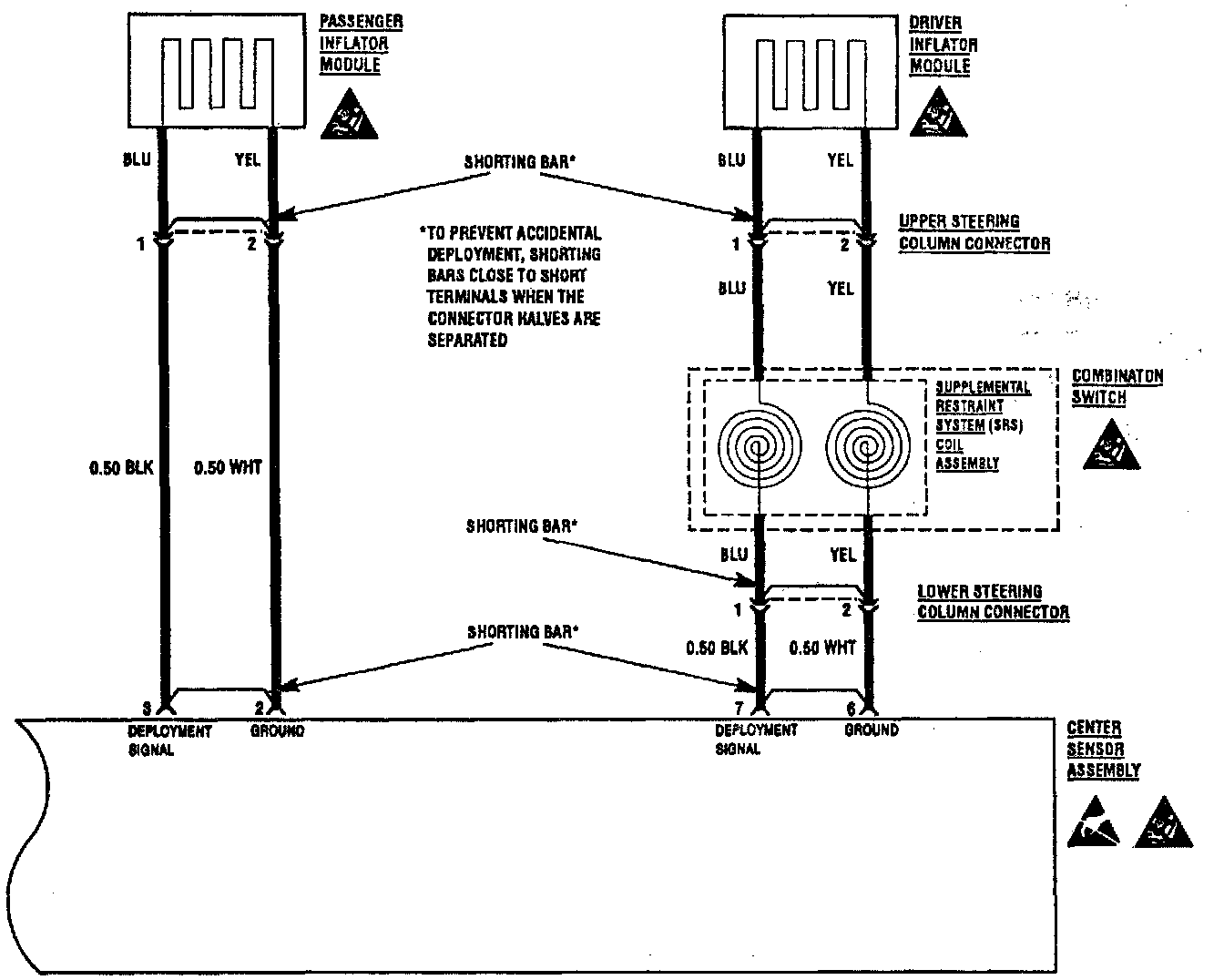

Supplemental Restraint System (Part 1 Of 2):

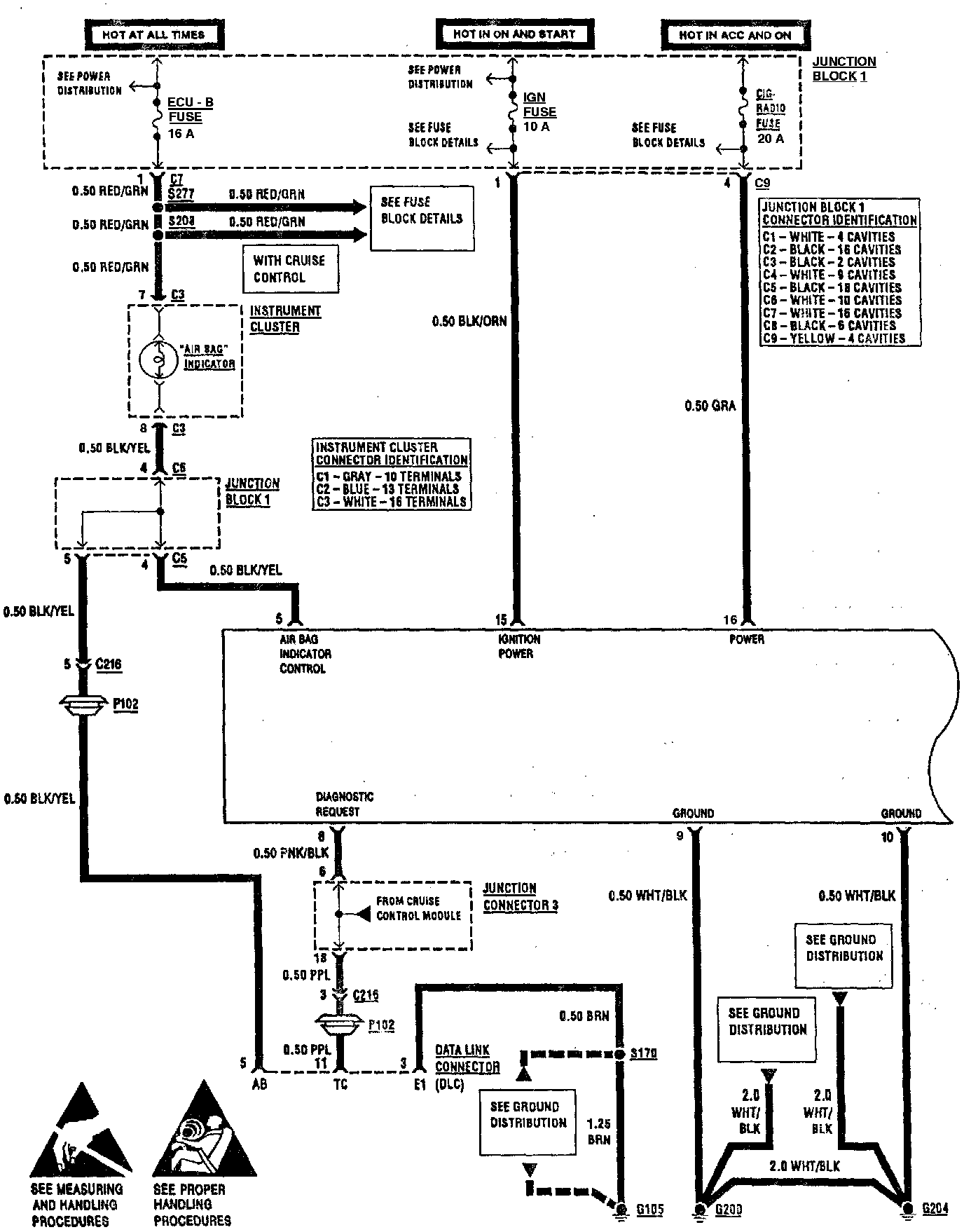

Supplemental Restraint System (Part 2 Of 2):
