Schematic Diagrams

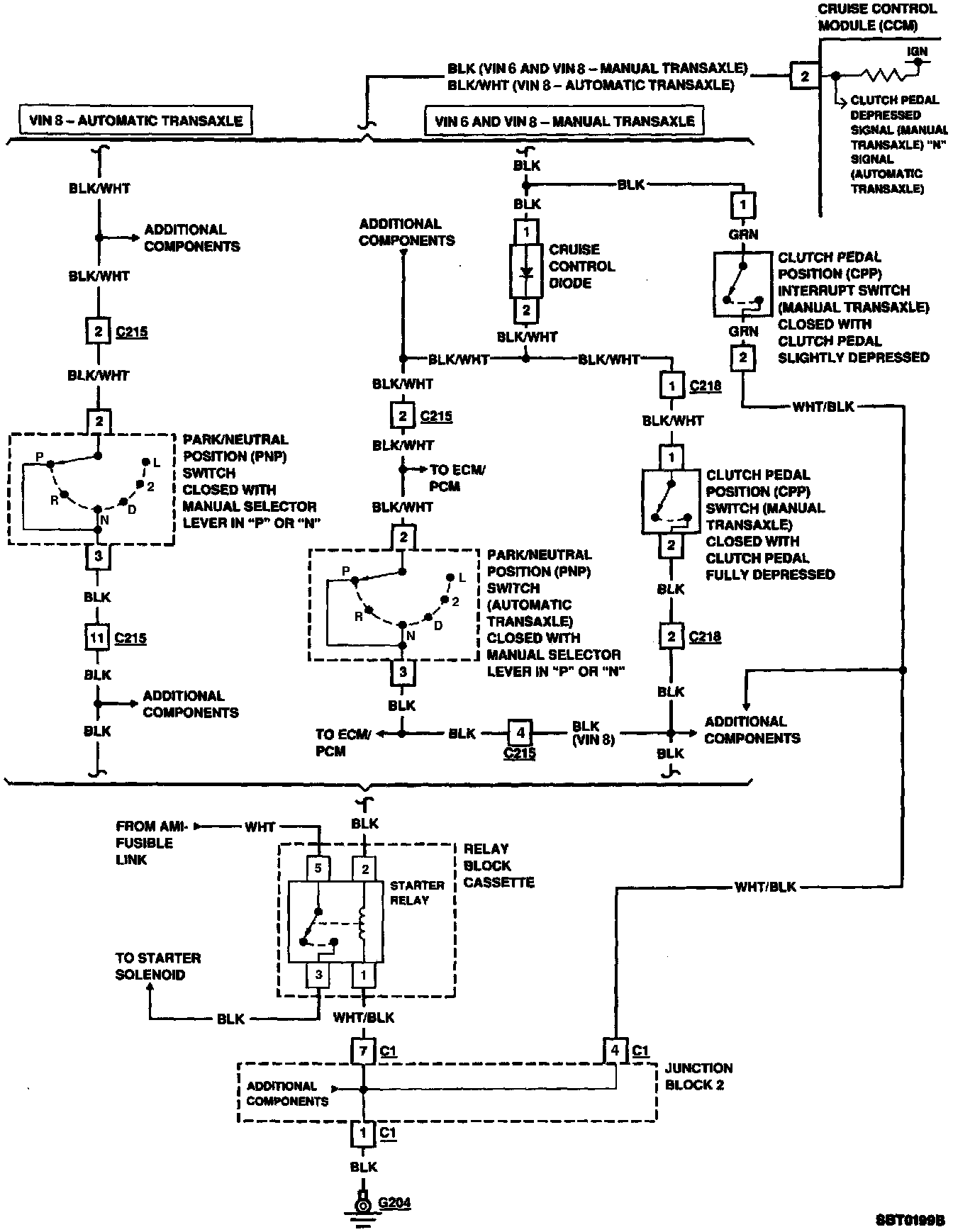

Wiring Diagram Part (1 Of 5):

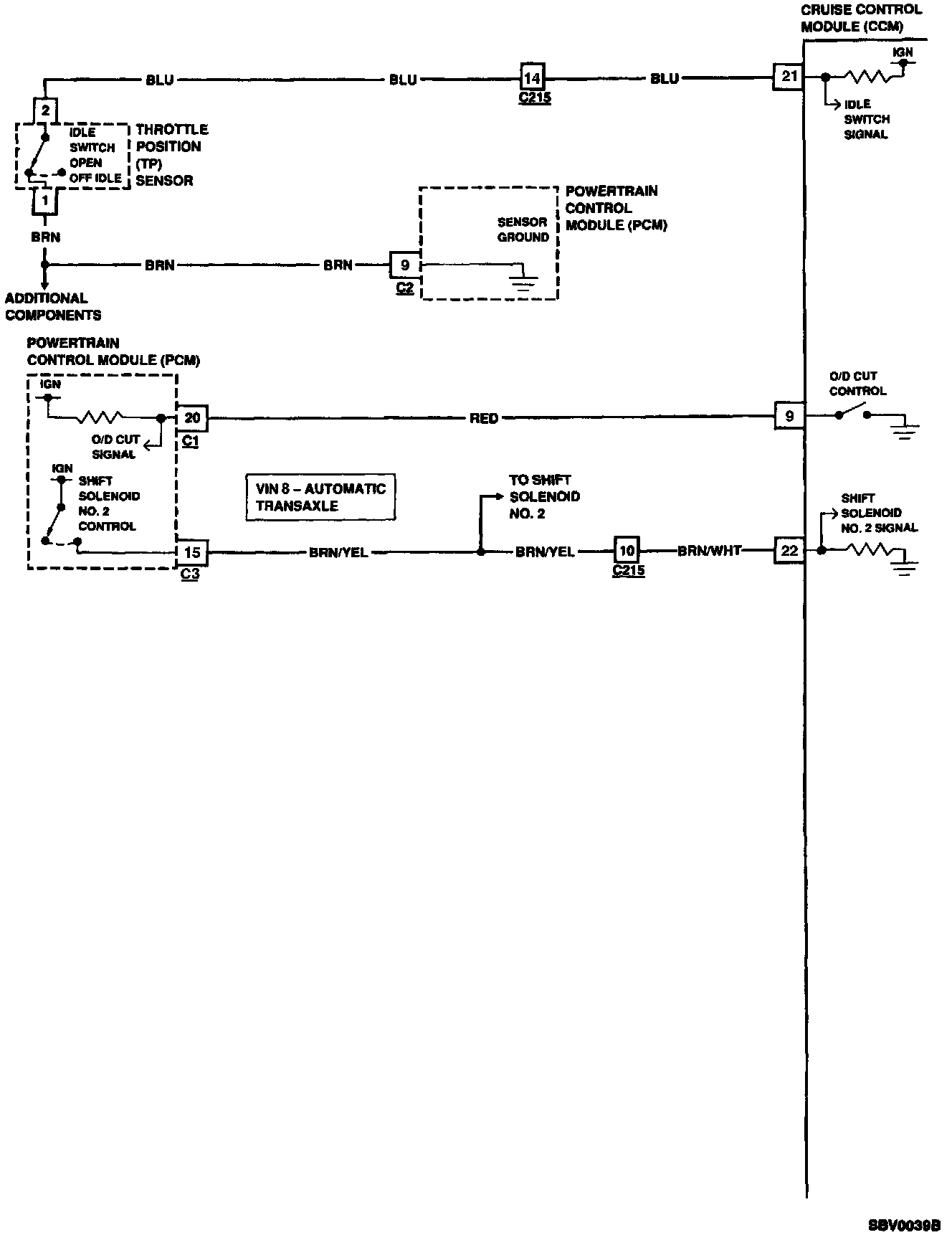

Wiring Diagram Part (2 Of 5):

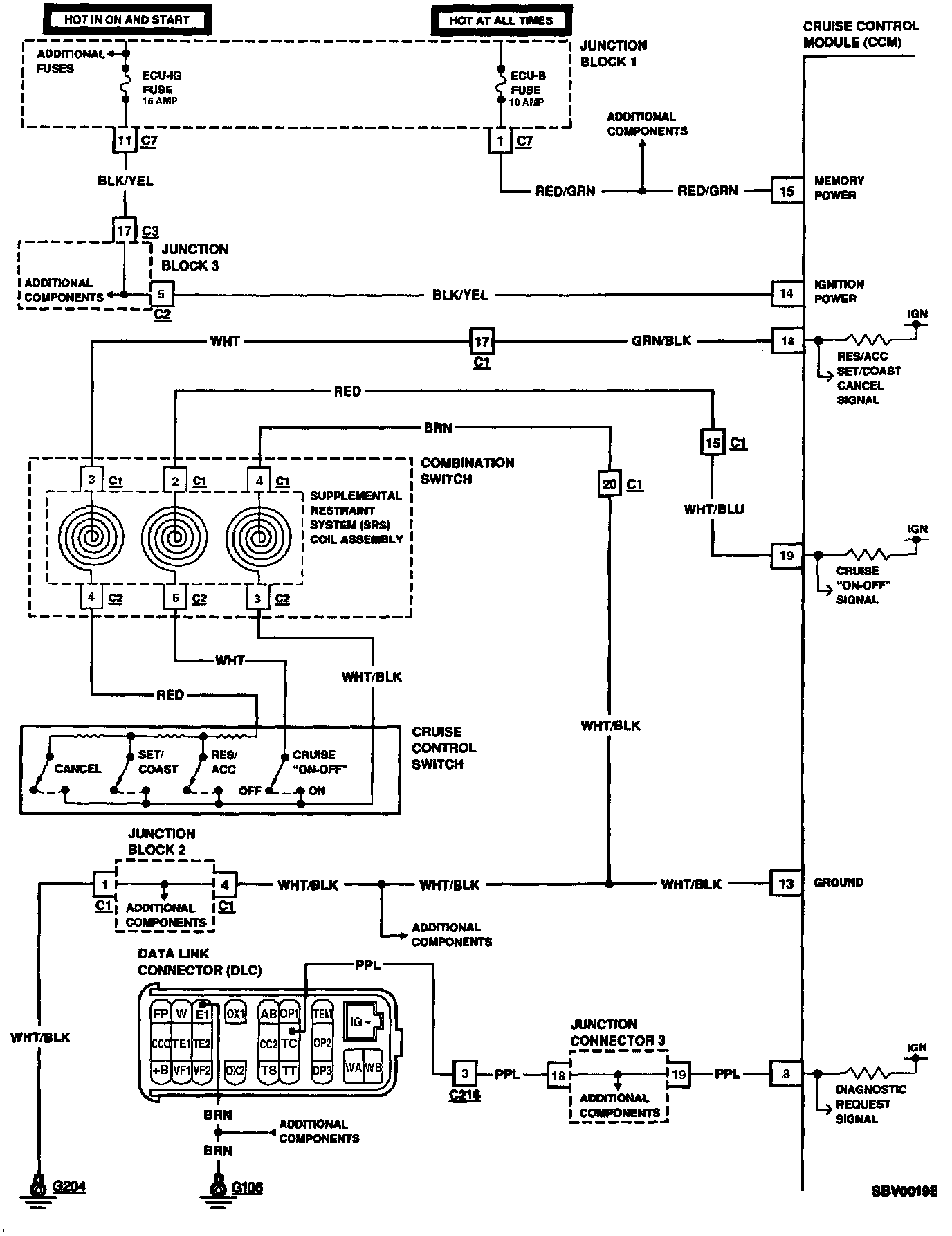

Wiring Diagram Part (3 Of 5):




Wiring Diagram Part (4 Of 5):




Wiring Diagram Part (5 Of 5):
