Home
>>
Geo
>>
1997
>>
Prizm L4-097 1.6L DOHC VIN 6 MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radiator Cooling Fan Motor
>>
With Air Conditioning
With Air Conditioning

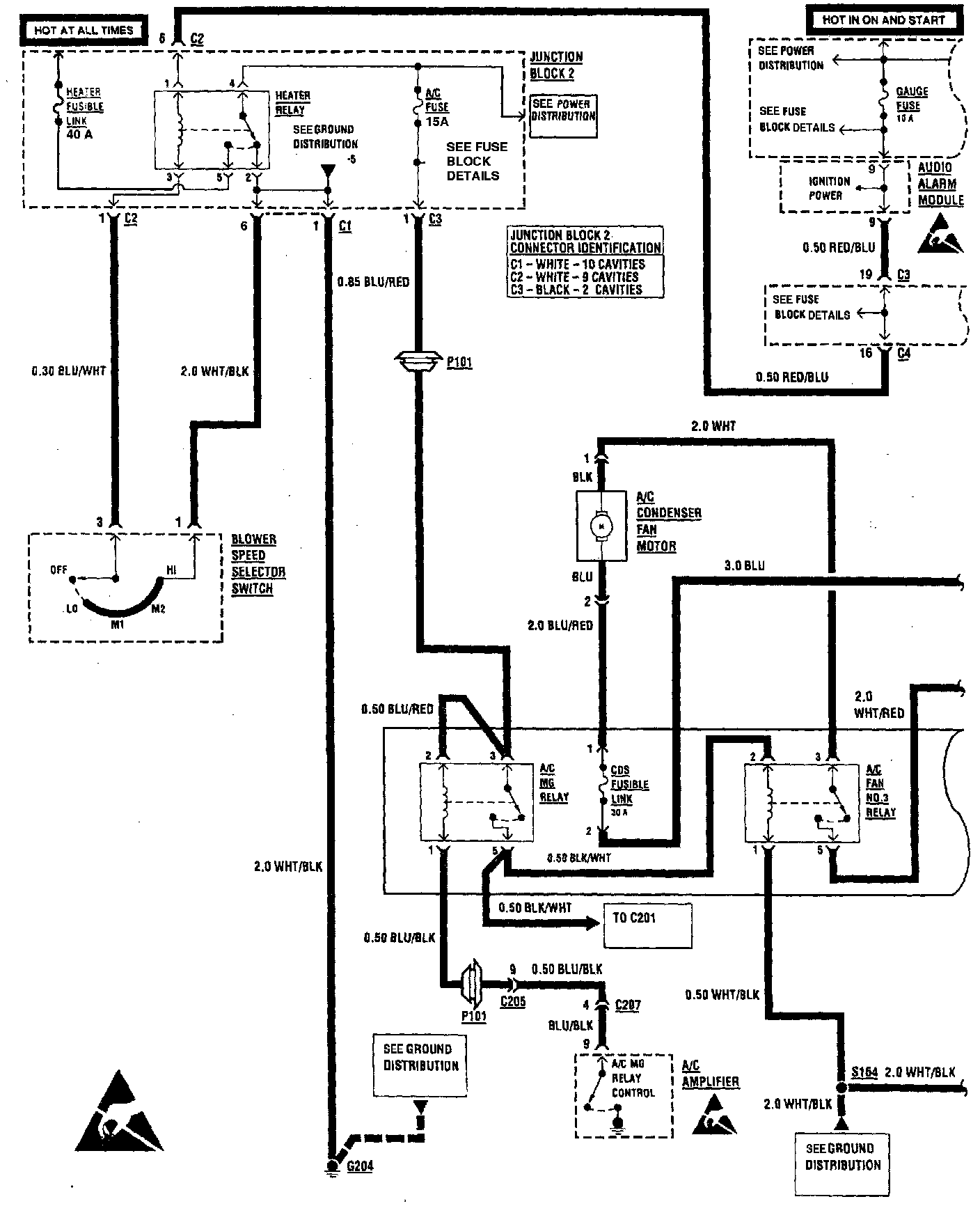

Coolant Fans: With Air Conditioning (Part 1 Of 2):
Coolant Fans: With Air Conditioning (Part 2 Of 2):
