Home >> Geo >> 1997 >> Prizm L4-097 1.6L DOHC VIN 6 MFI >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Power Steering Pump

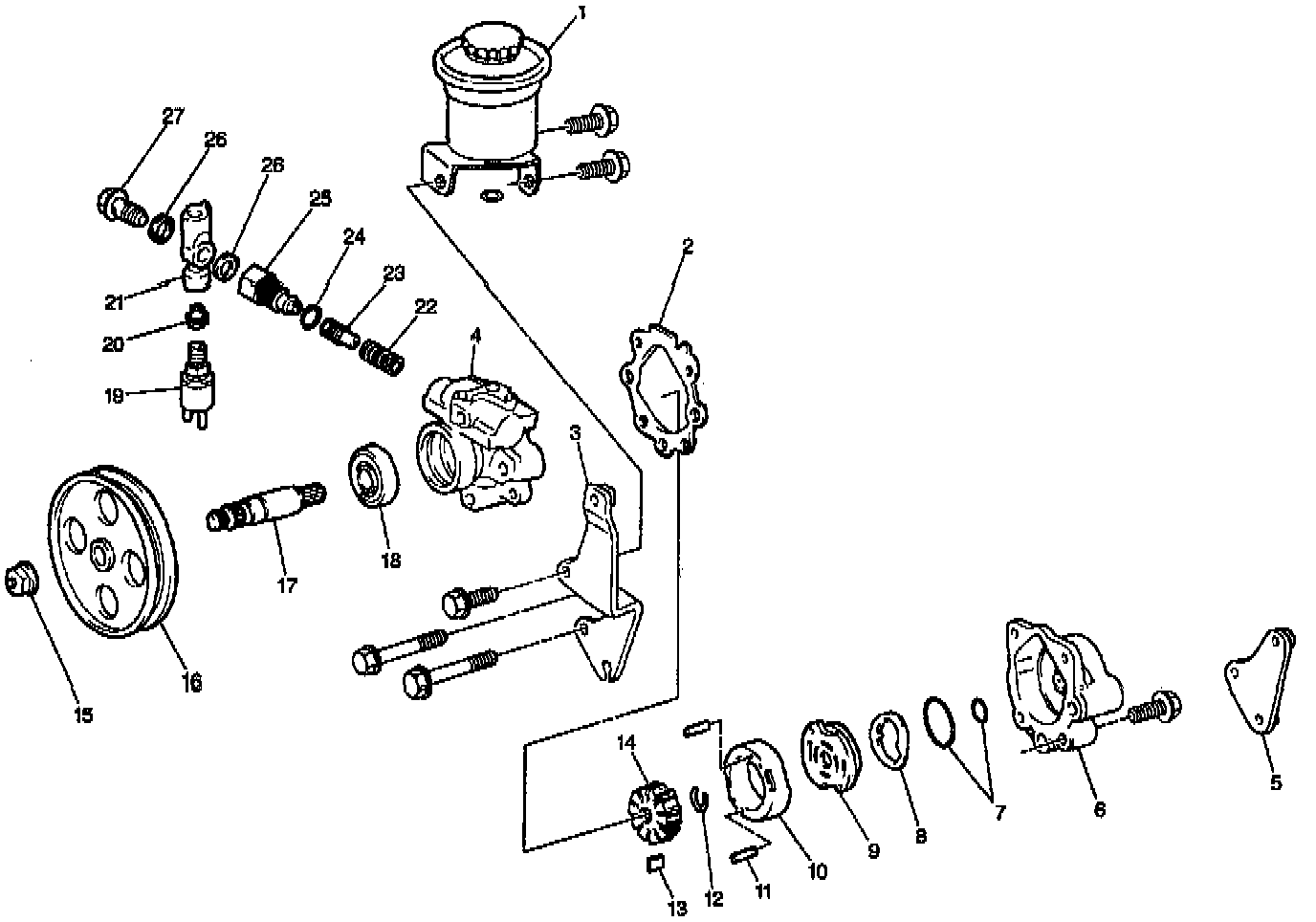

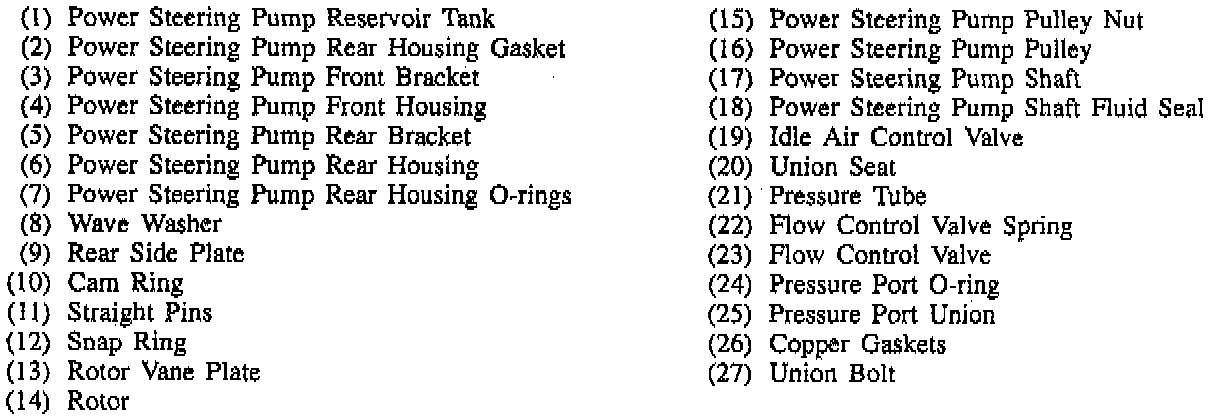

Power Steering Pump

Part 1 Of 2:



Part 2 Of 2:
