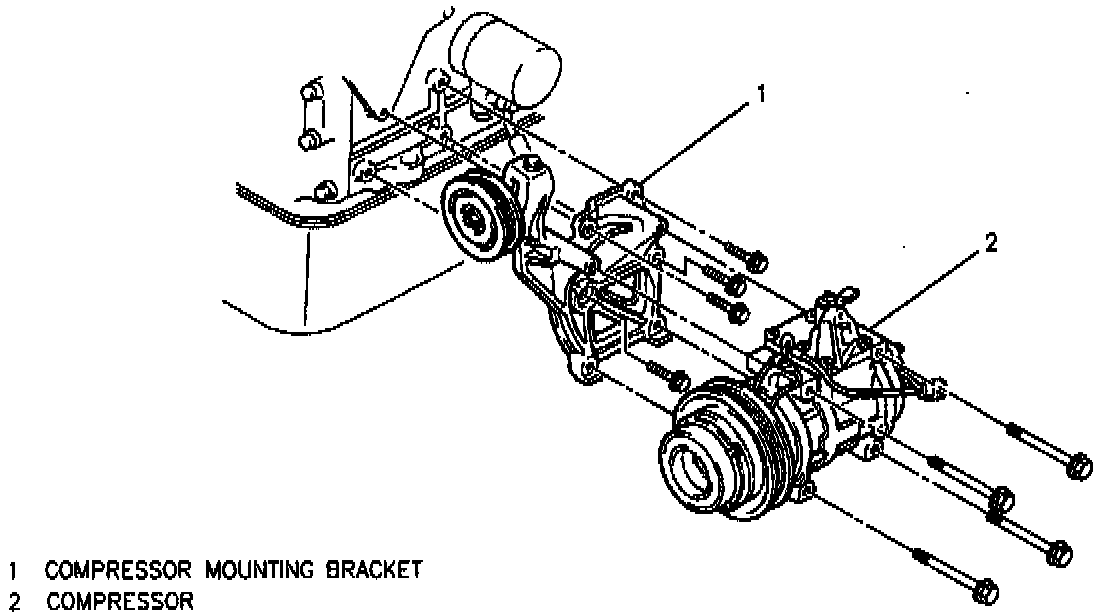

Compressor Mounting Brackets

Description:

Remove or Disconnect
1. Compressor from vehicle.
2. Mounting bolts and compressor mounting bracket from vehicle.

Install or Connect
1. Compressor mounting bracket to vehicle; secure with bolts. Tighten Compressor mounting bracket bolts to 35 Nm (26 lb. it.).
2. Compressor to vehicle.
