Instrument Panel Cluster Printed Circuit Replacement

Description:

Remove or Disconnect
1. Negative (-) battery cable.

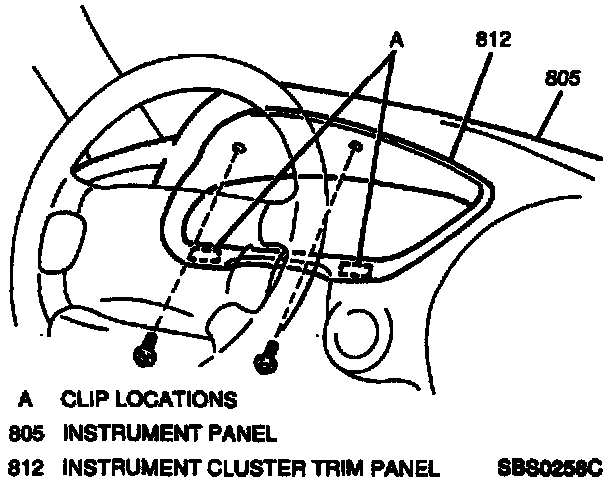

2. Two screws and instrument cluster trim panel, disengaging two lower clips.
3. Four screws and instrument cluster assembly, disconnecting three electrical connectors.
4. All indicator and illumination bulb sockets.

IMPORTANT
^ Note location of bulb sockets for proper installation.

5. All screws and washers from back of instrument cluster.
6. Gently lift printed circuit from back of instrument cluster.

Install or Connect
1. Printed circuit to back of instrument cluster; secure with screws and washers.
2. All indicator and illumination bulb sockets to back of instrument cluster.
3. Instrument cluster assembly, connecting three electrical connectors; secure with four screws.
4. Instrument cluster trim panel, engaging two lower clips; secure with two screws.
5. Negative (-) battery cable. Refer to Battery Replacement in Battery.
