Operation CHARM: Car repair manuals for everyone.
Home >> Geo >> 1997 >> Prizm L4-097 1.6L DOHC VIN 6 MFI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Idle-Up Signals

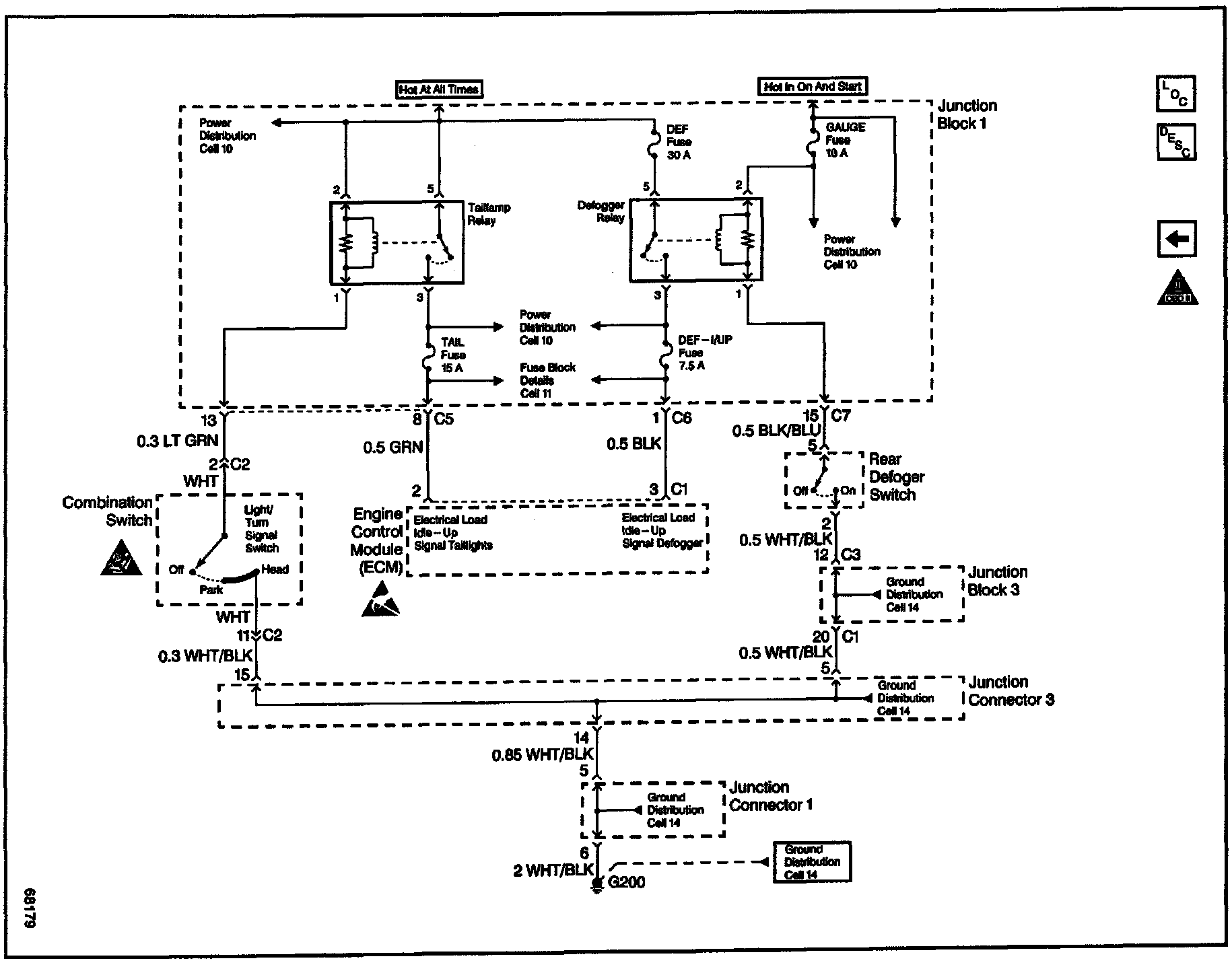

Idle-Up Signals
