Operation CHARM
: Car repair manuals for everyone.
Home
>>
Geo
>>
1997
>>
Prizm L4-097 1.6L DOHC VIN 6 MFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Automatic Transaxle Controls (Part 1 Of 3):

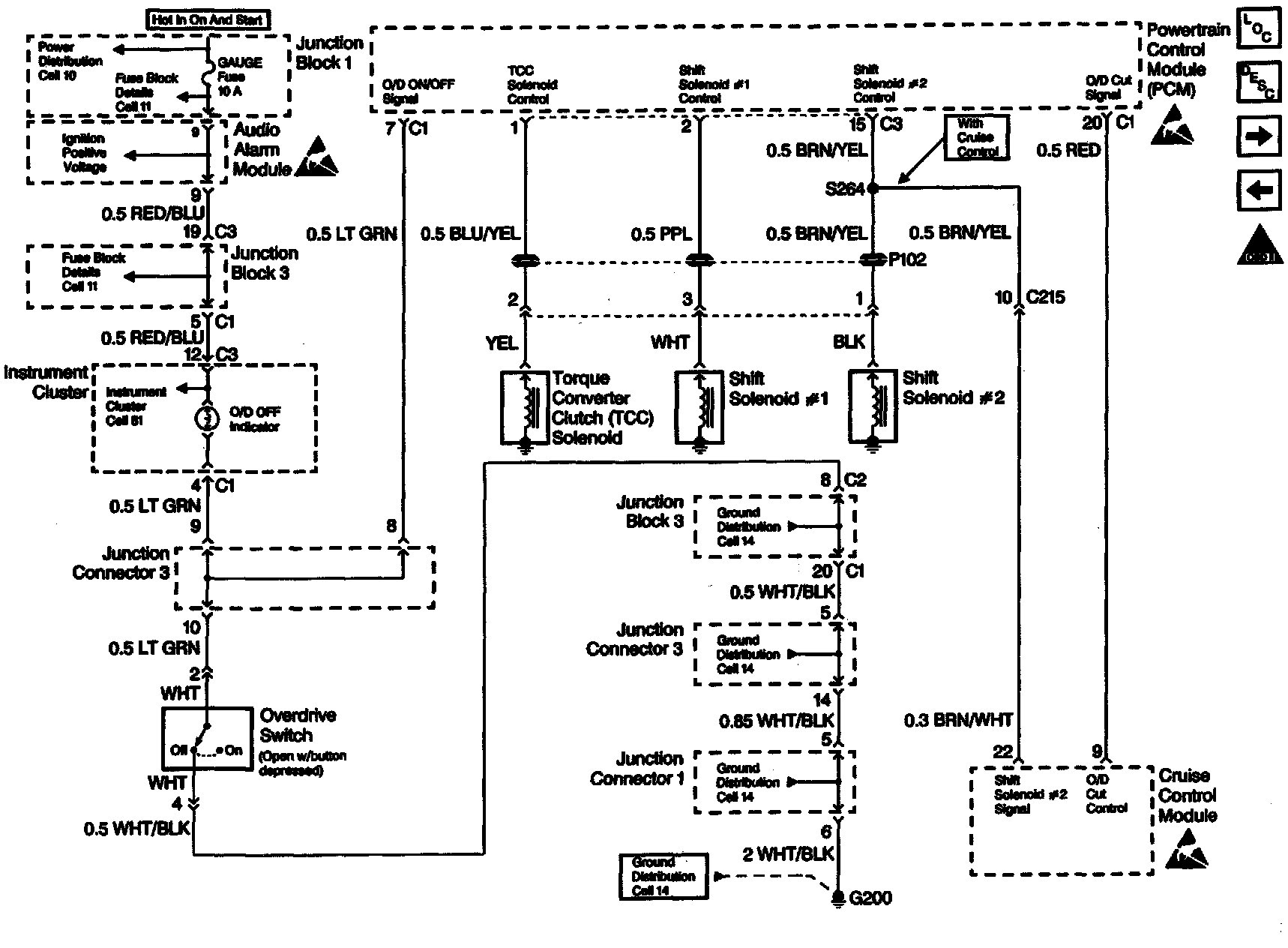

Automatic Transaxle Controls (Part 2 Of 3):

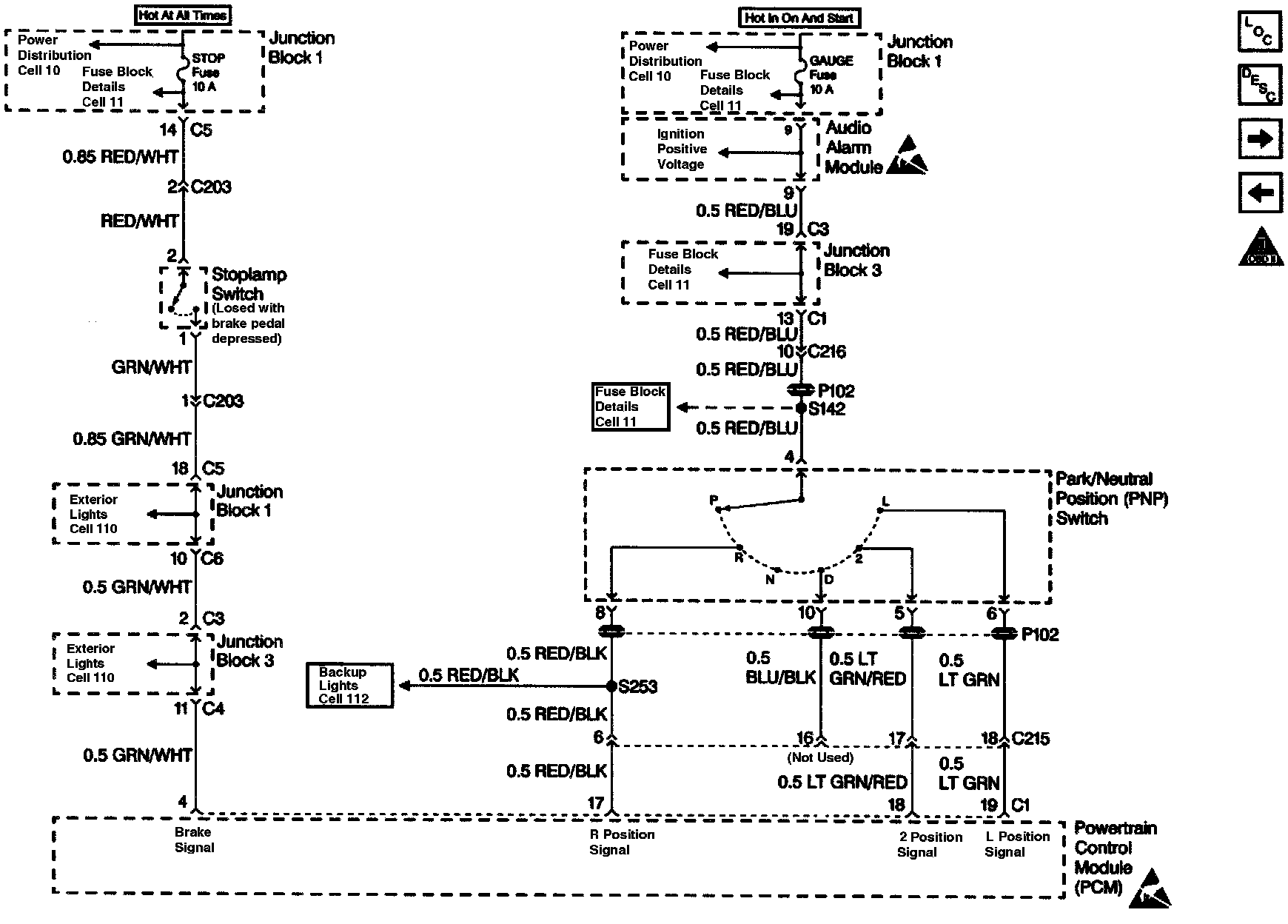

Automatic Transaxle Controls (Part 3 Of 3):
