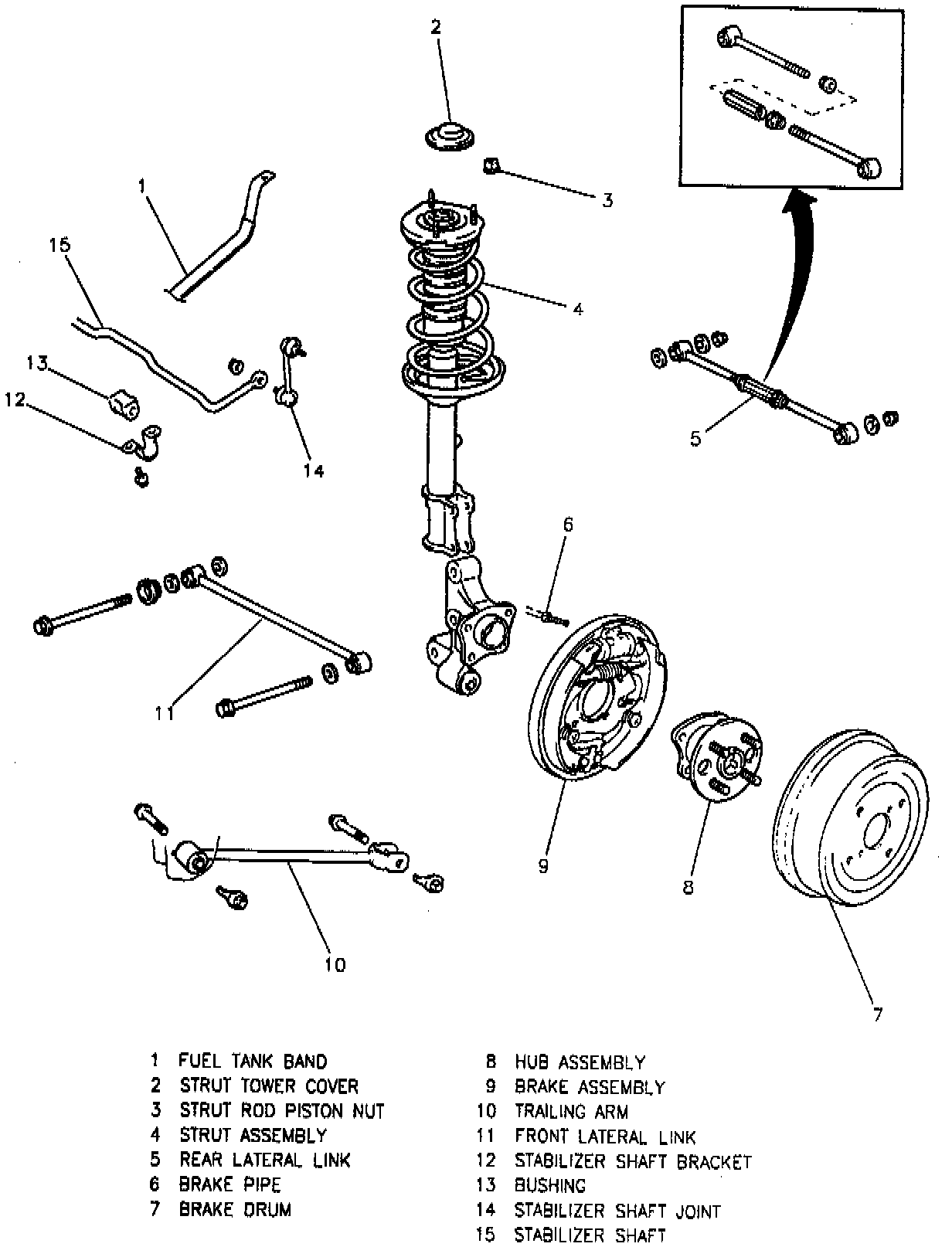

Rear Suspension

The independent rear suspension features a MacPherson strut, as does the front suspension. The upper end of the strut is anchored to the vehicle body by a strut support. The strut and strut support are isolated by a rubber mount.

The lower end of the rear suspension knuckle is attached to a trailing arm and two lateral links. The rear suspension knuckle mounts both the rear hub and drum assembly.
