Wiper Motor: Service and Repair

Description:

Remove or Disconnect
1. Negative (-) battery cable.

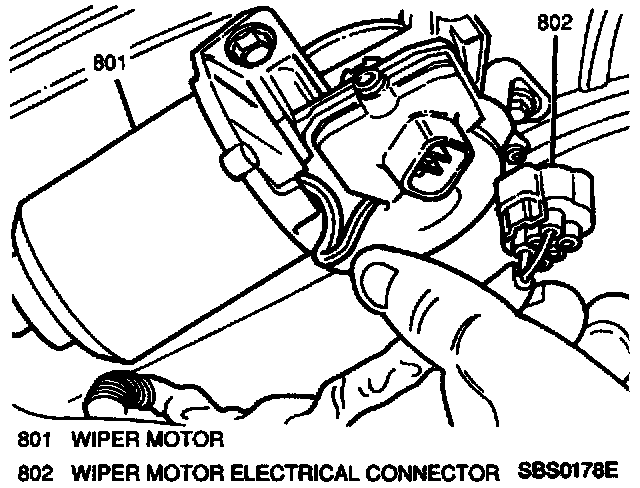

2. Wiper motor electrical connector.
3. Four bolts and wiper motor from bulkhead.

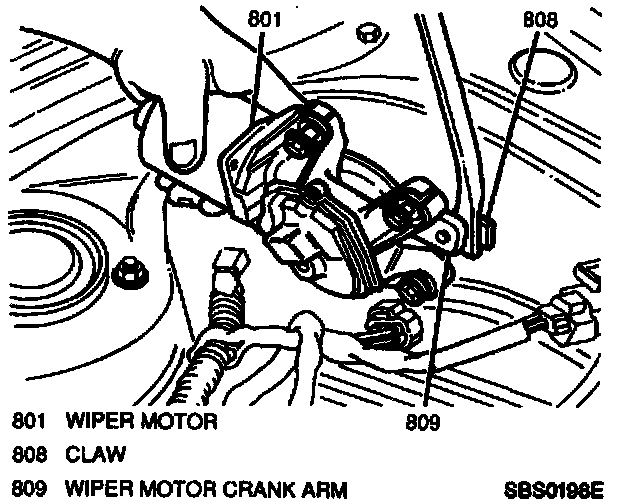

4. Connect the claw of the wiper linkage to bulkhead.
5. Gently pry wiper linkage from wiper motor crank arm.

IMPORTANT
^ The wiper motor crank arm is not serviced separately and should not be disconnected from the wiper motor. The crank arm is positioned on the wiper motor to allow the wiper arms to return to their normal park position.

Install or Connect
1. Wiper linkage to wiper motor crank arm.
2. Wiper motor to bulkhead; secure with four bolts.

Tighten
^ Wiper motor bolts to 20 N.m (15 lb.ft.).

3. Wiper motor electrical connector.
4. Negative (-) battery cable.
