Backup Lamp: Service and Repair

Description:

Remove or Disconnect

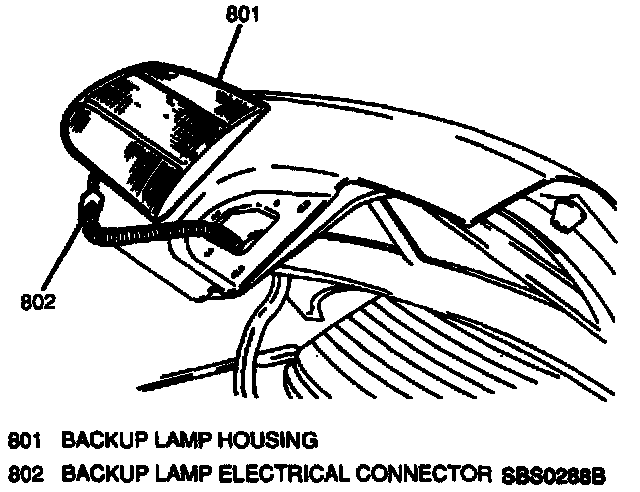

1. Negative (-) battery cable.
2. Open rear compartment lid.
3. Three nuts securing backup lamp housing.
4. Backup lamp housing from rear compartment lid, disconnecting clip on housing and backup lamp electrical connector.
5. One screw and lamp bulb socket from housing (if required).
6. Backup lamp bulb from lamp bulb socket (if required).

Install or Connect
1. Backup lamp bulb to lamp bulb socket (if removed).
2. Lamp bulb socket to housing; secure with one screw (if removed).
3. Backup lamp electrical connector.
4. Backup lamp housing to rear deck, engaging clip to secure.
5. Three nuts to back side of backup lamp housing.

Tighten
^ Backup lamp housing nuts to 10 N.m (89 lb.in.).

6. Close rear compartment lid.
7. Negative (-) battery cable. Refer to Battery Replacement in Battery.
