Battery: Service and Repair

Battery Terminal Disconnection and Reconnection

Disconnection

1. Make sure the ignition switch is in LOCK (0).

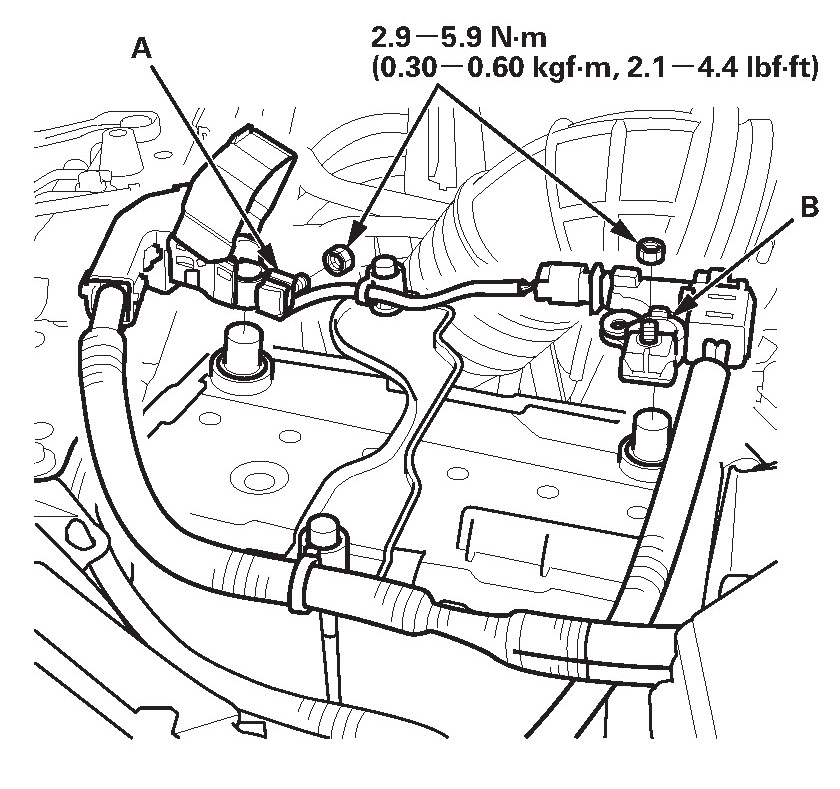

2. Disconnect and isolate the negative cable (A) from the battery.

NOTE: Always disconnect the negative side first.







3. Disconnect the positive cable (B) from the battery.

Reconnection

NOTE: If the battery performance is abnormal, test the battery; refer to the appropriate.

1. Clean the battery terminals.
2. Connect the positive cable (A) to the battery.

NOTE: Always connect the positive side first.







3. Connect the negative cable (B) to the battery.
4. Apply multipurpose grease to the terminals to prevent corrosion.
