Electrical Diagrams

System Diagram (1 Of 2 - 0verlapping Image):

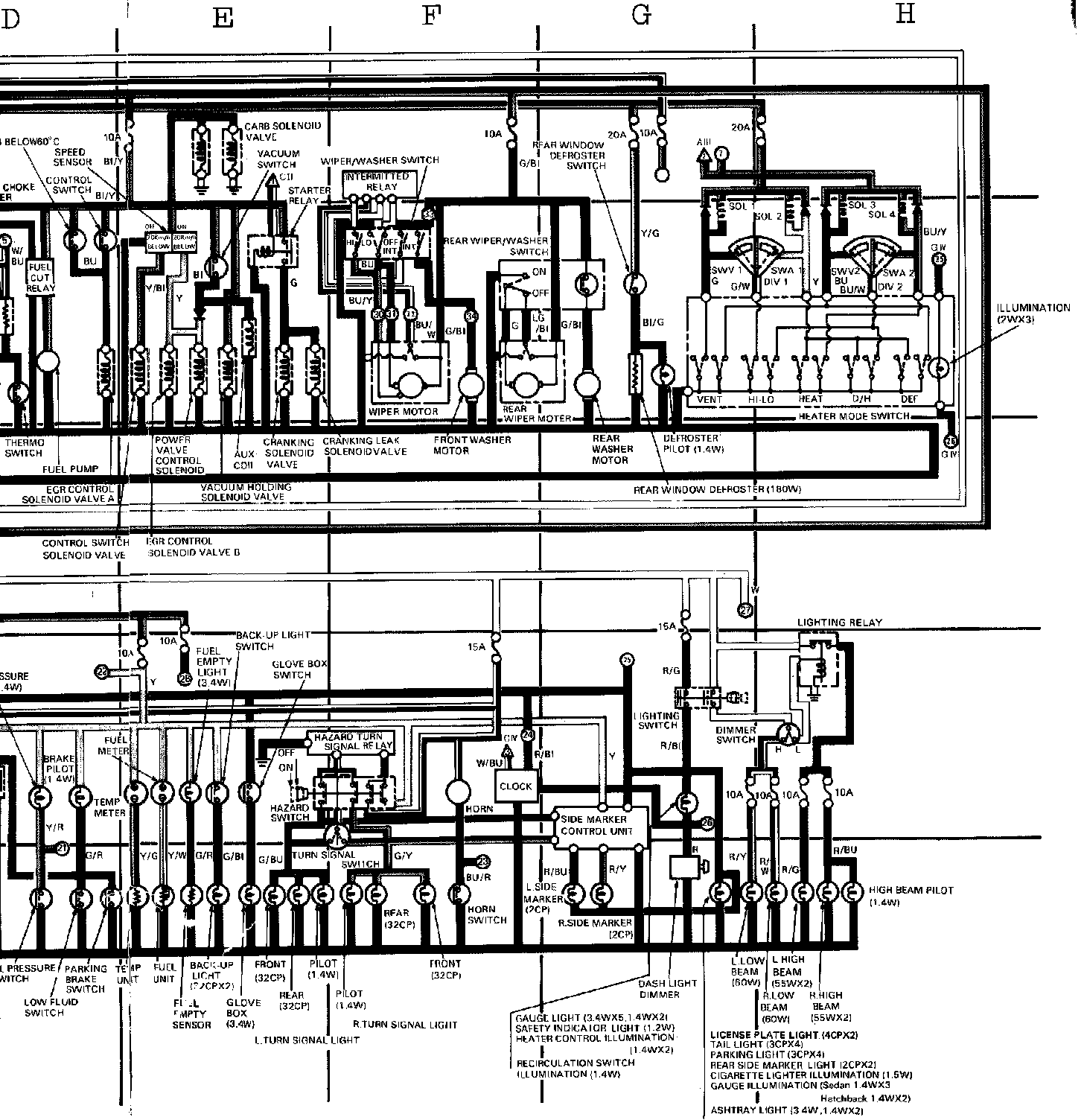

System Diagram (2 Of 2 - 0verlapping Image):
