Carburetor: Specifications

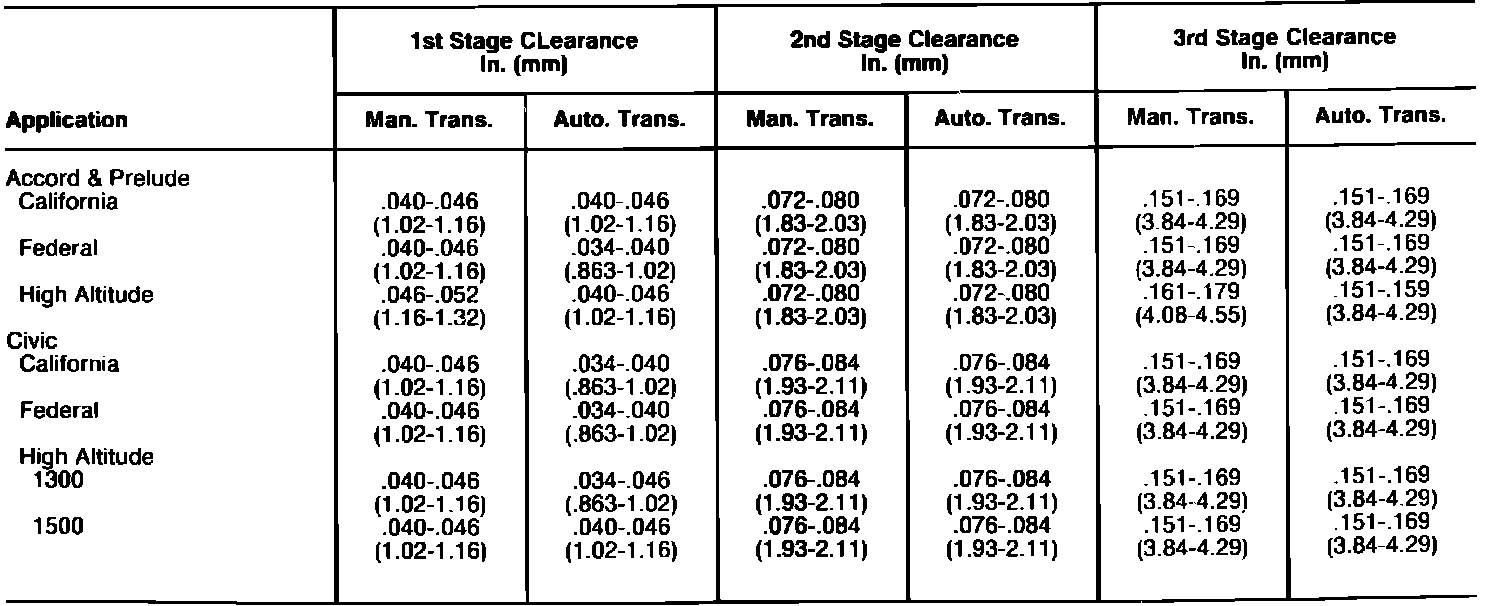

Fig. 8b Choke linkage specifications.:

This adjustment is only necessary if the choke linkage is bent, choke opener is replaced, or to correct poor cold starting condition. Adjustment can be performed with engine hot or cold. Refer to Fig. 8b for adjustment specifications.
