Distributor: Specifications

Fig. 48 Distributor specifications:

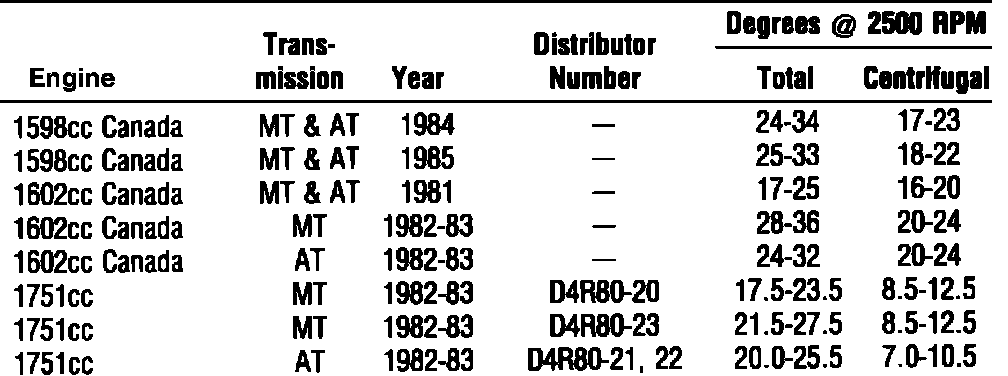

Fig. 014 Distributor Timing Advance Specifications:
