Complete Body & Chassis Wiring Circuit
Complete Body & Chassis Wiring Circuit

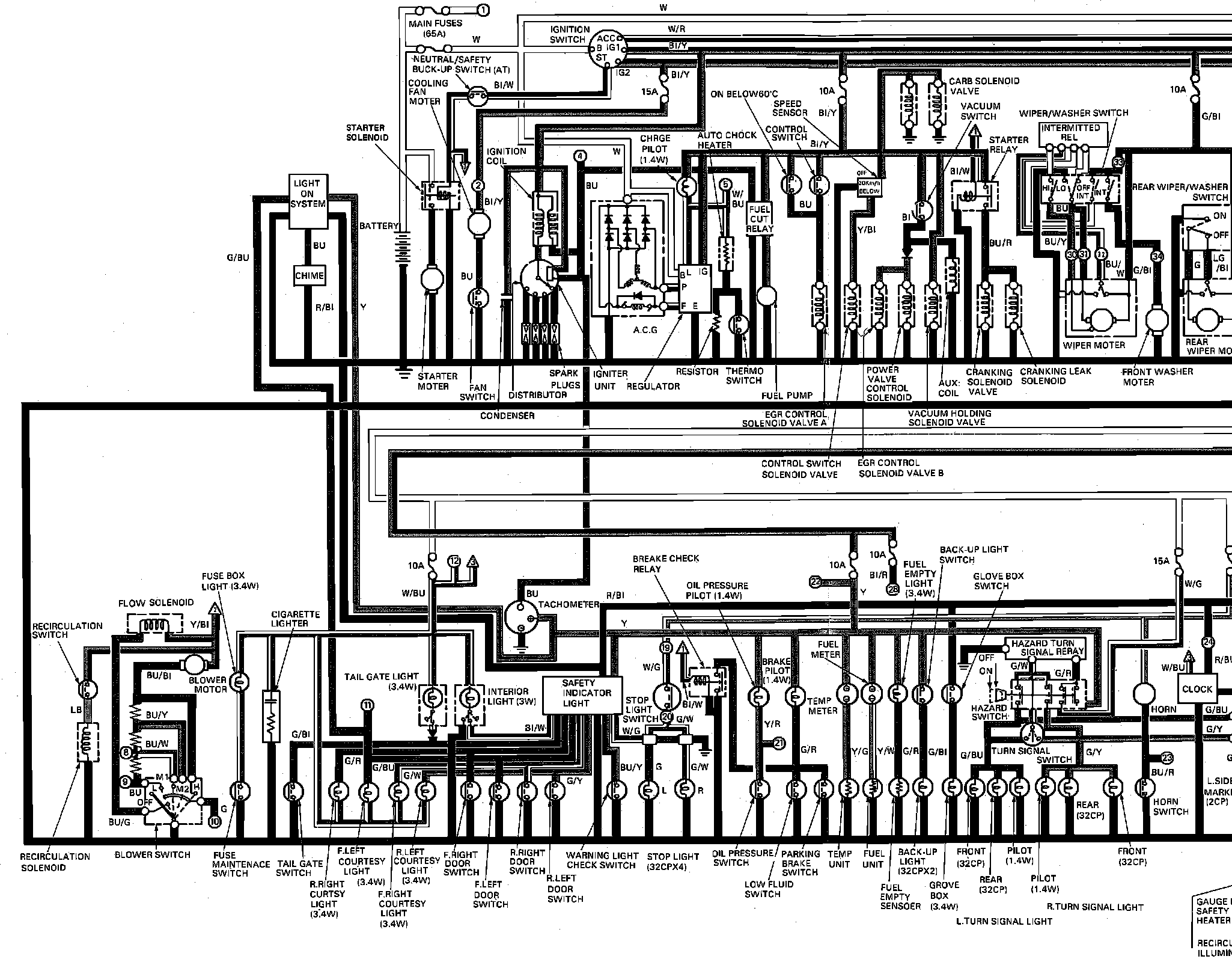

��ZcFig. 11d Complete Body & Chassis Wiring Circuit:
