Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1983
>>
Accord L4-1751cc 1800 EK1
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Computers and Control Systems
Computers and Control Systems

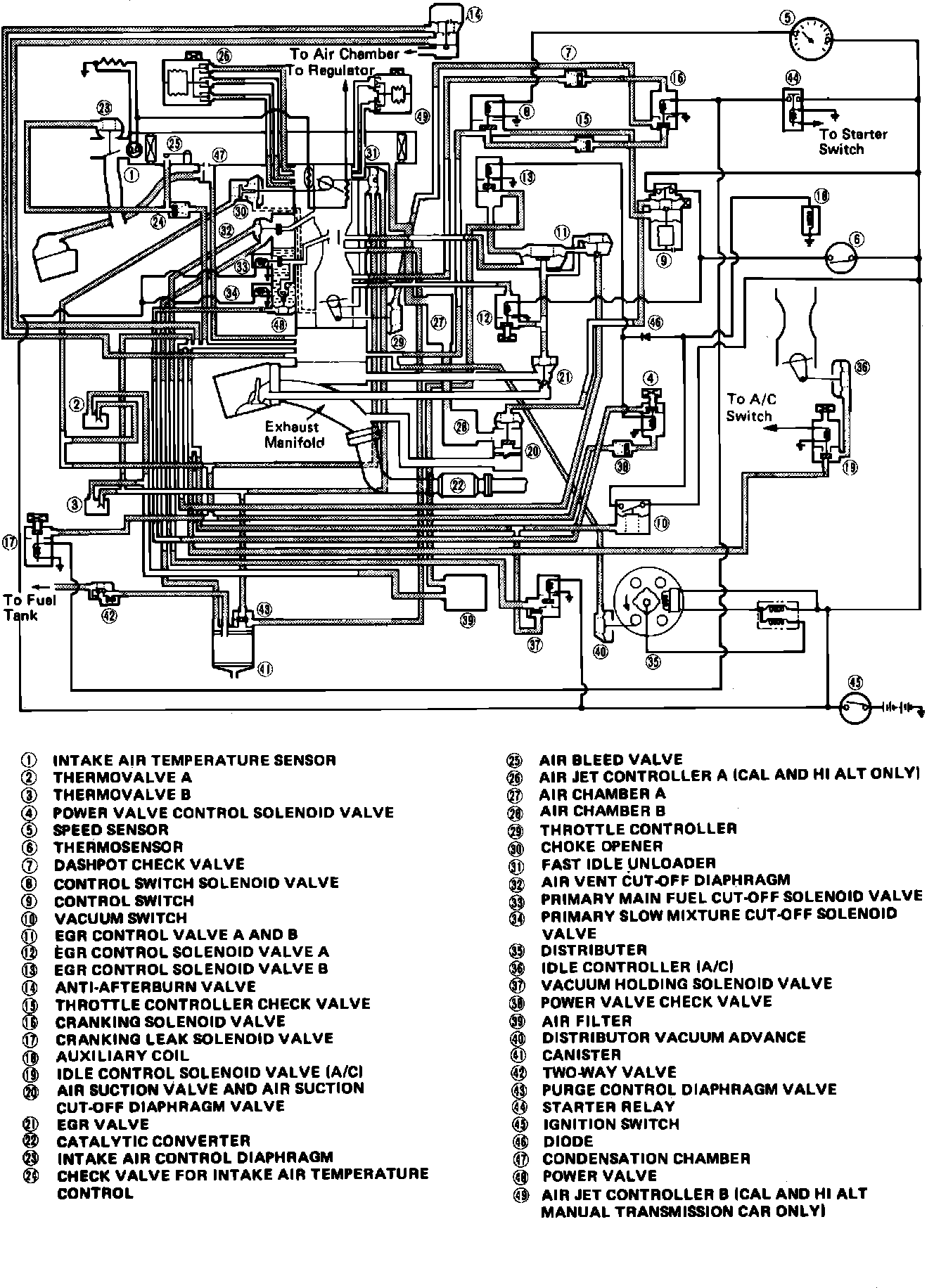

Fig. 98 Emission control vacuum hose routing.:
