Honda
>>
1983
>>
Accord L4-1751cc 1800 EK1
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Routing
Routing

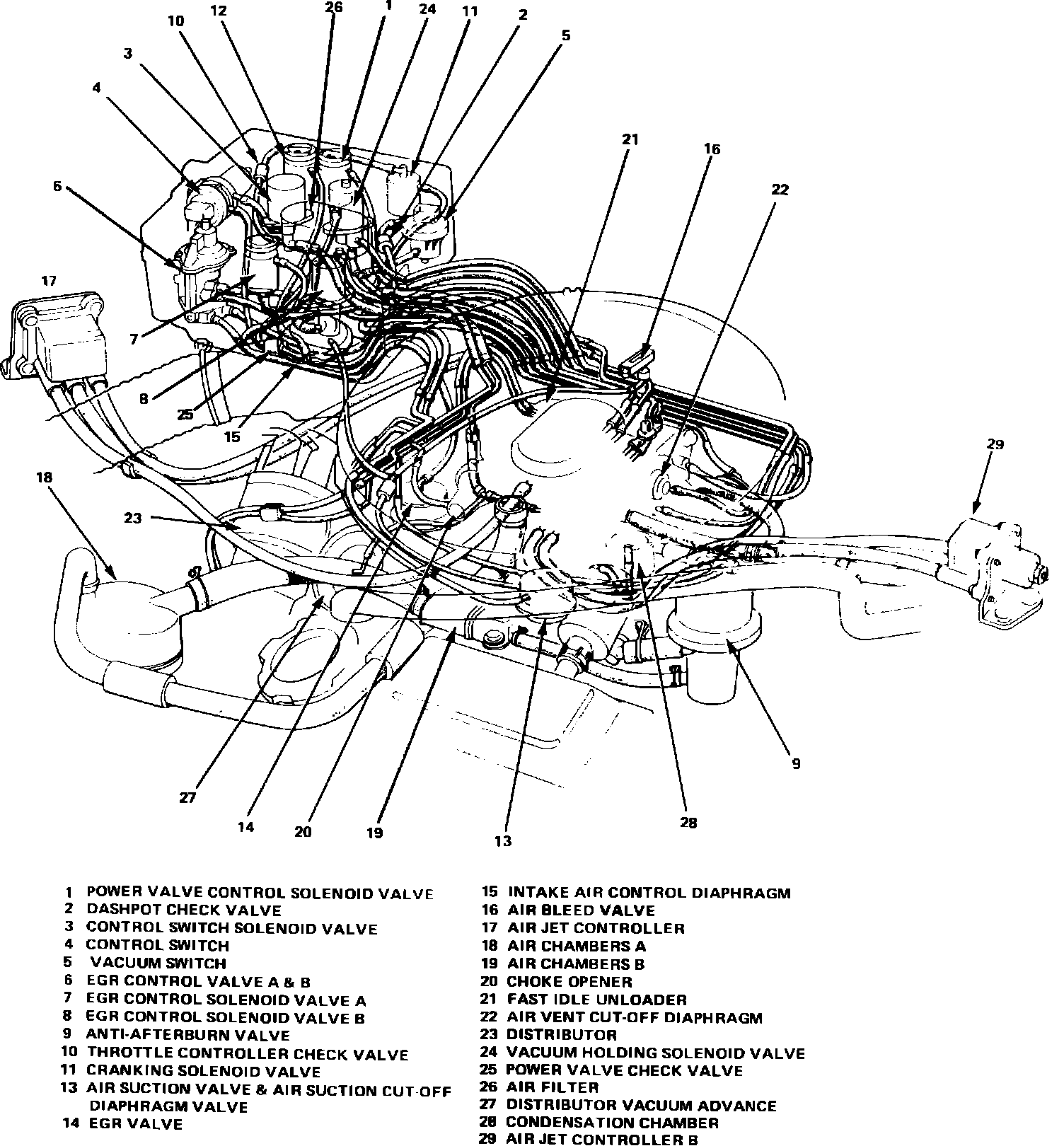

Fig. 105 Engine compartment reference diagram.:
