Transmission Shift Position Indicator Lamp

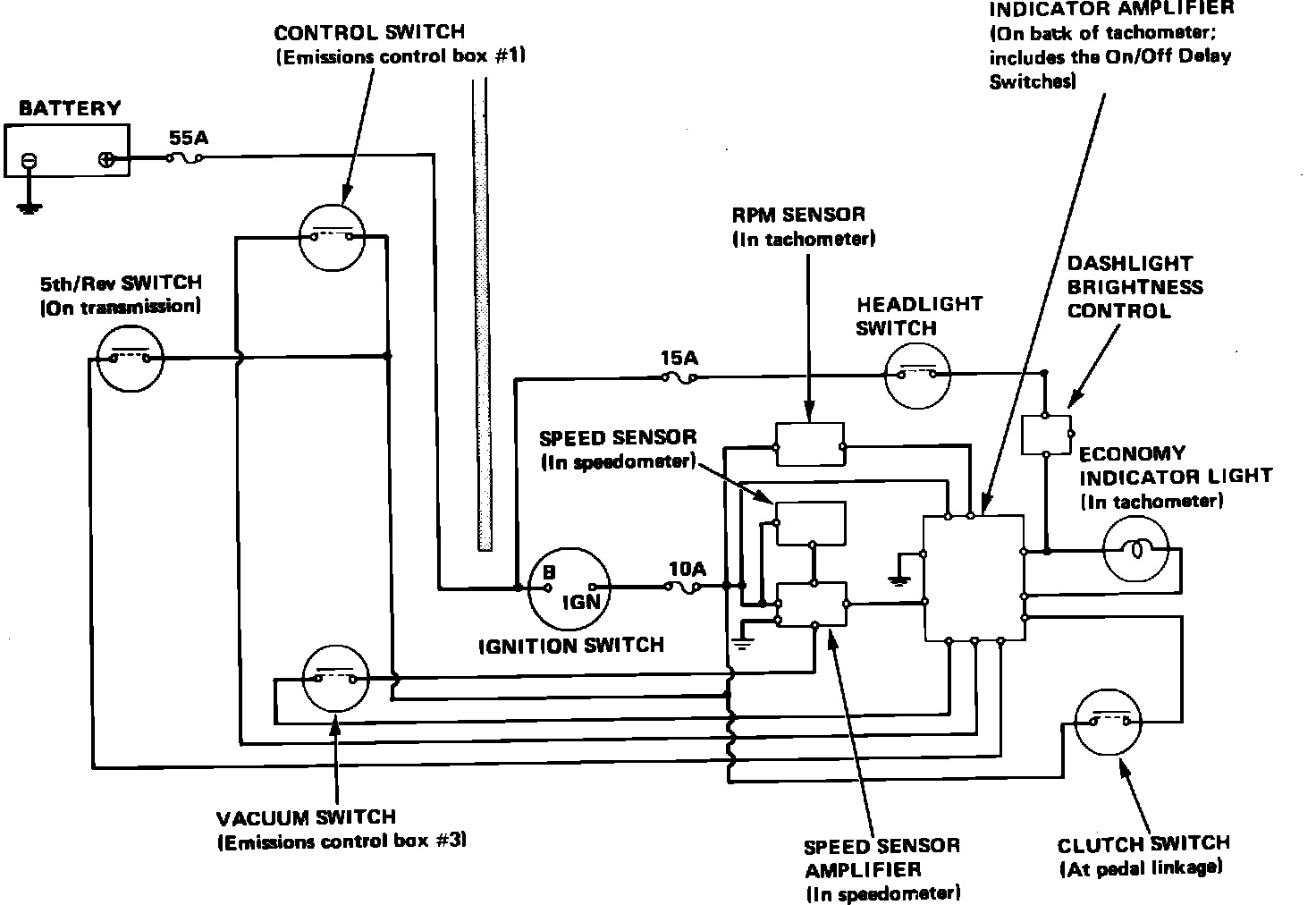

Fig. 36 Economy Driving Indicator Wiring Circuit. 1983 Civic W/1300 Engine & 5-Speed:
