Main Relay (Computer/Fuel System)
Main Relay (Computer/Fuel System)

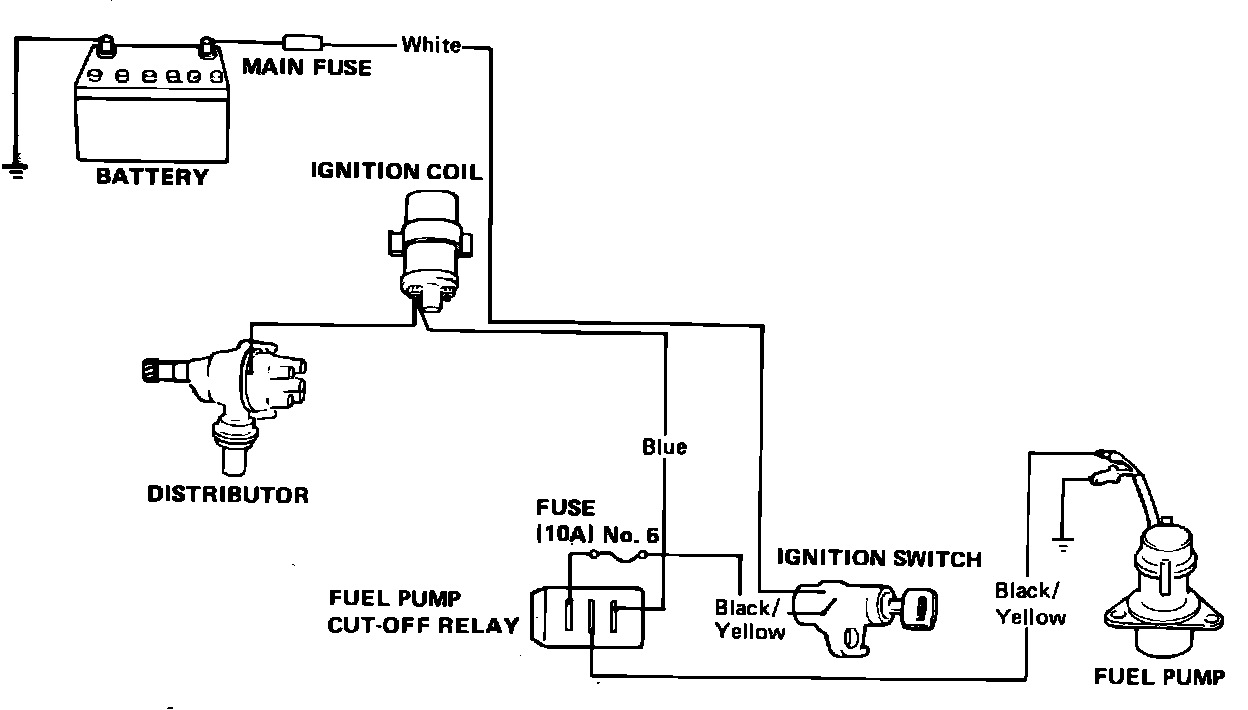

Fig. 39 Fuel Pump Cut-Off Relay Wiring Circuit. 1983 Civic:
