System Diagram

Cylinder Head Assembly And Cover:

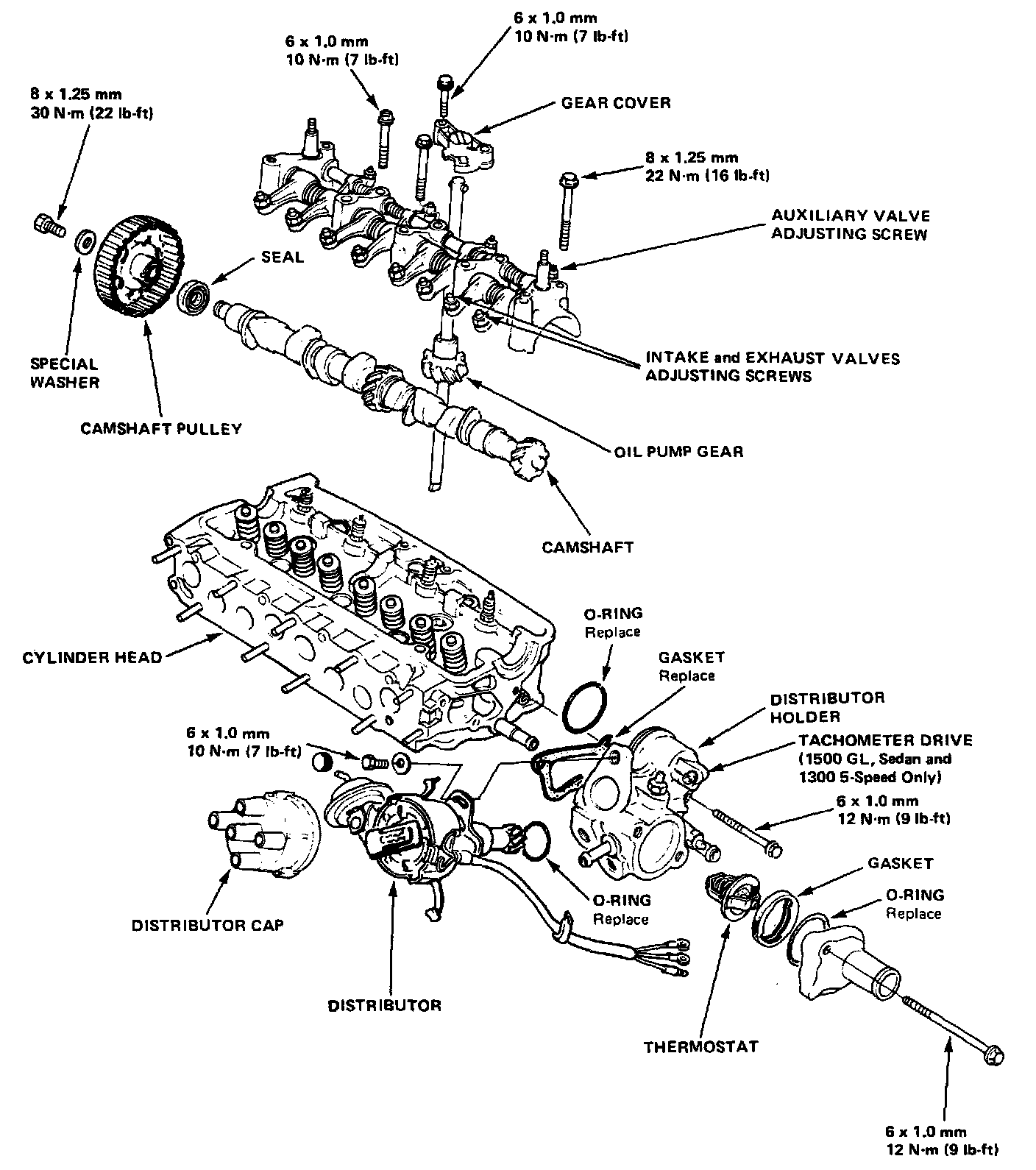

Camshaft, Rockers, Distributor And Thermostat Housing:

Valves, Guides And Springs, Auxiliary Valve Components:

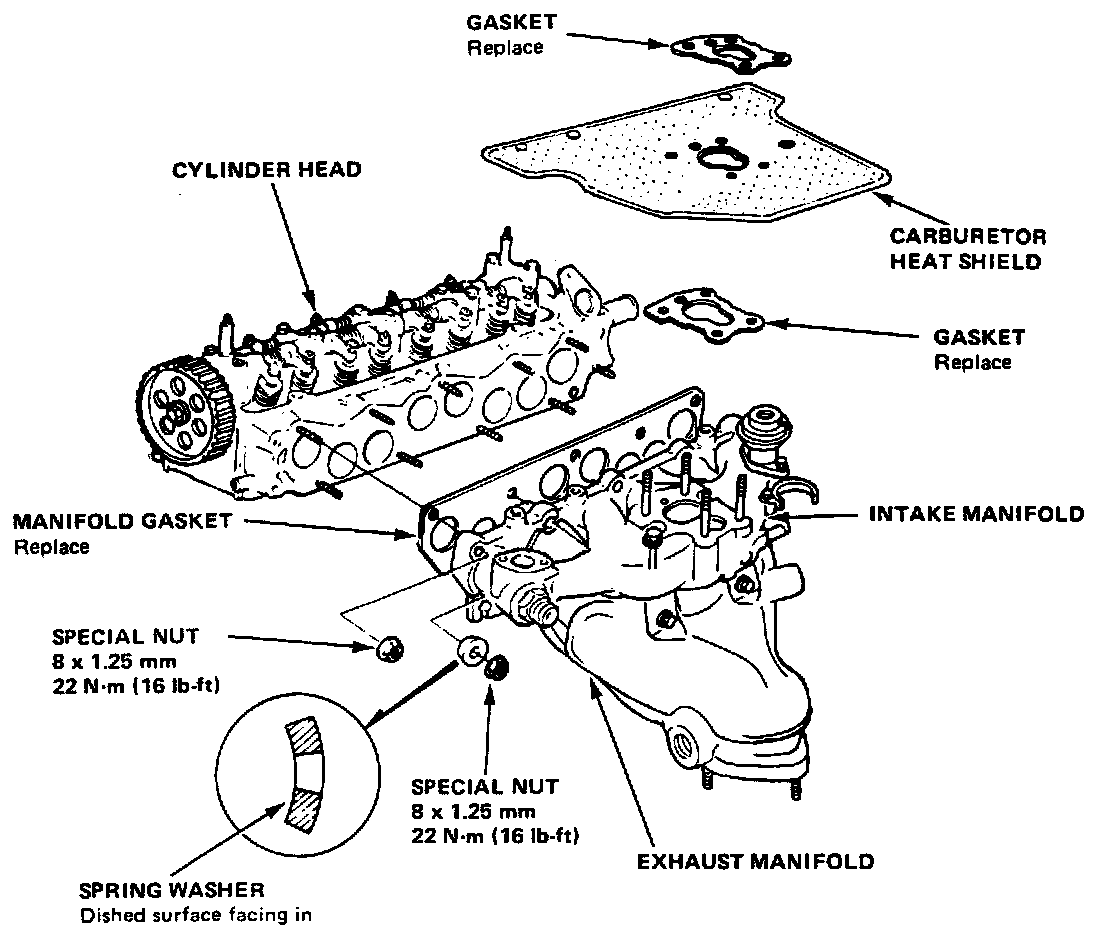

Manifold Assembly:

Timing Belt, Components And Covers:

Crankshaft, Main Bearing Caps And Flywheel/Flex Plate:

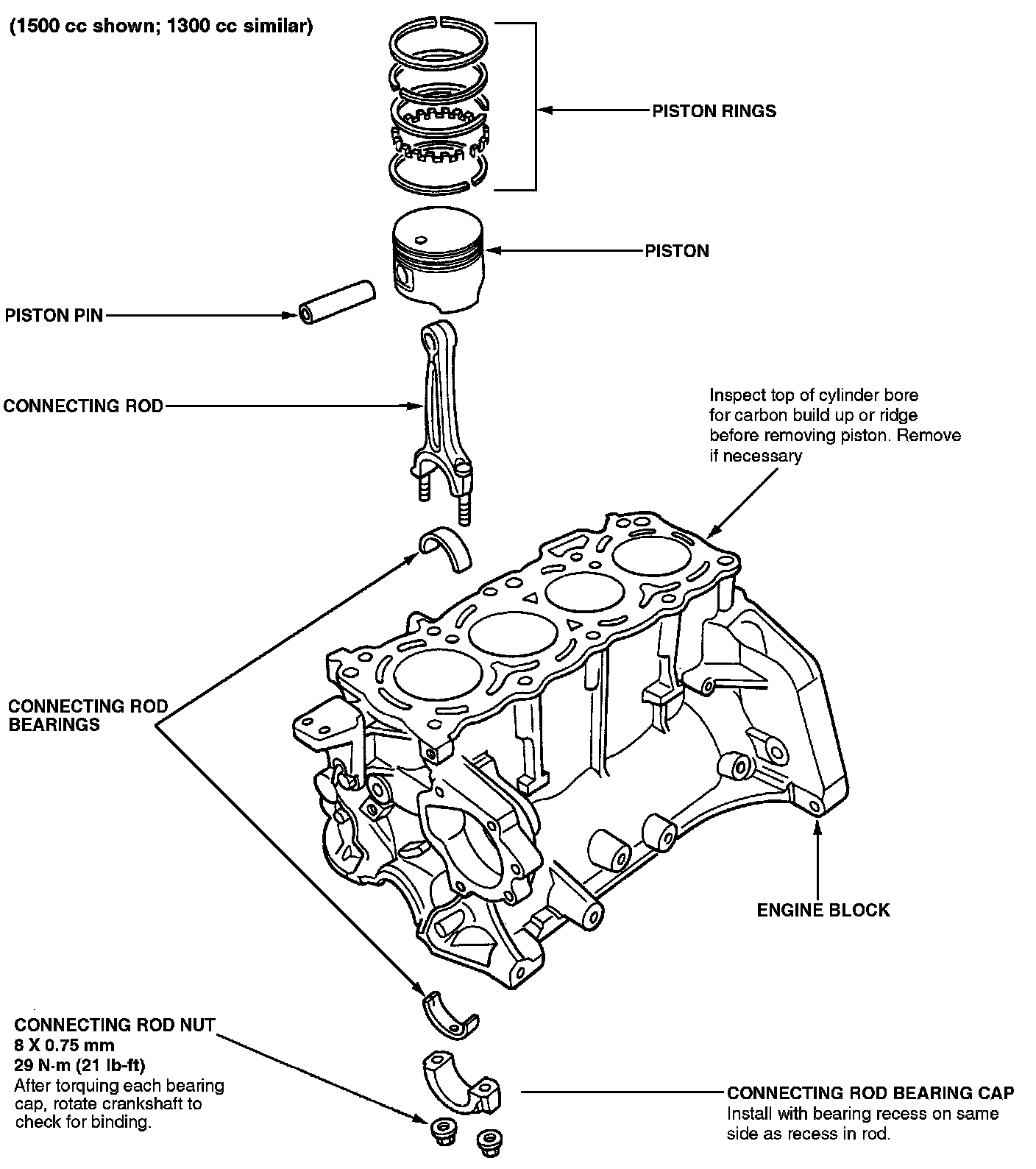

Piston And Connecting Rod:

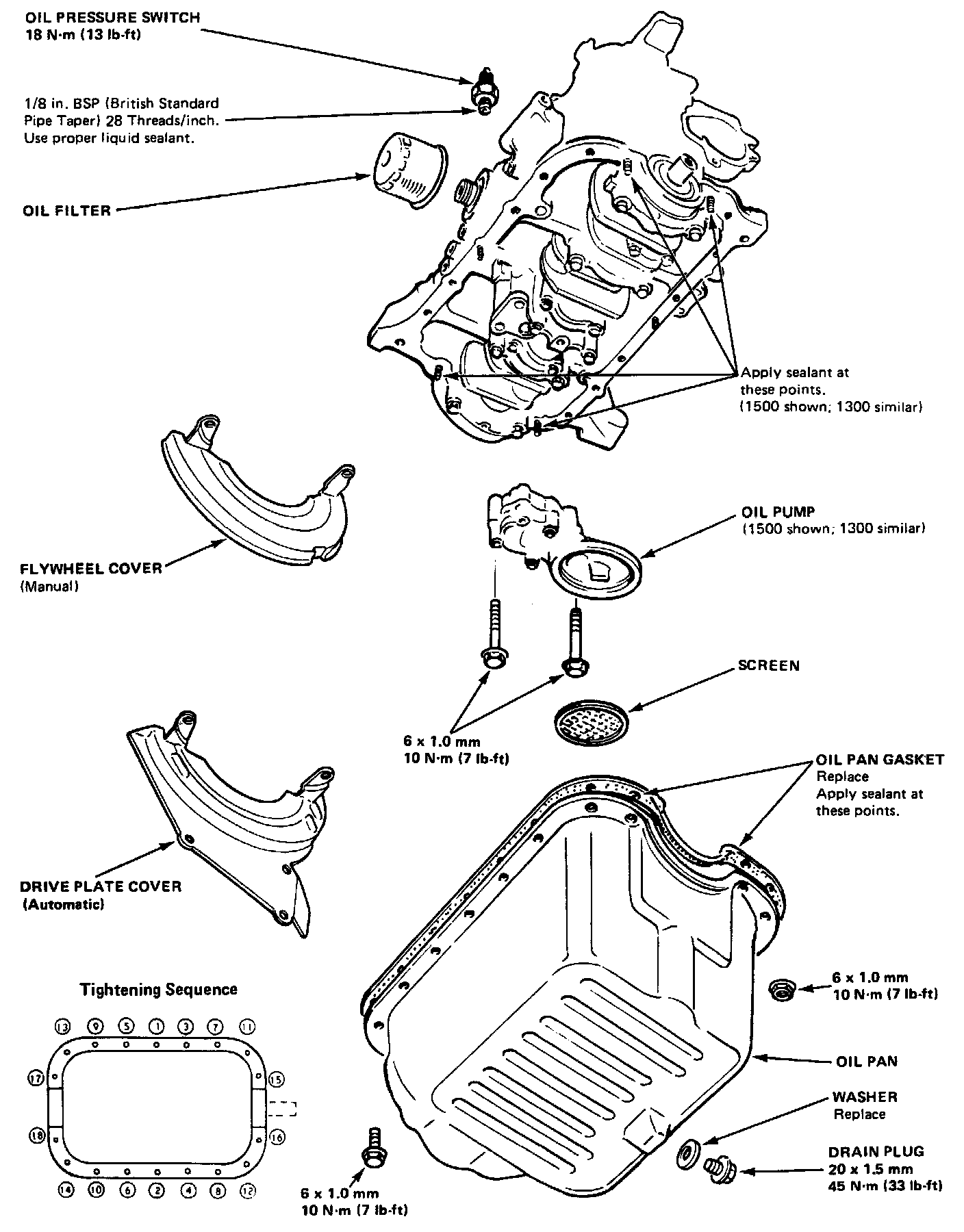

Oil Pan, Drain Plug, Oil Pressure Sender And Oil Pump:
