Emission Control Systems: Locations

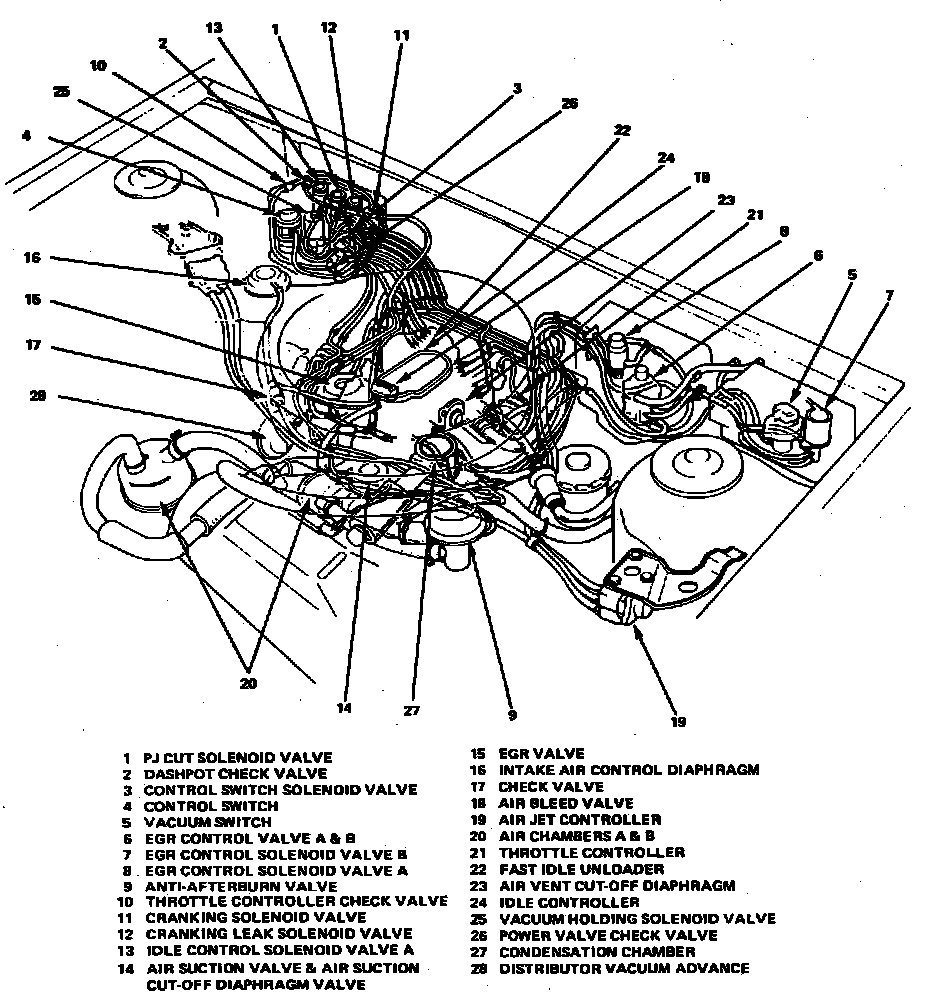

Vacuum Components & Connections.:




Engine Compartment

Applicable to: 1982-83
