Complete Body & Chassis Wiring Circuit
Complete Body & Chassis Wiring Circuit

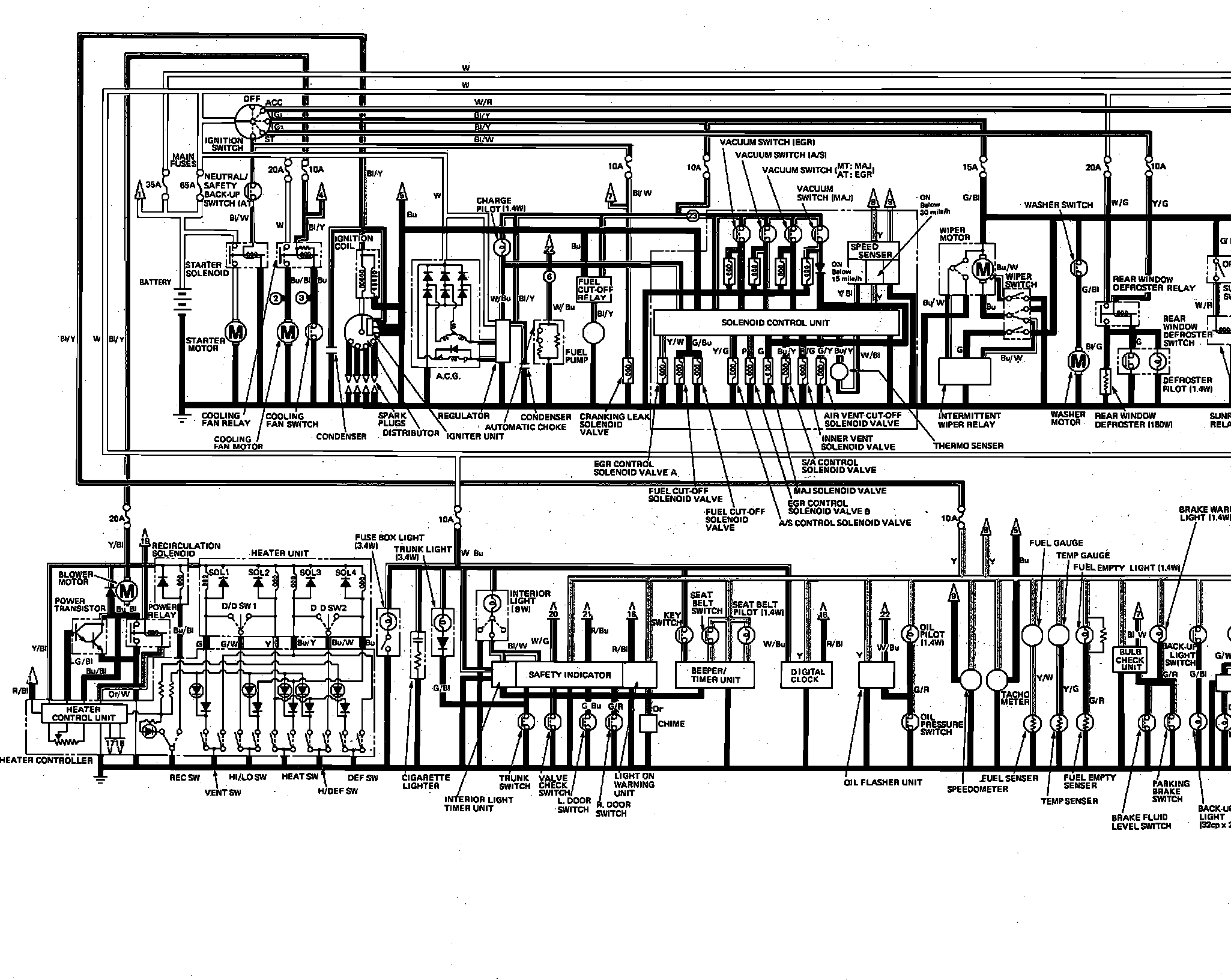

�-TcFig. 102b Complete Body & Chassis Wiring Circuit (Part 2 of 2):
