Instrument Cluster / Carrier
Instrument Cluster / Carrier

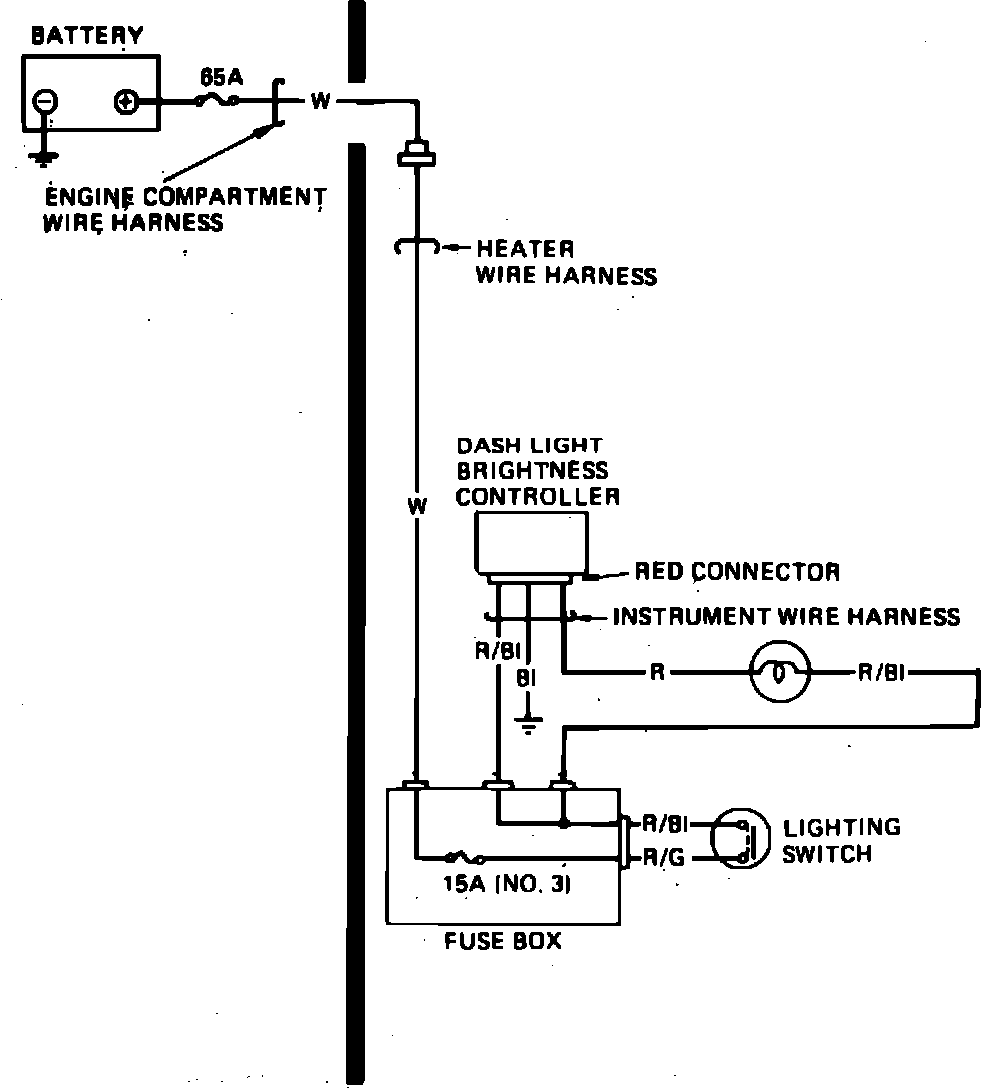

Fig. 105 Dash Light Brightness Control Wiring Circuit. 1983 Prelude:
