Low Fuel Lamp/Indicator
Low Fuel Lamp/Indicator

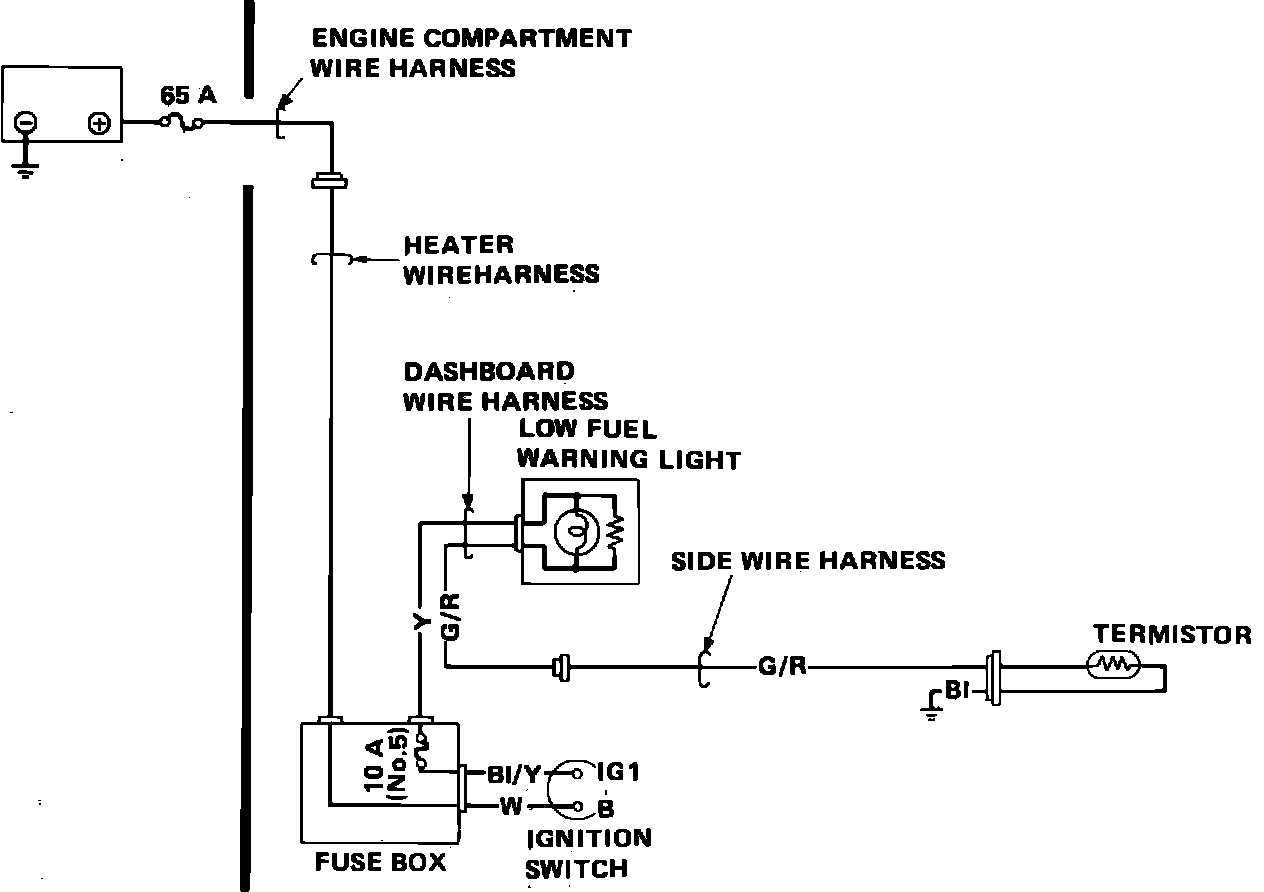

Fig. 115 Low Fuel Warning System Wiring Circuit. 1983 Prelude:
