Wiper and Washer Systems

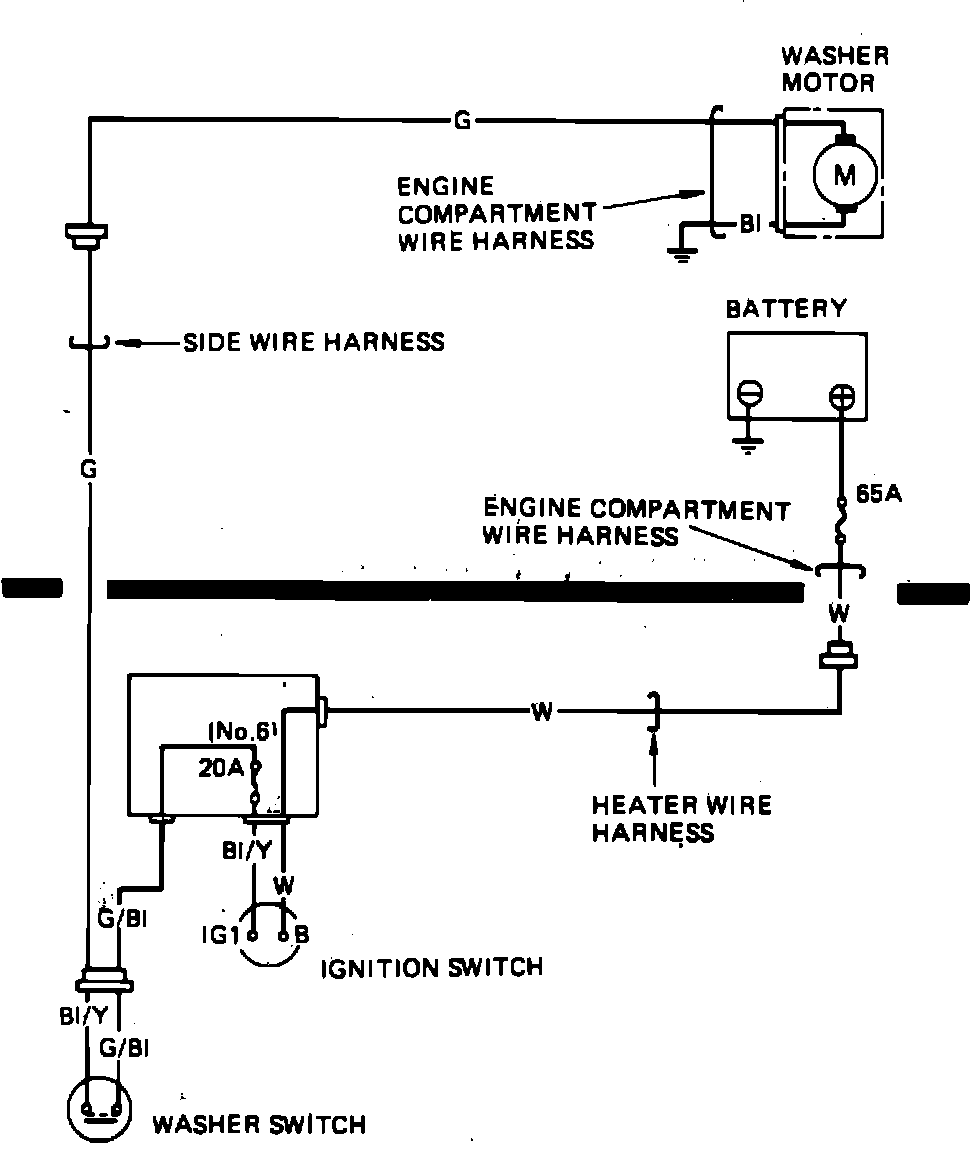

Fig. 124 Windshield Washer Wiring Circuit. 1983 Prelude:



Fig. 125 Windshield Washer Wiring Circuit. 1983 Prelude:
