System Diagram

Cylinder Head, Valve Cover:

Rocker Assy, Cam Pulley, Distributor, Thermostat Housing:

Valves, Guides, Springs And Retainers:

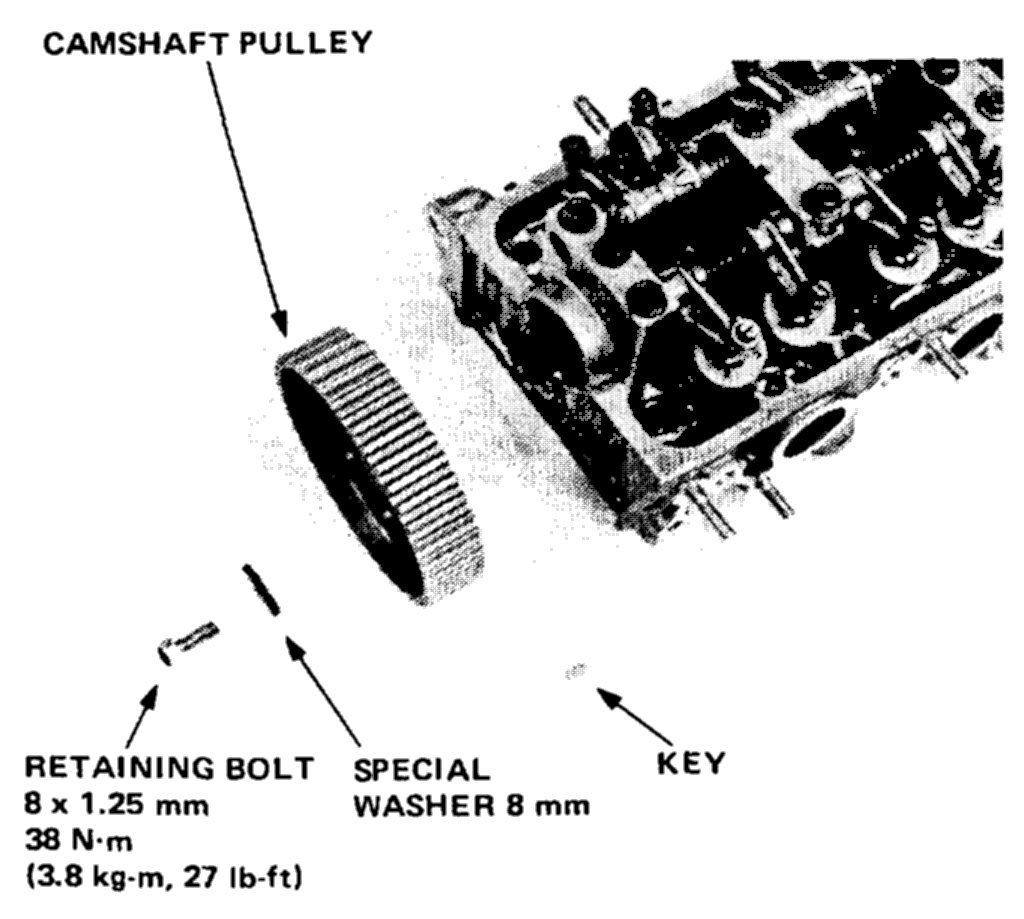

Camshaft Pulley:

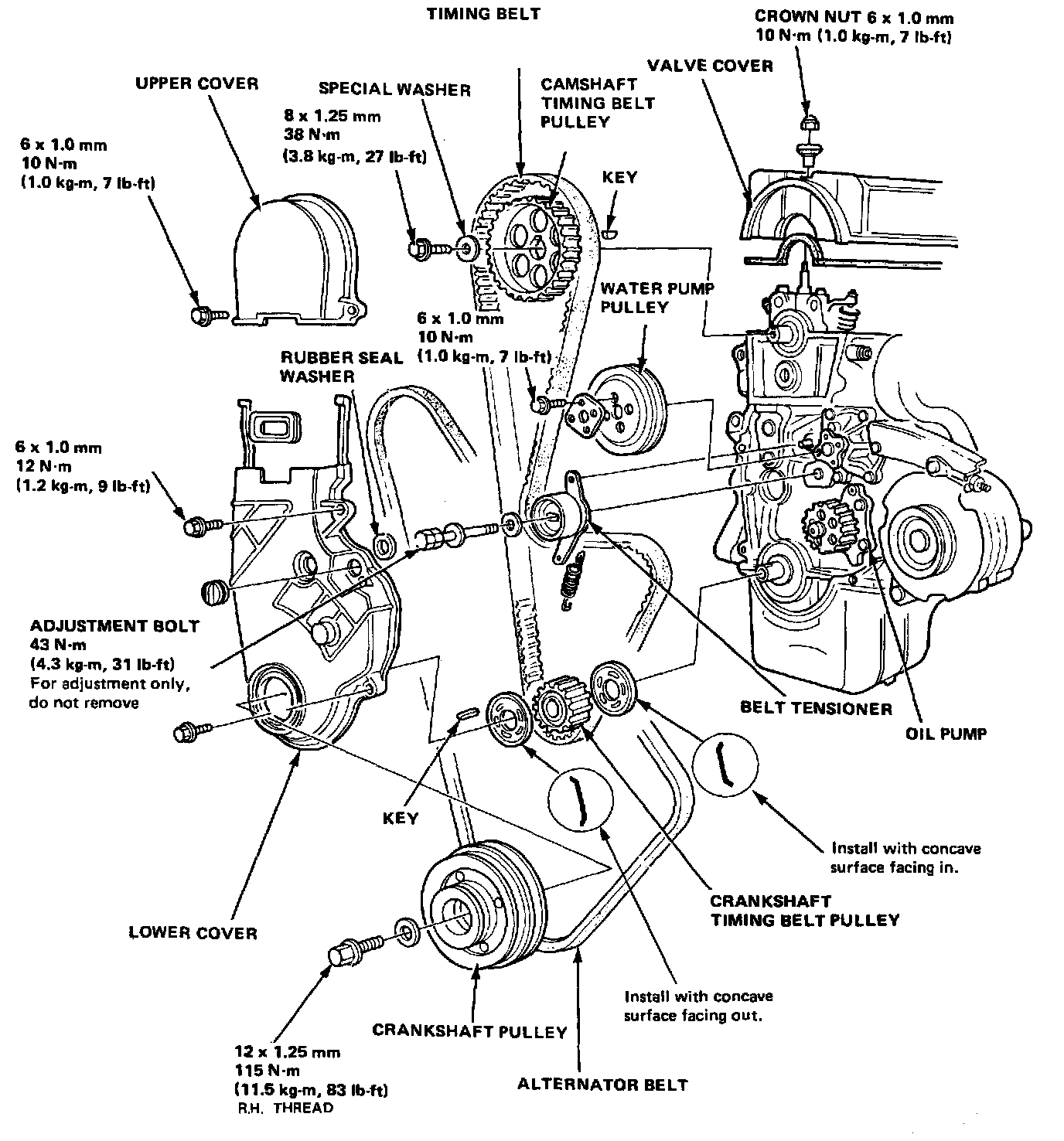

Timing Components:

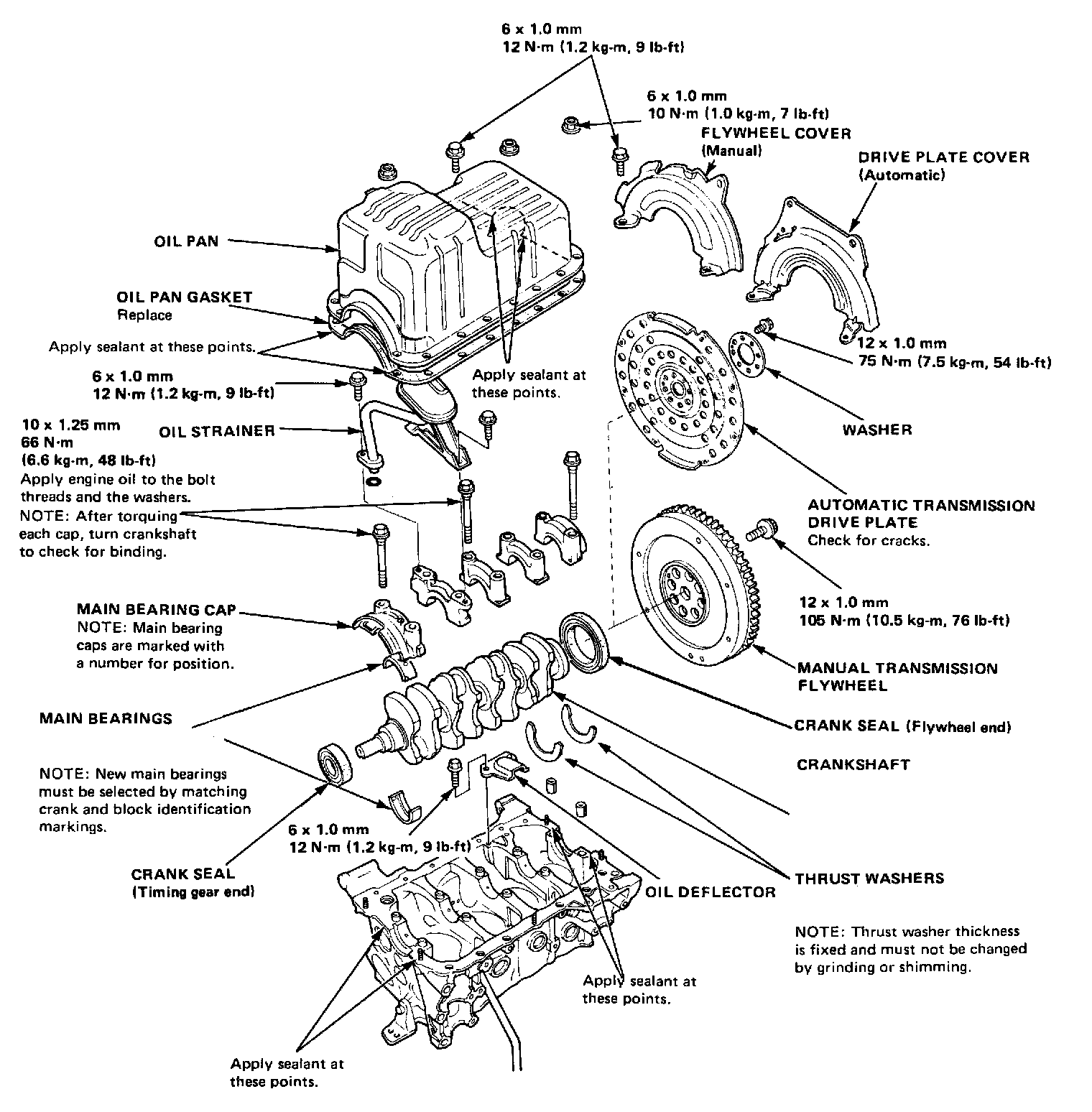

Lower Engine:

Piston and Connecting Rod:

Intake/Exhaust Manifolds And Attachments:
