Air Conditioning Switch: Testing and Inspection

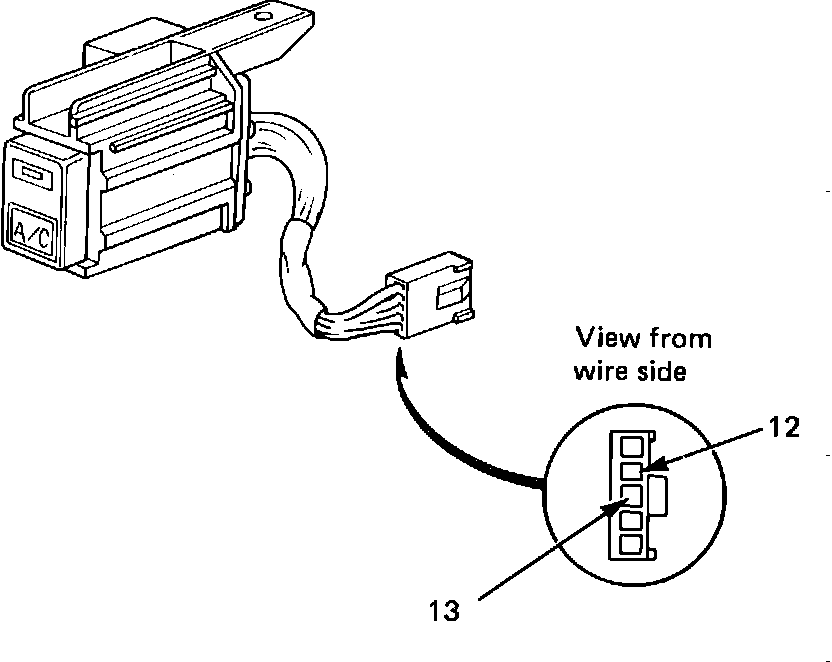

Fig. 37 A/C switch.:

1. Using a suitable ohmmeter, check for continuity between terminals 12 and 13 when switch is pushed in. There should be no continuity when switch button is released as shown in Fig. 37.

NOTE: The A/C switch contains an LED circuit and cannot be tested with ordinary circuit testers. If there is any abnormality in LED, refer to "COMPRESSOR CLUTCH ISN'T ENGAGED, WHEN A/C SWITCH IS TURNED ON". Fig. 35c.
