Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1983
>>
Prelude L4-1829cc 1800 ES,ET
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Description and Operation
>>
Heater and Air Conditioning
>>
Heating and Ventilation System
Heating and Ventilation System

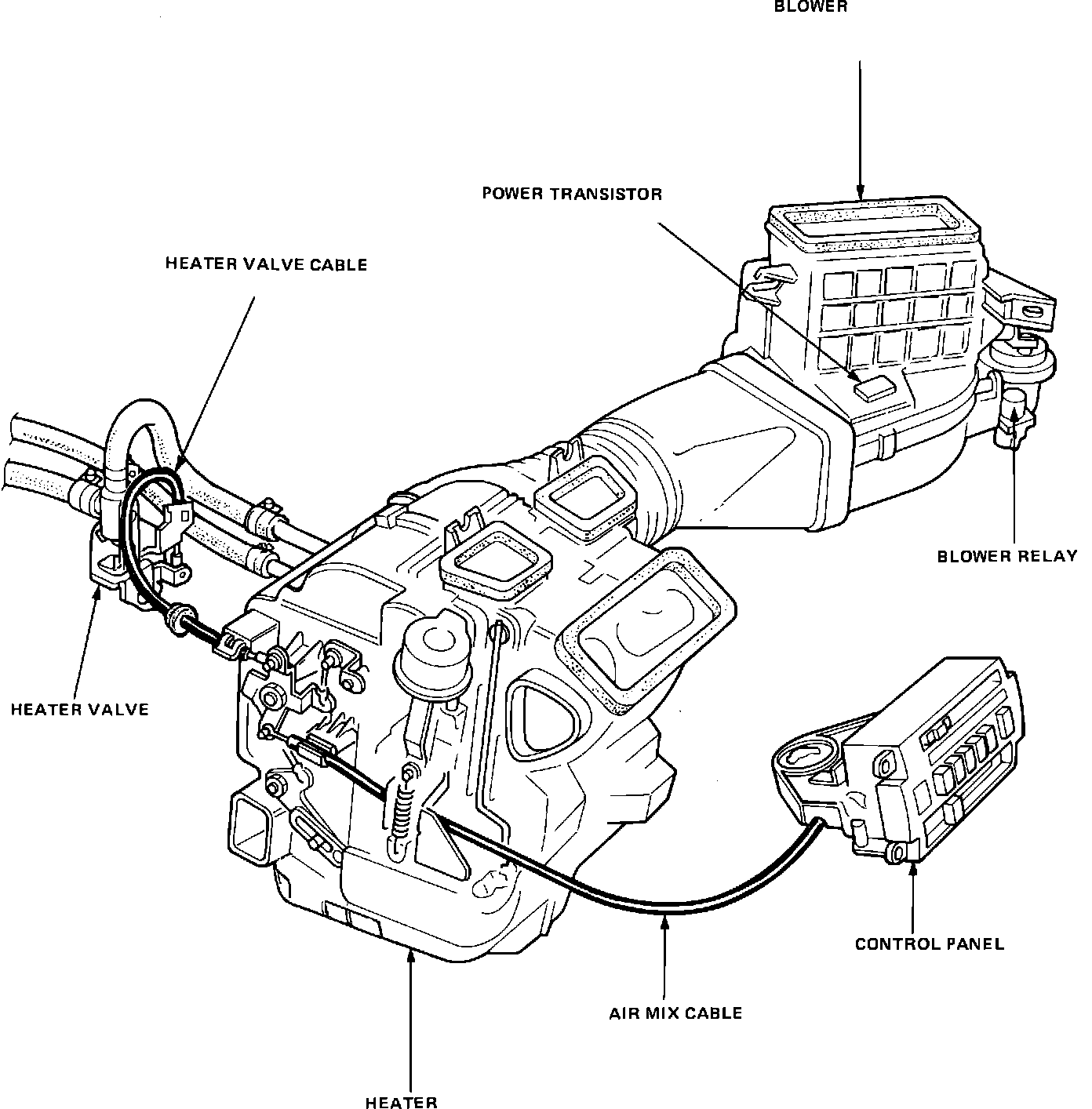

Fig. 3 System description, heater.:
