Carburetor: Locations
Air Fuel Mixture ScrewLocation
1. Remove air cleaner.
2. Disconnect all vacuum hoses from the carburetor.
3. Pull the brake booster hose and the throttle cable out of the their brackets.
4. Remove the carburetor nuts and washers.

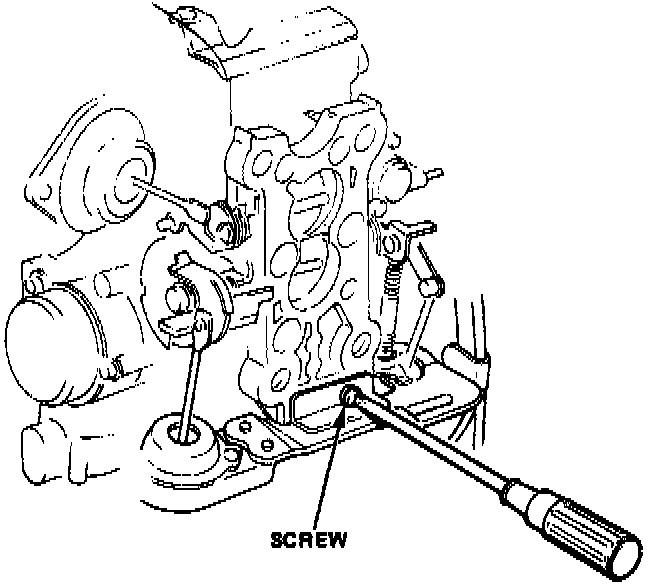

5. Lift the carburetor clear of its studs; then tilt it backwards so you can remove the throttle controller bracket screw.
6. Remove the throttle controller bracket.

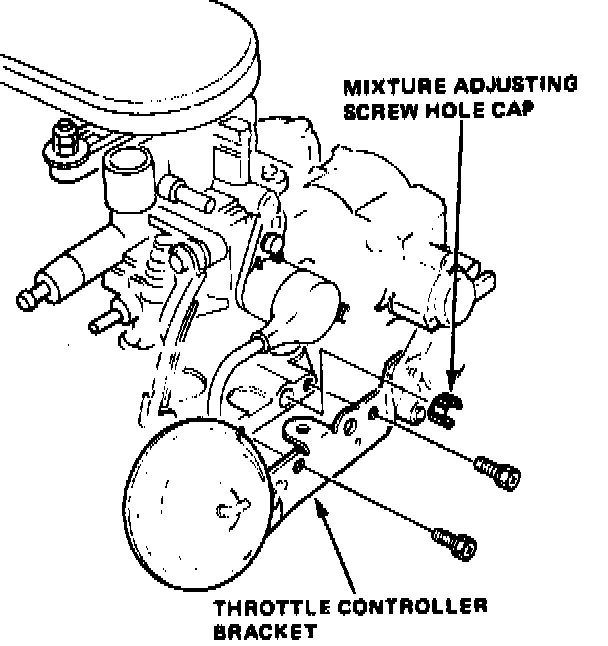

7. Remove the mixture adjusting screw hole cap from the throttle opener bracket, then reinstall the bracket.
8. Reinstall the carburetor, but first check the insulator block for damage.
9. Reconnect the vacuum hose to the fast idle unloader.
10. Install the air cleaner.
