Distributor: Specifications

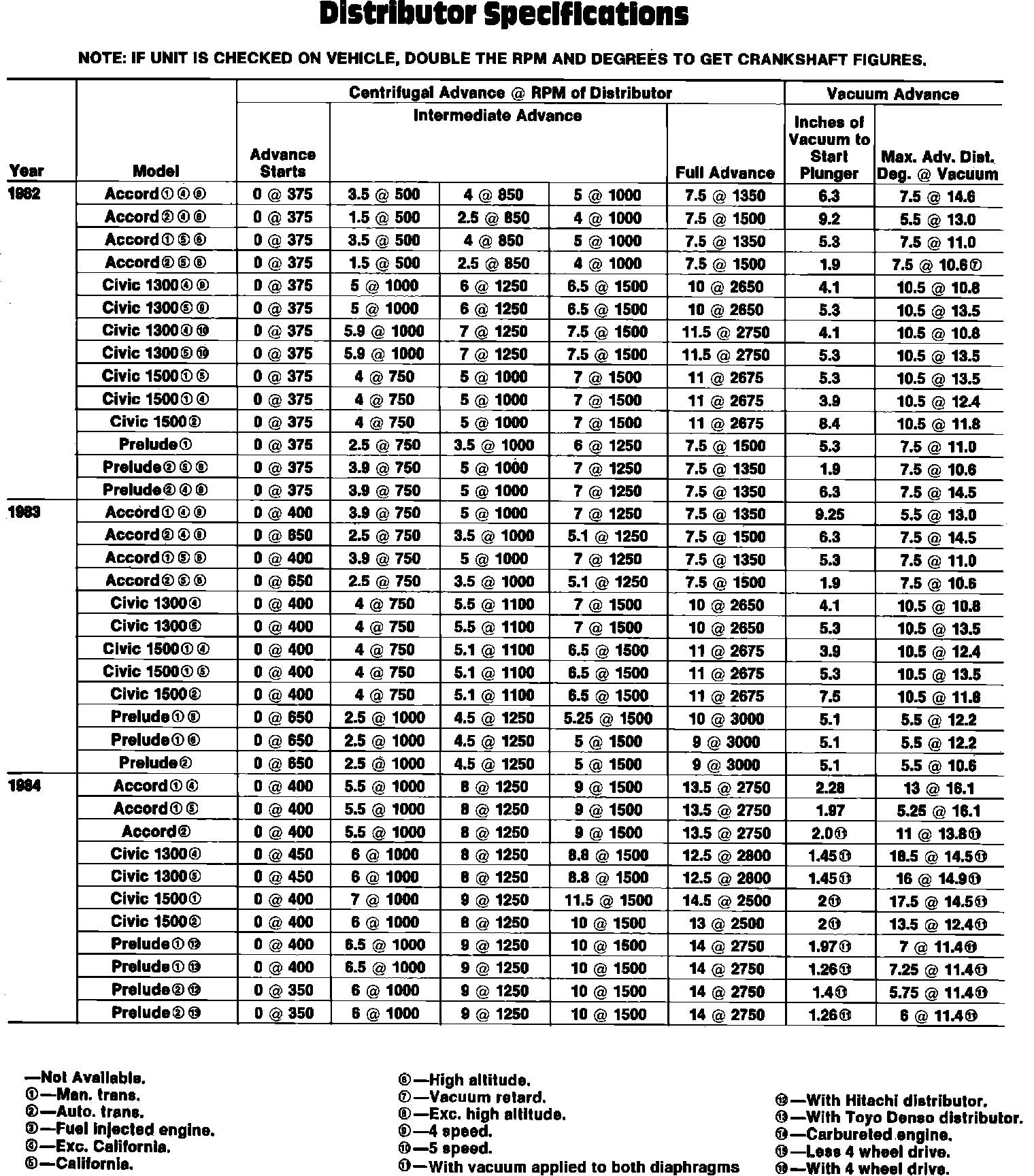

Fig. 48 Distributor specifications:

Fig. 015 Distributor Timing Advance Specifications:
