Specifications
>>
Pressure, Vacuum and Temperature Specifications
>>
Fuel Pump
>>
Fuel Injected Engine
Fuel Injected Engine

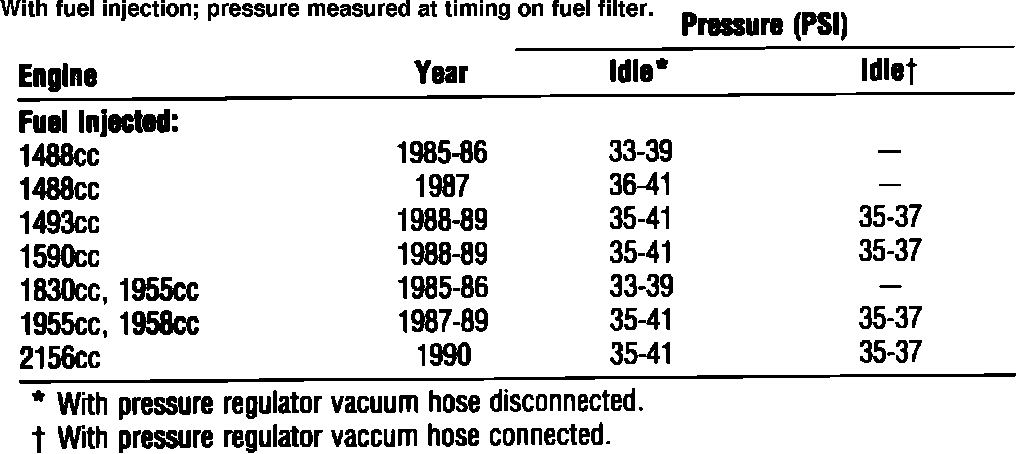

Fig. 002 Fuel Pump Specifications:
