Operation CHARM: Car repair manuals for everyone.

Home >> Honda >> 1984 >> Accord L4-1829cc 1800 ES,ET >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> A/C Compressor Controls

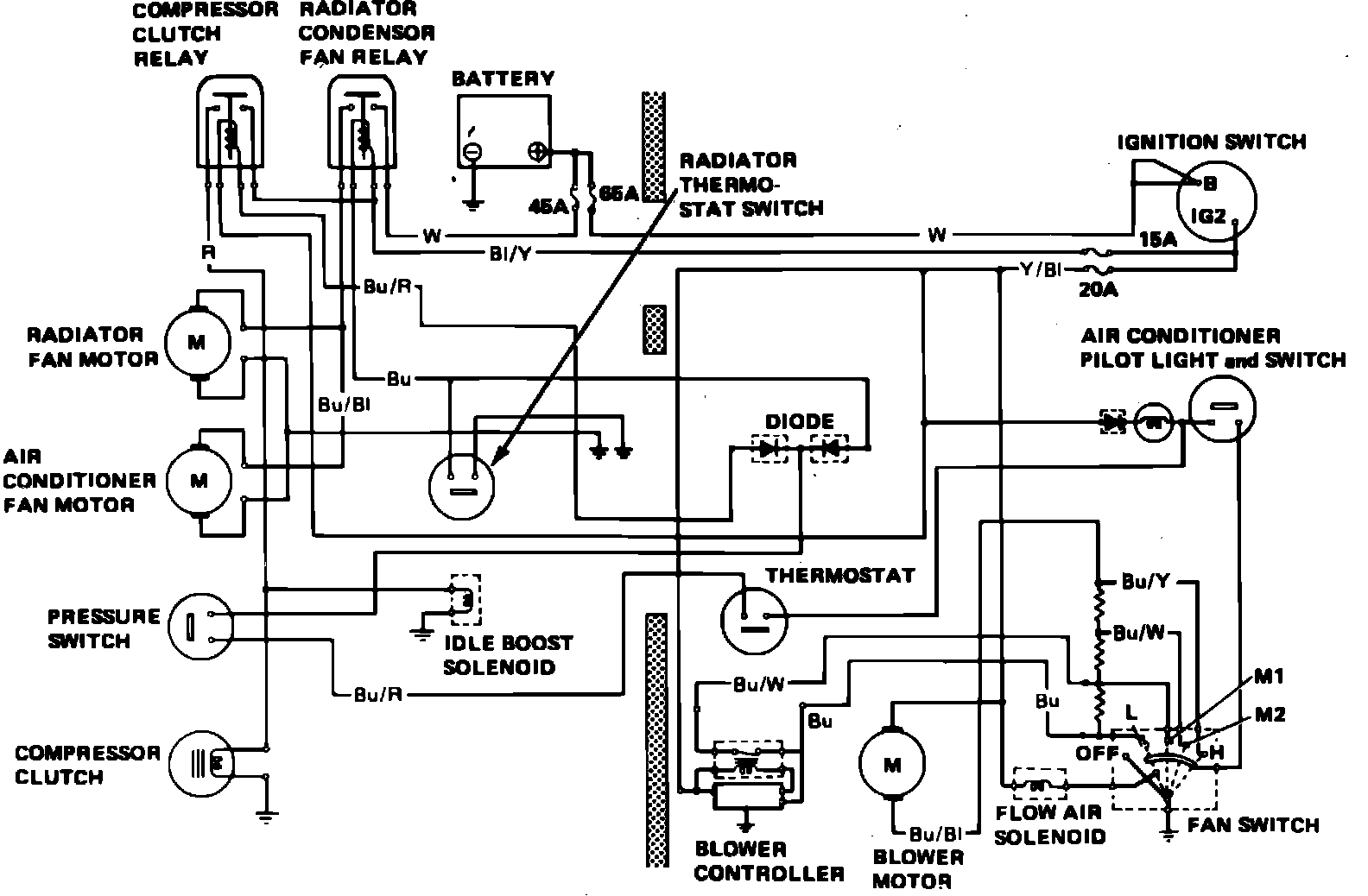

A/C Compressor Controls

Air Conditioner:
