Routing

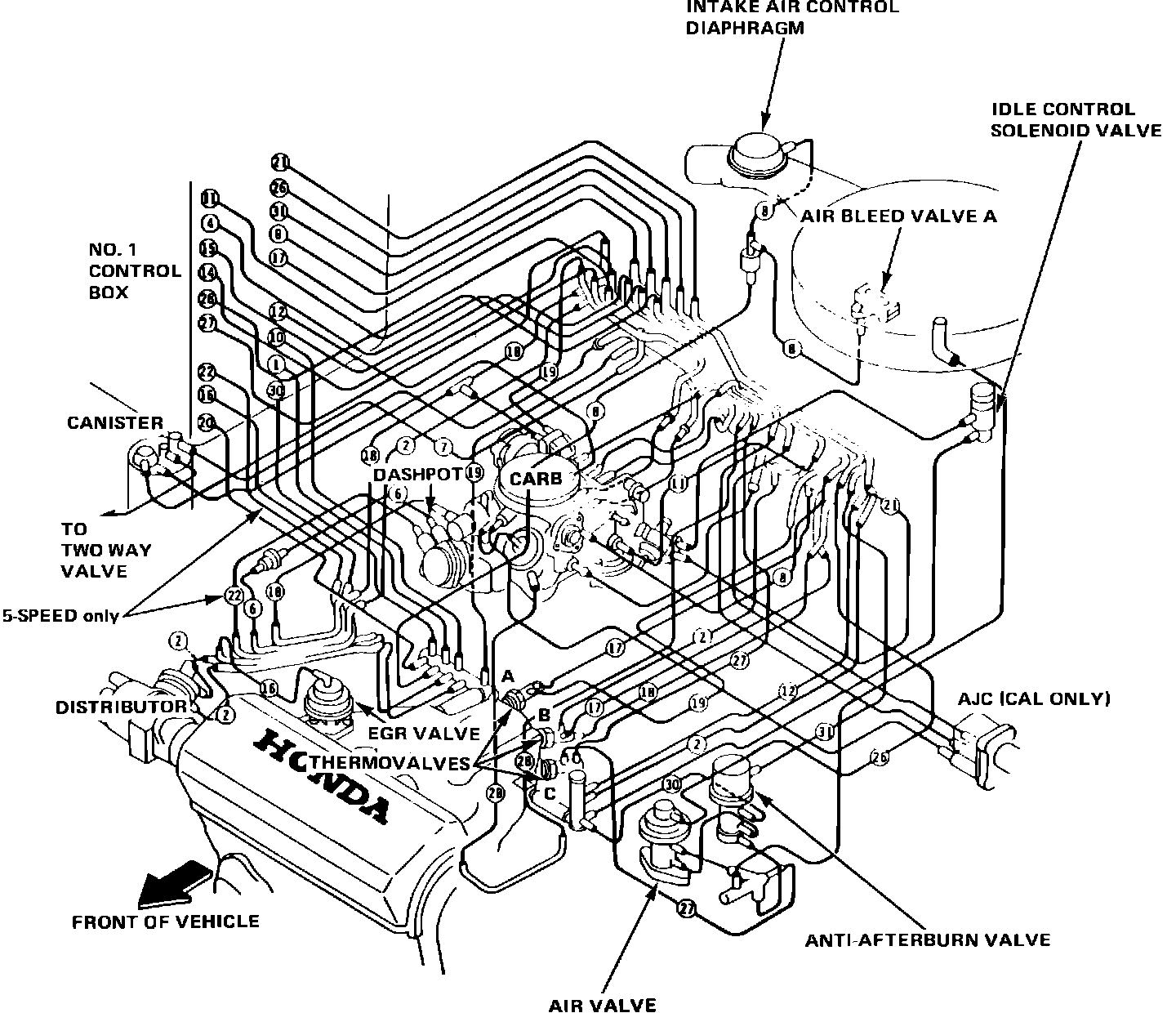

Fig. 112 Engine compartment reference diagram.:

Fig. 113 Engine compartment reference diagram.:
