Civic Coupe Coupe W/5-Speed
Civic Coupe Coupe W/5-Speed

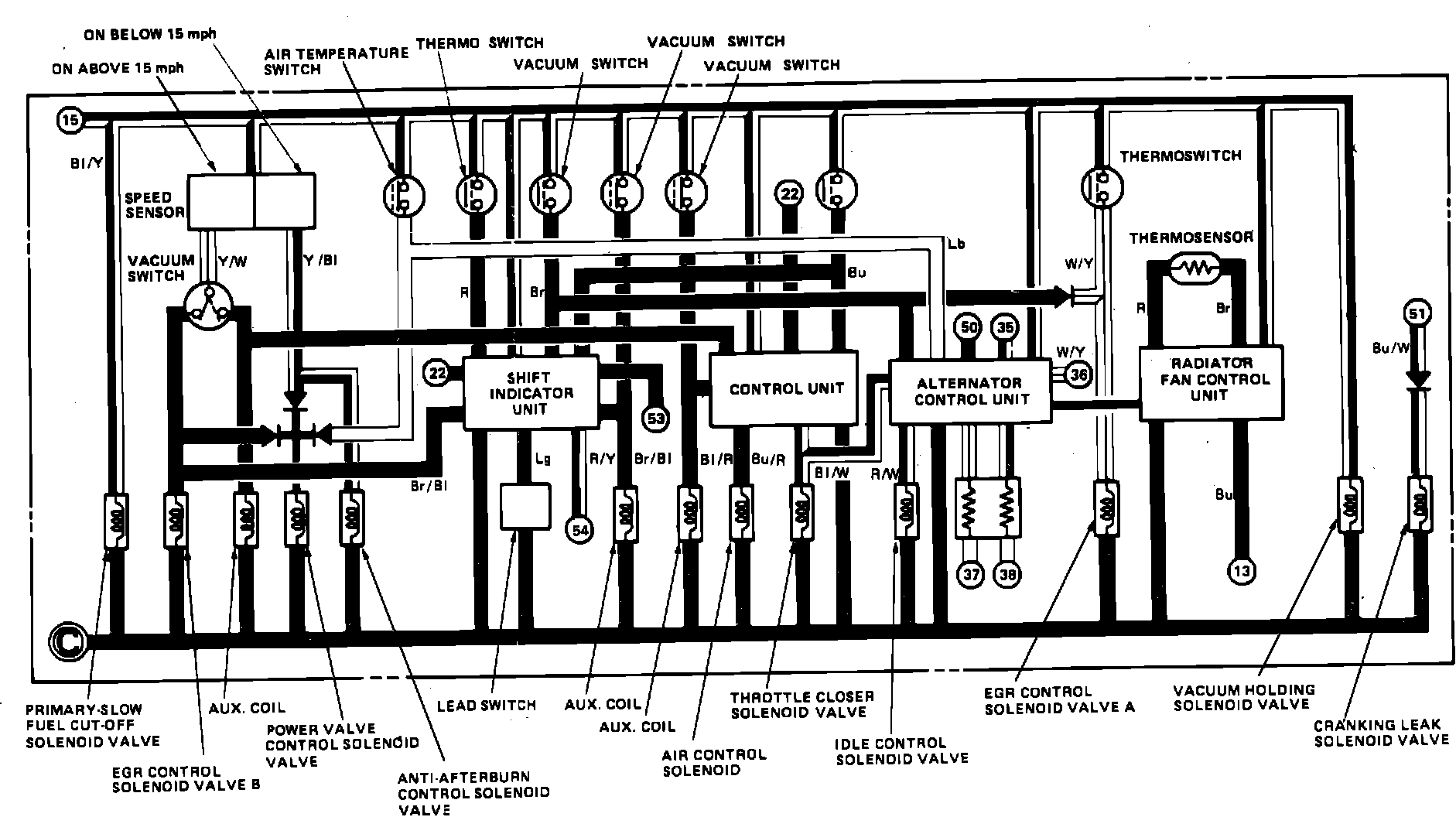

Fig. 57 Emission Control Wiring Circuit. 1984 Civic Coupe W/1300 Engine & 5-Speed:
