Home >> Honda >> 1984 >> Civic CVCC L4-1488cc 1.5L EW1, EW3 >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations >> A/C Component Locations

A/C Component Locations

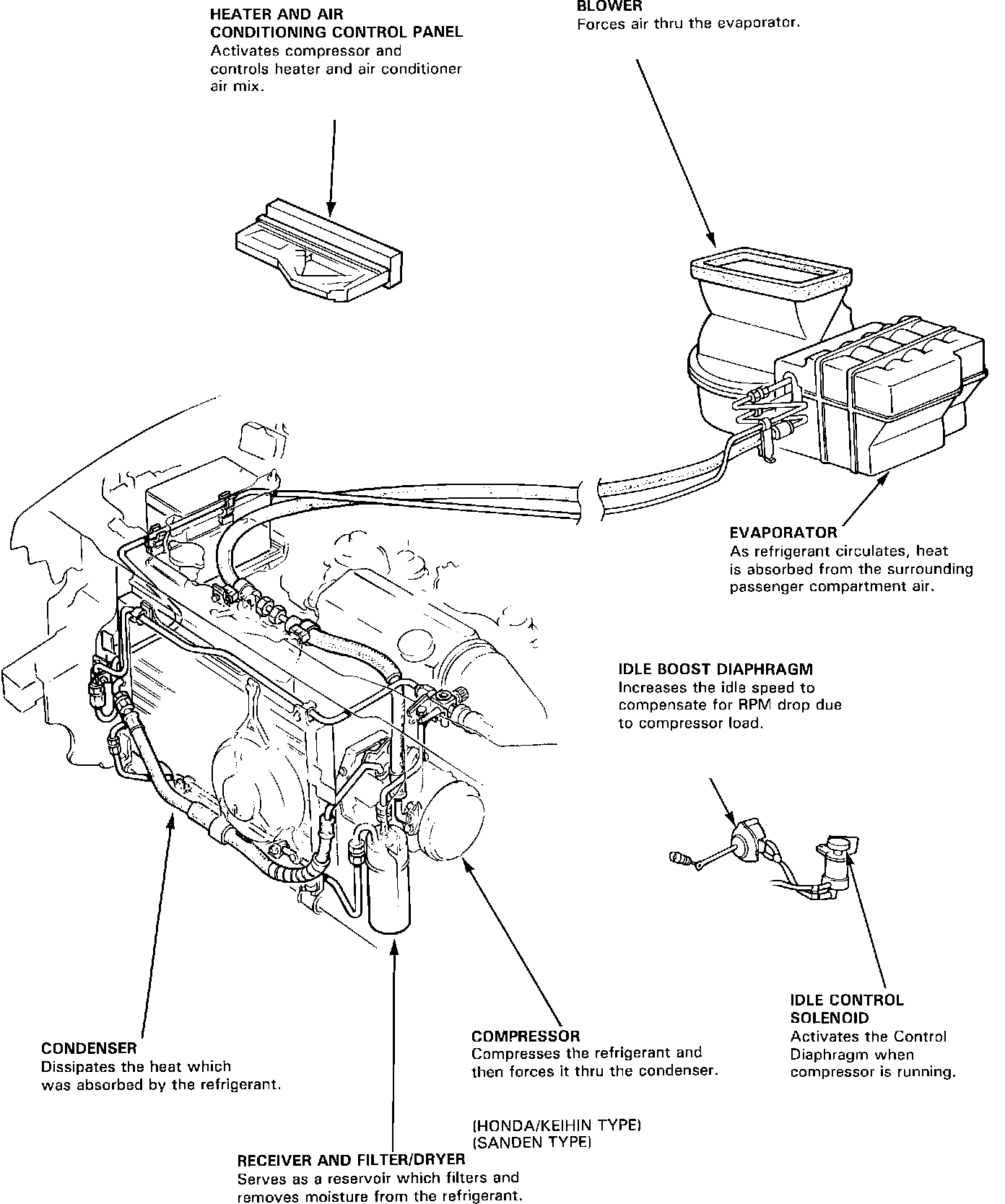

Fig. 24 System description, A/C.:
