Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1984
>>
Civic CVCC L4-1488cc 1.5L EW1, EW3
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
Fuse: Locations

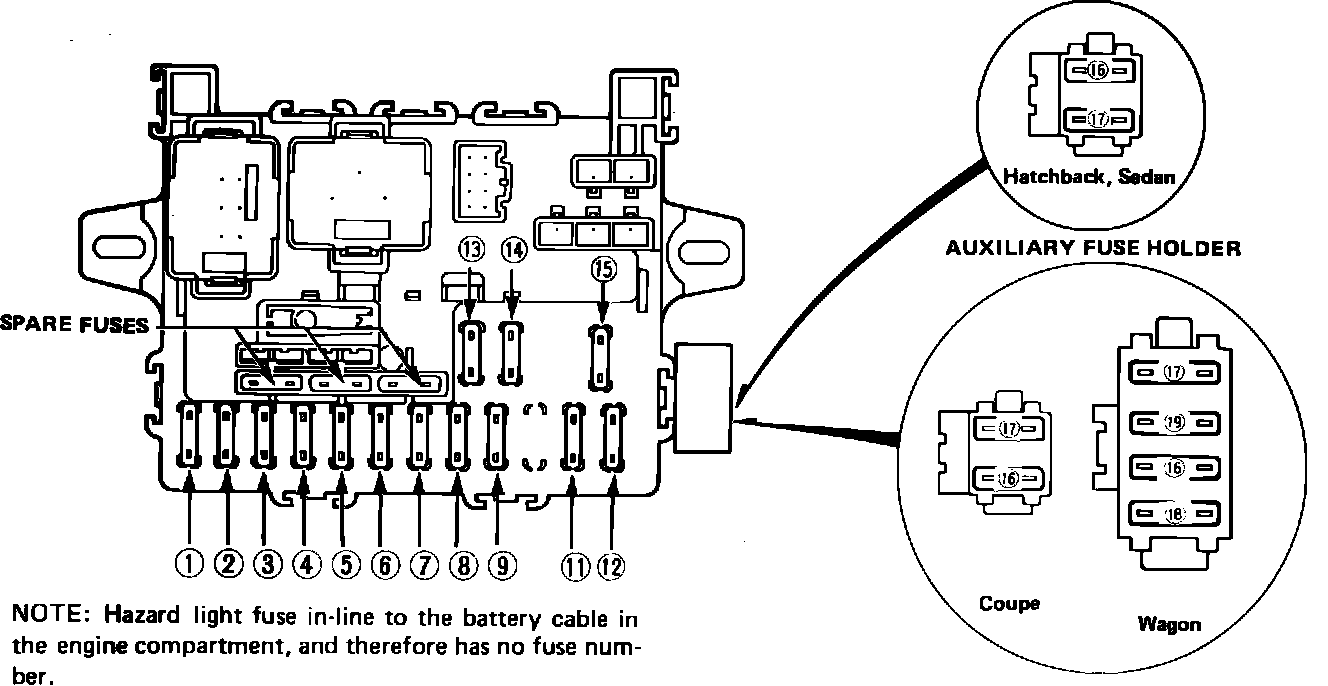

Fig. 3a Fuse Panel (Part 1 of 2). 1984 Civic Exc. CRX:

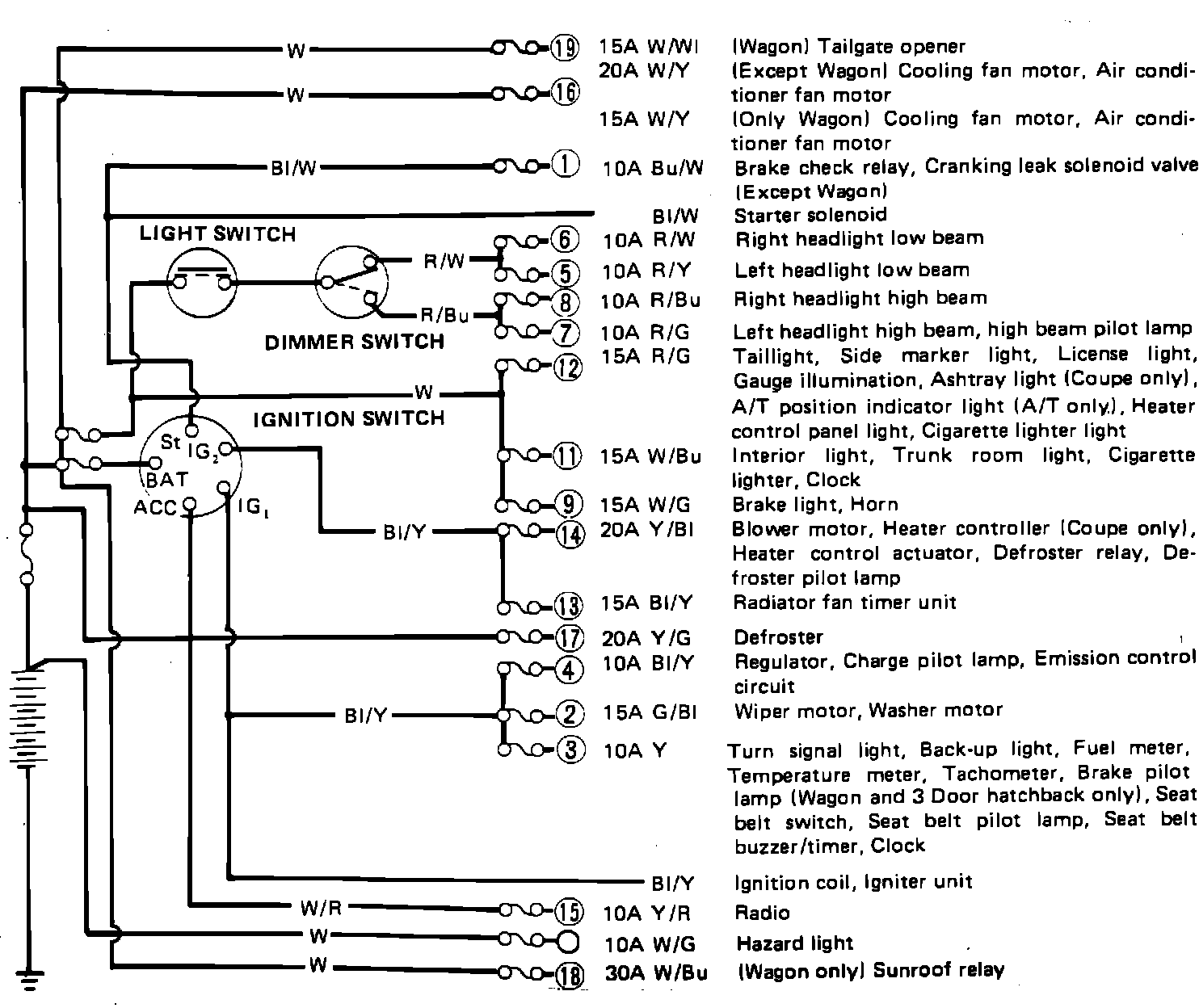

Fig. 3b Fuse Panel (Part 2 of 2). 1984 Civic Exc. CRX:
