Computers and Control Systems: Diagrams

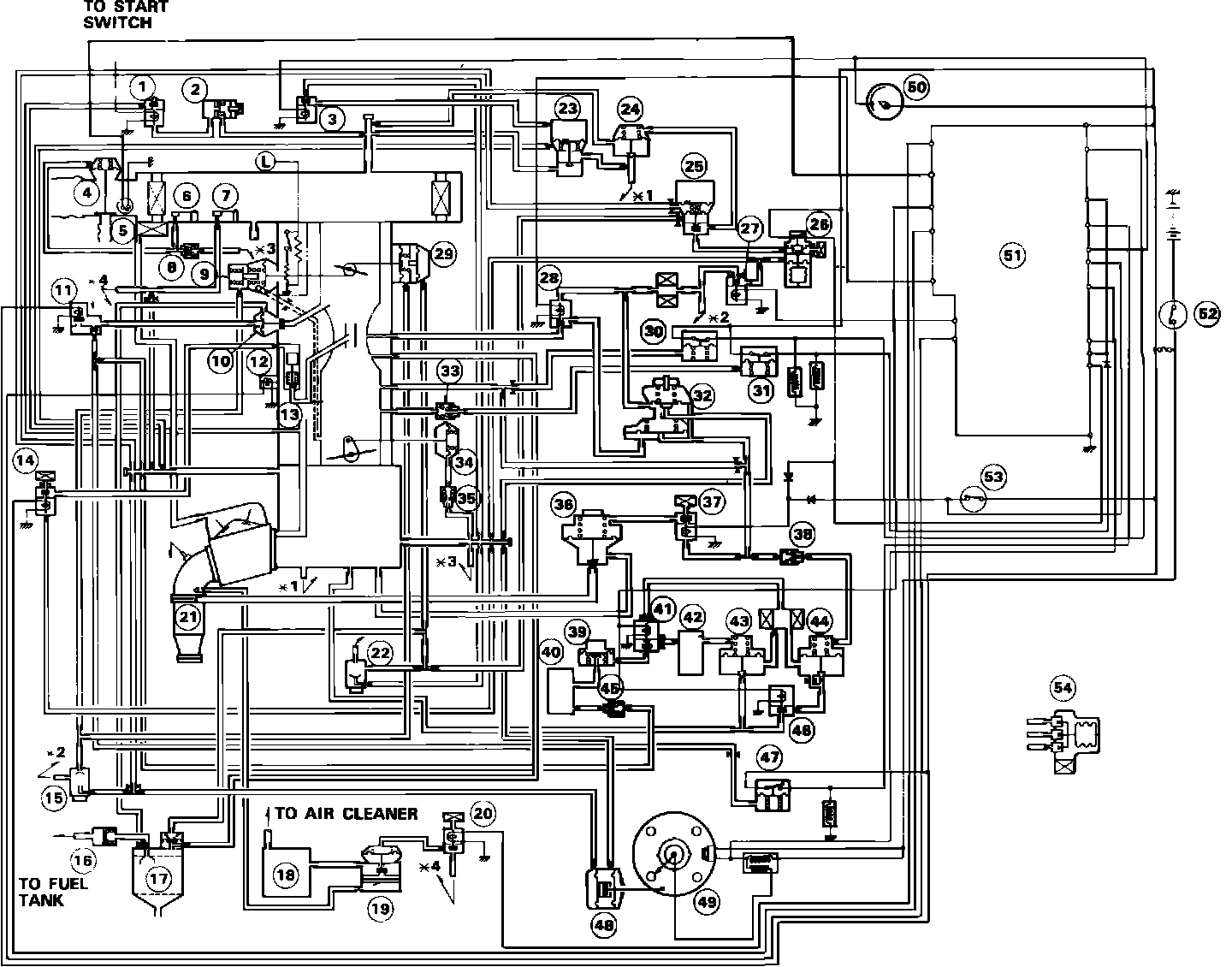

Fig. 103 Emission control vacuum hose routing.:



Fig. 102c Emission control vacuum hose routing.:
