Air/Fuel Mixture

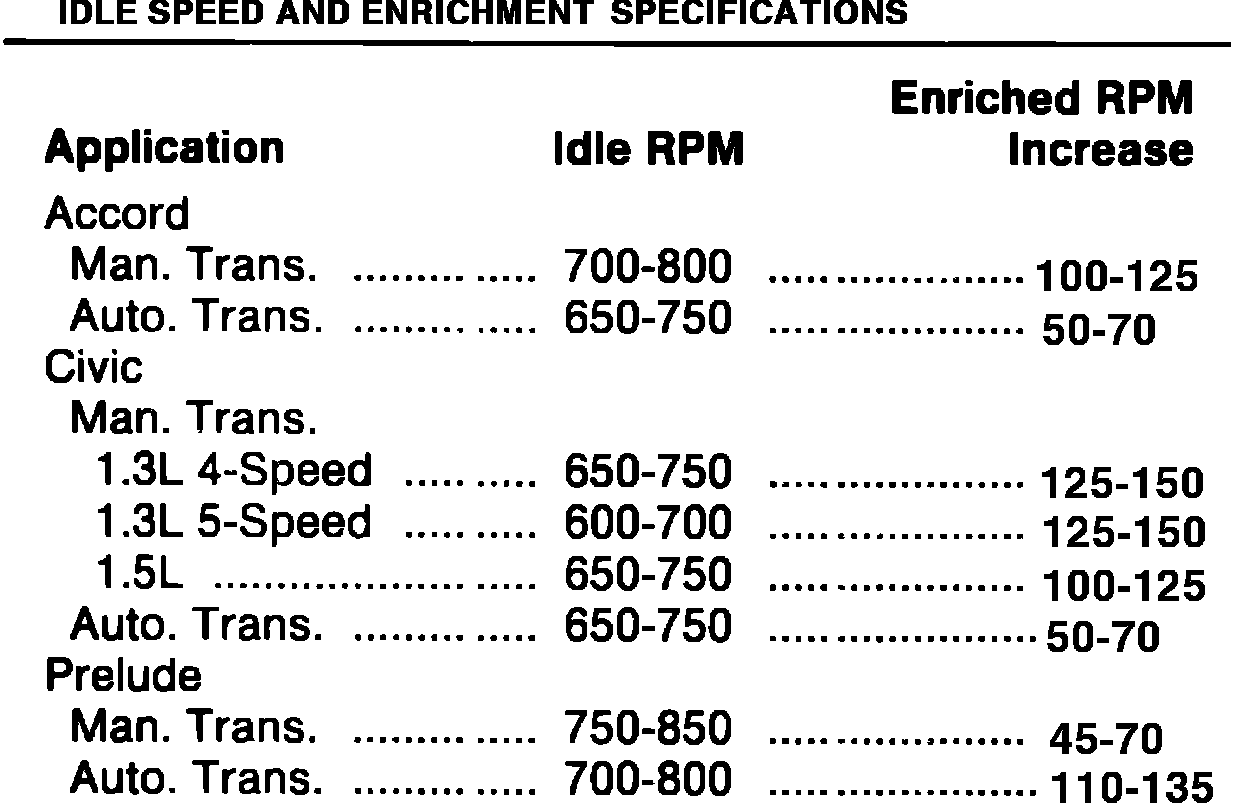

Fig. 3 Idle speed and enrichment specifications:

NOTE: On carbureted engines, idle mixture adjustment should only be performed after diagnosis has revealed no other faults, or if carburetor has been overhauled. A propane enrichment tool is necessary to accurately adjust idle mixture. See Adjustment section for procedure.
