Body - Expanded Application of Fender Repair Parts
MODEL AUTO APPLICATION See Text FILE UNDER Procedural BULLETIN NO. A84030051 ISSUE DATE FEB. 1984
Expanded Application of Fender Repair Parts (Supersedes Parts News A82042103)
In our continuing support of fender repairs, we've expanded the application of repair parts and kits to include the 1979 Accord and 1979 Civic. This bulletin provides easy access to parts numbers, model applications, and prices.
Please use normal parts ordering procedures.
Front Fenders
H/C PART NUMBER DESCRIPTION APPLICATION D/N
1049766 01611-634-670ZZ Fender R Front 75-79 Civic 1200 78.26
1049790 01612-634-670ZZ Fender L Front 75-79 Civic 1200 78.26
1049774 01611-657-670ZZ Fender R Front 75-79 Civic 1500 78.26
1049808 01612-657-670ZZ Fender L Front 75-79 Civic 1500 78.26
1049782 01611-671-670ZZ Fender R Front 76-79 Accord 87.01
1050277 01612-671-670ZZ Fender L Front 76-79 Accord 87.01
NOTE: The front fenders listed above are prepackaged in cartons of five. To minimize repackaging and the chances of shipping damage, please order in multiples of five whenever possible.
Fender Emblems
H/C PART NUMBER DESCRIPTION APPLICATION D/N
1051101 87140-634-600 Emblem FR Fender 75-77 Civic 1200 5.42
0659227 87104-634-670 Emblem FR Fender 78-79 Civic 1200 4.46
0664938 87140-659-000 Emblem FR Fender 75-79 Civic 1500 4.73
1011527 87104-671-010 Emblem FR Fender 76-79 Accord 3.93
Sidemarker Lights
H/C PART NUMBER DESCRIPTION APPLICATION D/N
0552356 33800-634-671 Light Assy RT 75-79 Civic 1200/1500 14.35
0552422 33850-634-671 Light Assy LF 75-79 Civic 1200/1500 13.67
0603852 33800-671-671 Light Assy RT 76-79 Accord 12.34
0603878 33850-671-671 Light Assy LF 76-79 Accord 11.74
PRICES SUBJECT TO CHANGE WITHOUT NOTICE
Fender Protection Moldings
H/C PART NUMBER DESCRIPTION APPLICATION D/N
0739714 75811-671-010 Protr R FR Fender 76-79 Accord 2.82
0739755 75816-671-010 Protr L FR Fender 76-79 Accord 2.82
Front Fender Well Trim
H/C PART NUMBER DESCRIPTION APPLICATION D/N
1067909 S8143-68900FR Trim Kit, Fr Fndr Well 76-79 Accord* 14.62
*With replacement fenders installed
Inner Fender Sets
H/C PART NUMBER DESCRIPTION APPLICATION D/N
0621458 61010-634-810 Inner Fender Set 75-79 Civic 1200 25.16
0629832 61010-657-811 Inner Fender Set 75-79 Civic 1500 24.30
0629782 61010-671-810 Inner Fender Set 76-78 Accord 27.98
0738468 61010-671-812 Inner Fender Set 79 Accord 27.98

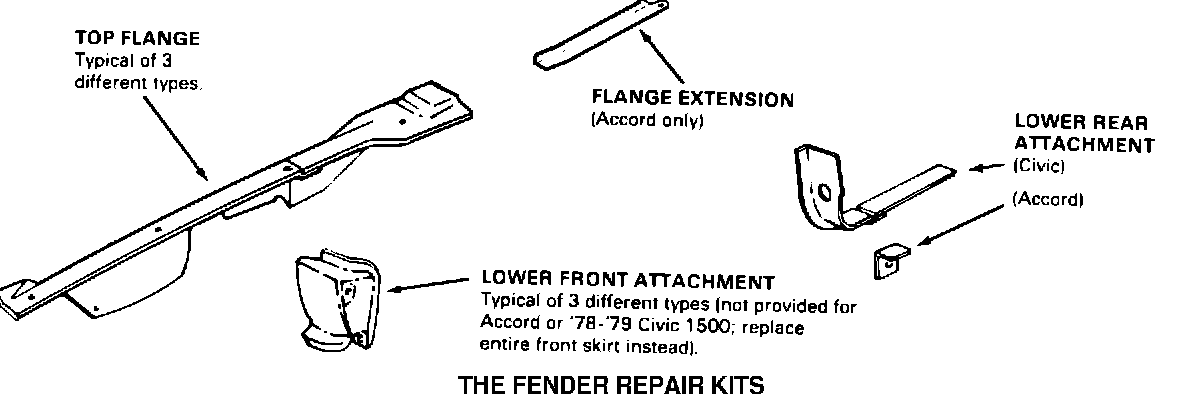

The Fender Repair Kits:
FENDER REPAIR KITS and SUB-KITS
The Fender Repair Kits listed below are used to reconstruct fender attachment points.
One kit contains parts to reconstruct all front fender attachment points for both sides of one car.
Front Fender Attachment Repair Kits
H/C PART NUMBER DESCRIPTION APPLICATION D/N
1102789 06610-634-670ZZ Fender Repair Kit 75-77 Civic 1200 27.78
1102797 06610-634-671ZZ Fender Repair Kit 78-79 Civic 1200 27.78
1102805 06610-657-305ZZ Fender Repair Kit 75-77 Civic 1500 34.70
1102813* 06610-657-315ZZ Fender Repair Kit 78-79 Civic 1500 20.84
1102821* 06610-671-305ZZ Fender Repair Kit 76-79 Accord 34.56
*Does not include lower front attachments; order front skirt separately (see Lower Front Attachment Sub-Kits on next page.)
The following sub-kits contain the parts to repair the indicated attachment points for both sides of one car.
Top Flange Sub-Kits
H/C PART NUMBER DESCRIPTION APPLICATION D/N
1102888 61022-634-305ZZ Fender Stay Set 75-79 Civic 1200 17.36
1102896 61022-657-305ZZ Fender Stay Set 75-79 Civic 1500 17.36
1102904 61022-671-305ZZ Fender Stay Set 76-79 Accord 17.36
Lower Front Attachment Sub-Kits
H/C PART NUMBER DESCRIPTION APPLICATION D/N
1102920 61023-634-670ZZ Lower Skirt Set 75-77 Civic 1200 7.63
1102938 61023-634-671ZZ Lower Skirt Set 78-79 Civic 1200 7.63
1102946 61023-657-305ZZ Lower Skirt Set 75-77 Civic 1500 15.05
Lower Front Attachment parts are not provided for Accord and 78-79 Civic 1500; replace the front skirt instead.
0657189 60860-671-010ZZ Lower Front Skirt 76-78 Accord 22.52
0732131 60860-671-020ZZ Lower Front Skirt 79 Accord 28.99
0653931 60861-657-670ZZ Lower Front Skirt 78-79 Civic 1500 21.06
Lower Rear Attachment Sub-Kits
H/C PART NUMBER DESCRIPTION APPLICATION D/N
1102953 61024-634-305ZZ RR Lower Set 75-79 Civic 1200/1500 5.09
1102961 61024-671-305ZZ RR Lower Set 76-79 Accord 1.40
Flange Extension Sub-Kit
H/C PART NUMBER DESCRIPTION APPLICATION D/N
1102979 61025-671-305ZZ Wshld Set 76-79 Accord 3.82
Should you require further information, please contact your assigned Parts Center.
