Doors - Window Regulators Repair

Model Applicable To File Under Bulletin No.

'84 Up to VIN 84-027
Civic AN...009452 BODY Issue Date
WAGON MAY 29, '84
Repair of Wagon Window Regulators

Window Regulator:

PROBLEM

Driving on rough roads may cause closed windows to open slightly.

CORRECTIVE ACTION

Install new shaft and drum in the window regulator and replace the window channel with the updated type.

1. Remove the window regulator

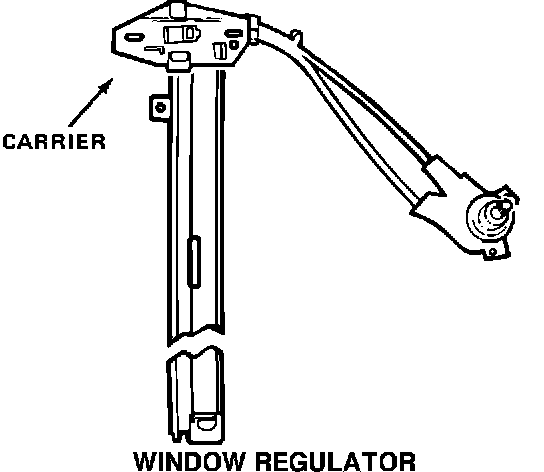

2. Using the window crank, position the regulator's carrier plate in the fully up position.

Housing Cover:

3. Remove the three bolts holding the regulator housing cover, then bend back the tabs and remove the cover.

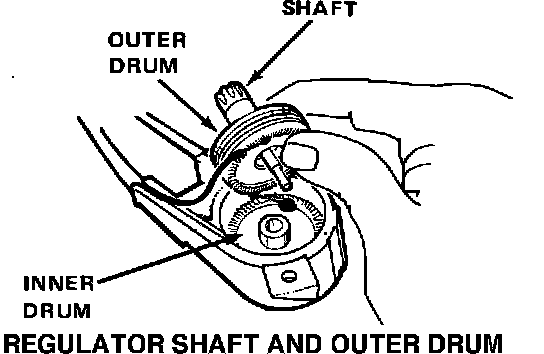

Regulator Shaft and Outer Drum:

4. Replace the regulator shaft and outer drum with the improved parts. Lubricate the drum before installation with Honda White Lithium Grease (H/C 1385780).

CAUTION: Do not remove the inner drum; it holds the regulator spring and cable in position.

5. Reassemble the regulator, then reinstall it.

6. Replace the window channel with the updated type.


PARTS INFORMATION

PART H/C P/N

Shaft 1808153 75312-SB6-003
Outer Drum - Right 1808161 75313-SB6-003
Outer Drum - Left 1808179 75323-SB6-003
Window Channel:
R. Front 1680602 75231-SB6-660
L. Front 1680610 75236-SB6-660
R. Rear 1681493 76231-SB6-000
L. Rear 1681501 76236-SB6-000

WARRANTY CLAIM INFORMATION

Operation Number: Left . . . . 826210 Right. . . 827210

Flat Rate Time: 0.9 hour for each window

Defect Code: 061

Failed Part H/C: 1808153

Contention Code: B02
