Emissions - Incorrect Vacuum Hose Routing Label
Model Applicable To File Under Bulletin No.
From 84-059
84 WAGON VIN AN...012938 ENGINE Issue Date
up to
AN...022844 OCT 29, '84

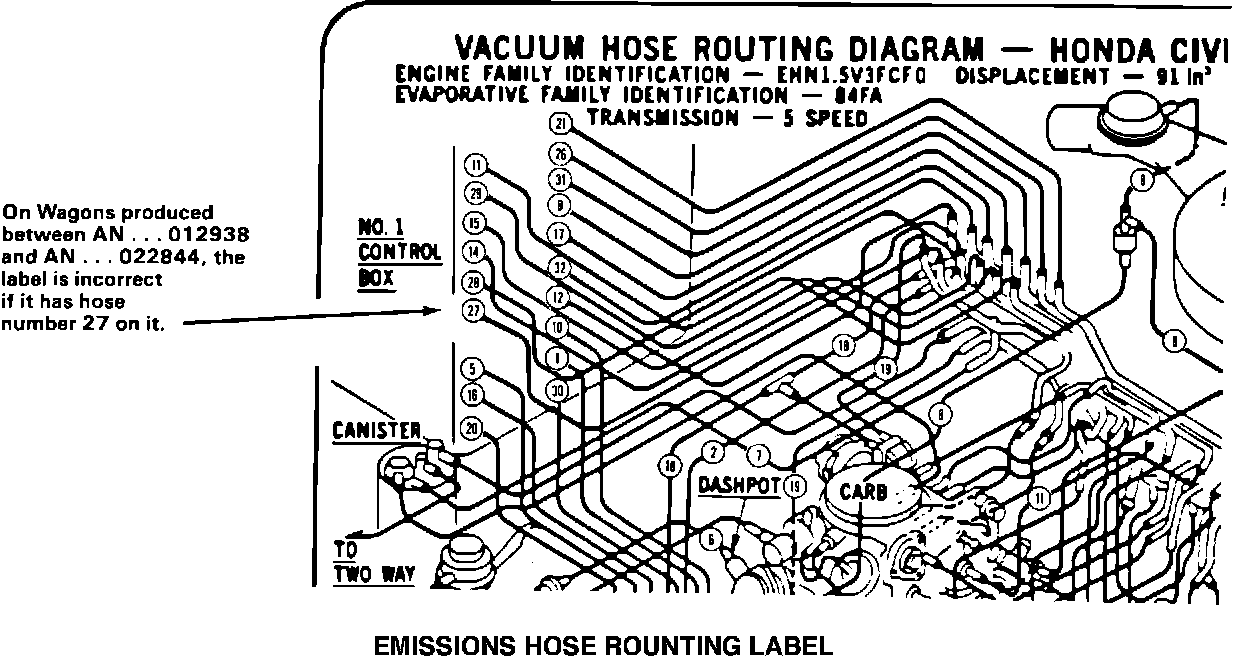

Emissions Hose Routing Label:
Emissions Hose Routing LabelPROBLEM
Some '84 Wagons in the VIN range above may have the wrong emissions hose routing label on the underside of the hood.
CORRECTIVE ACTION
Check the VINs of Wagons in stock and those that come in for service. If you find any within the above VIN range, check the vacuum hose routing label:
If the label has hose number 27 in the upper left corner, it's the wrong label for that car. Wipe any oil or dirt off the wrong label, then apply the correct label on top of it.
PARTS INFORMATION
Hose routing label for '84 Wagons from VIN AN...012938 on:
-5-speed: H/C 188559 P/N 17277-PEI-663
-Automatic: H/C 188561 P/N 17277-PEI-673
8.6 REJECTED PARTS
All parts will be inspected in accordance with the guidelines listed above. Any parts found to be in violation of one or more of the items below will be disallowed and a credit reversal will be issued. The inspection and decision of American Honda shall be considered final.
^ Parts found not to be defective.
^ Parts damaged from use of improper tools or procedures by the dealer.
^ Parts damaged in transit due to improper packaging.
^ Wrong part received.
^ Assembly received in disassembled or incomplete condition.
^ Parts tags received without the parts or claim.
^ Parts found to be a repairable assembly.
^ Parts found to be non-genuine or approved Honda parts.
^ Parts received with insufficient or incorrect documents.
^ Parts damaged due to vehicle abuse.
^ All parts claimed were not received.
^ Part not covered by warranty policy.
^ Insufficient or improper periodic maintenance.
Rejected items which are in normal operating condition will be returned to the dealer, freight collect. The respective claims will be disallowed or debited.
Rejected items which are not in normal operating condition will be held 30 days pending any dealer request for the return of the parts freight collect. After this time, parts will be disposed of. The respective claims will be disallowed or debited.
HONDA
WARRANTY PARTS RETURN SHEET
OCTOBER, 1984
PARTS TO BE RETURNED - ALL MODELS, ALL YEARS
ALTERNATOR ASSY
STARTER MOTOR ASSY
RADIO/TAPE PLAYER, SPEAKERS, ANTENNA, EQ/POWER BOOSTER
ALL ACCESSORIES - DEALER OR FACTORY INSTALLED
LUGGAGE CARRIERS AND ROOF RACKS
SHIPPING INSTRUCTIONS
1. Tag all parts with your dealer number, the warranty claim number, and repair date.
2. Enclose the white copy of the warranty claim in the orange envelope, (Honda-Net Dealers use photo copy of Terminal Claim Print Out.)
3. Tape the envelope to the box with AHM address showning.
4. Determine postage/freight and note on the claim form. (See Policy & Procedures Manual, Section 7.)
5. Add postage to box and mail to: AMERICAN HONDA MOTOR CO., INC. 100 W. Alondra Blvd, Gardena, CA 90247
ATTN: Warranty Inspection
1984 Driveability Improvements
For parts and warranty information, refer to the Service Bulletins listed.
Cars Affected Driveability Corrective Service
Problem Action Bulletin
Engine stalls during Install Kit 1 and Kit 2. ENGINE 84-012
'84 Accord within engine
warm-up, spark plugs Revised OCT 18, '84
number ranges: foul; engine runs rough or won't start
CAL 1000001 - 1015200 after frequent, short
LOW ALT stop/start cycles.
(Japan) 1500001 - 1536652
(Ohio) 1200001 - 1229827
ALL ALT 1900001 - 1902876
Spark plugs foul; Install Kit 2 only. (Kit 1 CAL 1015201 - 1027137
engine runs rough or is factory installed.)
LOW ALT
won't start.
(Japan) 1536653 - 1558367
(Ohio) 1229828 - 1258330
ALL ALT 1902877 - 1905166
Stalling at idle after Test and, if necessary, ENGINE 84-050
'84 Accord (all)
engine is warm. replace sticking
primary slow mixture cut-off solenoid as described in Bulletin.
Spark plug fouling Install cold-start ENGINE 84-013
'84 1.5 Civic within engine
(usually in # 1 cyl) driveability kit. Revised JUNE 19, '84
number ranges: during repeated, short duration, low speed driving in cold
LOW ALT M/T 1500001 - 1559601
weather.
and
ALL ALT A/T 1500001 - 1558236
M/T 1000001 - 1012575
CAL
A/T 1000001 - 1012615
Rough idle. Replace 2 deteriorated ENGINE 84-008
'83 Prelude up to engine
vacuum hoses.
numbers:
CAL ES1 - 1005498
49 ST ES1 - 1523335
HI ALT ES1 - 1900975
Poor acceleration Adjust choke unloader ENGINE 84-033
'84 Prelude (all 5-speed)
when cold; no re- as described in Bulletin.
sponse from engine beyond half throttle during the first part of warm-up.
Poor acceleration; little Adjust accelerator ENGINE 84-047
'84 Prelude (all automatic)
or no response on pump linkage as
part-throttle accelera- described in Bulletin.
tion during warm-up after cold start.
