Ignition - Hard Start, Stall After Start, Plug Fouling
85honda01
Model Applicable To File Under Bulletin No.
85-026
'84 - '85 Engine number ENGINE
CIVIC ranges listed Issue Date
MAY 3, '85
Cold Start/Driveability Improvements for '84 -' 85 Civics (Supersedes 84-013 dated JUNE 19, '84 and 84-025 dated APRIL 9, '84)
PROBLEM Hard starting, stalling immediately after starting, and spark plug fouling (usually in number 1 cylinder) during repeated, short duration, low speed driving in cold weather.
CORRECTIVE ACTION Install cold start/driveability kits as necessary, according to the car's engine number (refer to the engine number ranges below). Installation instructions are on the next three pages.
On Civics within
these engine 1984 1985
number ranges . . .
LOW ALT 1500001 - 1515648 1515649 - on 2500001 - 2506693
1.3 ALL ALT 1900001 - 1900757 1900758 - on 2900001 - 2900220
CAL 1000001 - 1003513 1003514 - on 2000001 - 2018193
LOW ALT N/A N/A HF 2500001 - 2582969
HF 2900001 - 2900309
ALL ALT 1500001 - 1559601 1559602 - on
All ex HF 2500001 - 2582945
1.5
HF 2000001 - 2019291
CAL 1000001 - 1012615 1012616 - on
All ex HF 2000001 - 2018203
. . . install the
appropriate drive- Kits 1 and 2 Kit 2
ability kit(s).
PARTS INFORMATION Kit 1 - for cars with manual transmission: H/C 1792845 P/N 01310-PE1-660
- for cars with automatic transmission: H/C 1792852 P/N 01310-PE1-670
Kit 2 - for all except HF: H/C 2054948 P/N 06173-PE0-660
- for HF: H/C 2054930 P/N 06173-PE1-700
WARRANTY COVERAGE Warranty coverage for correcting these problems on a customer request basis has been extended to 5 years or 50,000 miles, whichever comes first, from the date the car was first sold.
WARRANTY CLAIM INFORMATION Choose the appropriate operation number, flat rate time, and defect code for the kit(s) you installed:
Kit(s) Operation number Flat rate time Defect code
1 and 2 117203 For 1.3 engine: 1.0 hour 602
For 1.5 engine: 1.5 hours
2 119135 0.8 hour 603
Installation Instructions for Civic Cold Start/Driveability Kit 1
Steps 1 through 4 apply to 1.3 and 1.5 Civics.
Installation Instructions:
1. Install the number 78 jet in the choke opener vacuum hose.
Installation Instructions:
2. Remove hoses number 27 and 28 from the vacuum manifold at emission control box number 1. Fit a 1-1/2" length of vacuum hose on each end of the "U" tube, then fit the "U" tube and hoses on the vacuum manifold.

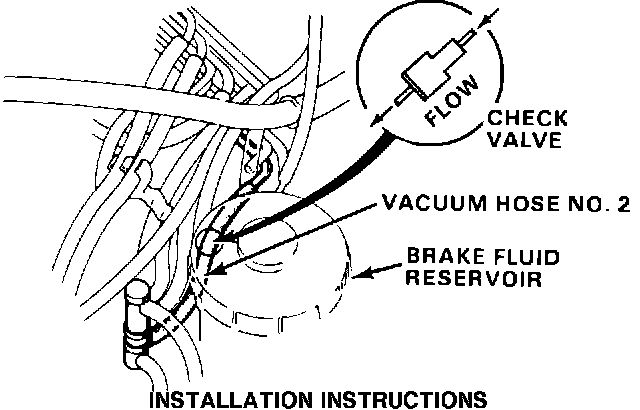

3. Cut vacuum hose number 2 in half and install the check valve in it.
Installation Instructions:
4. Apply the new vacuum hose routing label to the underside of the hood, right on top of the old label; clean any dirt and grease off the old label first. Make sure you install the correct label (green for California cars, black for others), then destroy the remaining label.
Steps 5 through 16 apply to only the 1.5 Civic.
5. Remove the distributor cap and seal, then remove the distributor and clamp it in a vise.

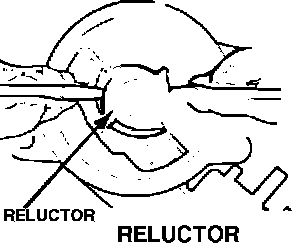

RELUCTOR:
6. Remove the rotor, then evenly pry off the reluctor with two screwdrivers.
(Note which side faces up. The reluctor must be reinstalled the same way later.)
7. Remove the vacuum advance diaphragm (2 screws).
8. Remove the entire breaker plate assembly (2 screws).
Breaker Plate Assembly:
9. Remove and discard the rubber cap, screws, rotor shaft, and thrust washer.

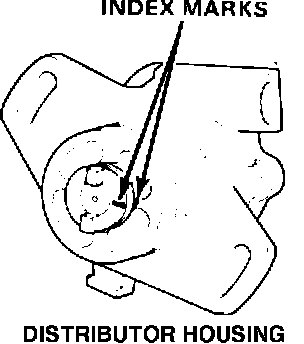

Distributor Housing:
10. Align the index mark on the distributor coupling with the one on the distributor housing.

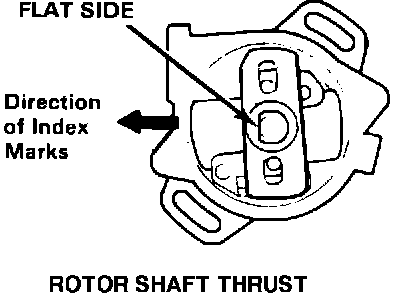

Rotor Shaft Thrust Washer:
11. Install the new rotor shaft thrust washer; then, with the index marks still aligned, install the new rotor shaft so its flat side faces the same direction as the index marks.

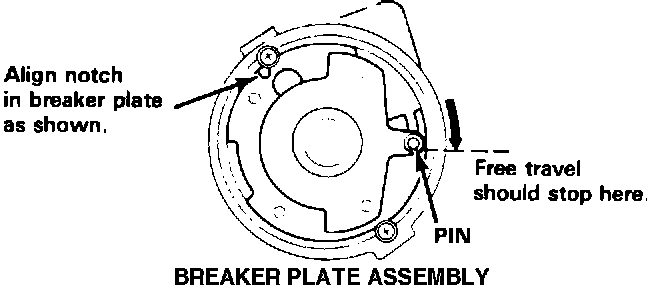

Breaker Plate Assembly:
12. Install the new rotor shaft screw and cap, the breaker plate assembly, then the vacuum advance diaphragm, using the two new screws supplied in the kit.

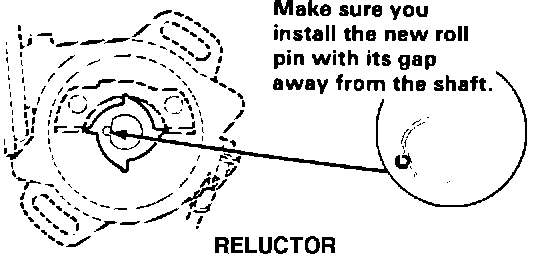

Reluctor:
13. Reinstall the reluctor using the new roll pin. Be sure the gap in the roll pin faces away from the rotor shaft, and that the reluctor is installed right side up.
14. Reinstall the rotor and replace the O-ring on the bottom of the distributor housing.
15. Reinstall the distributor and set the timing (refer to the underhood label for specifications).
16. Apply the distributor label to the vacuum advance diaphragm.
Installation Instructions for Civic Cold Start/Driveability Kit 2
1. Replace the existing spark plugs with the ones in the kit.
2. Remove the air cleaner.

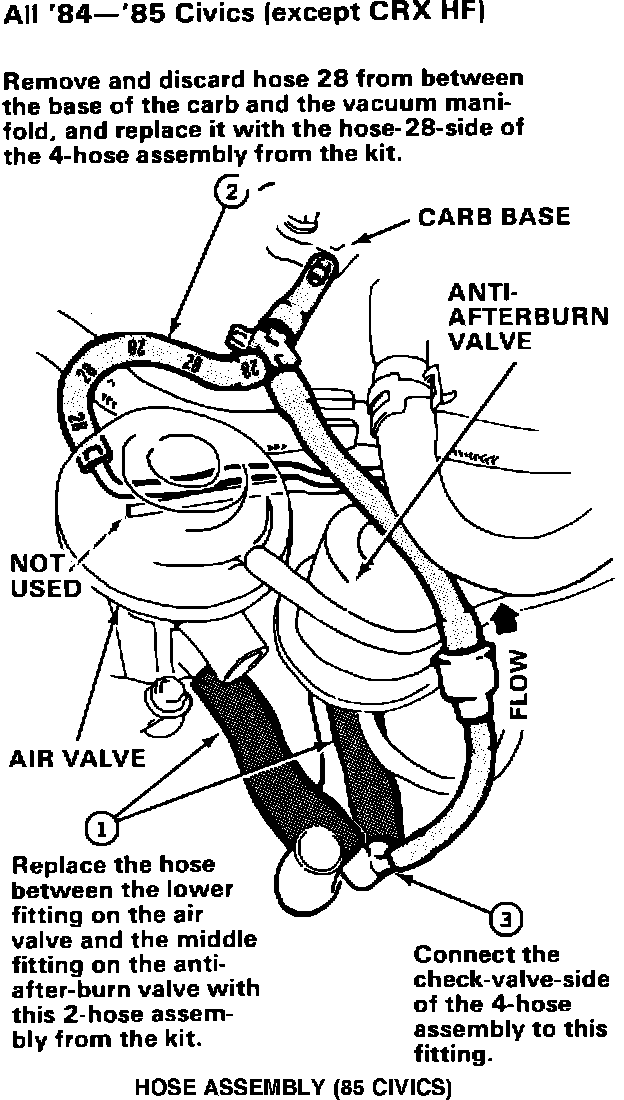

Hose Assembly (85 Civics):

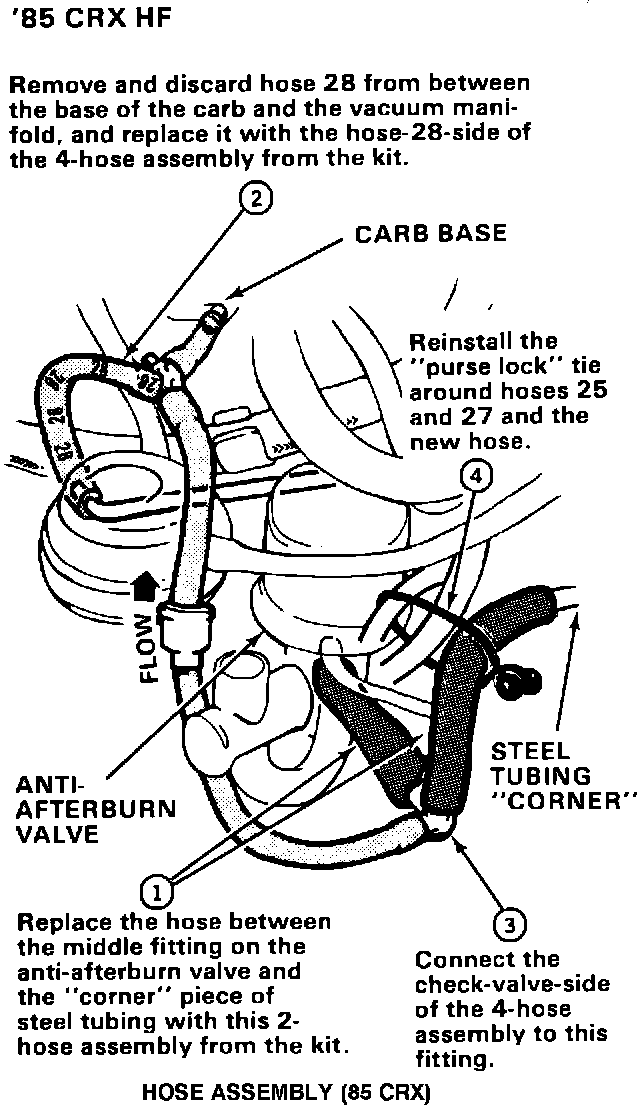

Hose Assembly (85 CRX):
3. Install the two hose assemblies as shown.
4. Make sure no vacuum lines are kinked, pinched, or disconnected, then reinstall the air cleaner.
5. Apply the new hose routing label to the underside of the hood below the main hose routing label.
6. Apply the spark plug label to the timing belt cover (next to the existing label on CRXs; on top of the existing label on other Civics).
7. Correct the spark plug listings in your Civic Service Manuals to show only NGK: BUR4EB-11 or ND: W14KR-S11:
^ In the '84 Manual, on pages 3-10 and 25-31, cross out the original plugs and write-in the new type
^ In the '85 Manual, on pages 3-8 and 25-29, the new type is already listed; just cross out all the others.
